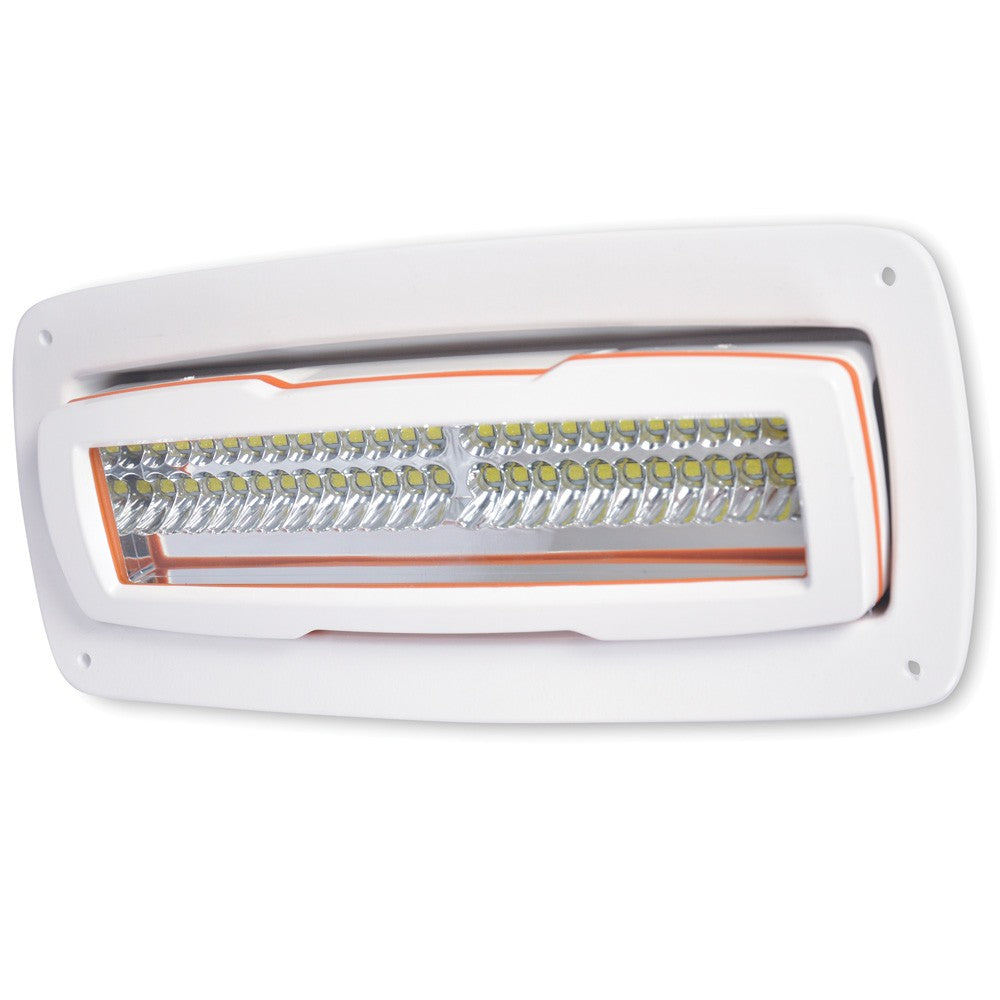

AC SceneStar Light Head with Recess Mount (LED 15000 Lumen)***

RECESS_MOUNT_PATTERN

Product_Sheet_ELSS-XLAC-RM

LED High Power Scene Lights provide industry-leading levels of light output with consistency and reliability. The SceneStar emergency scene light provides overall illumination even at elevated operating temperatures through optimized thermal management. The optics are designed to include a spot and flood pattern in one light. Solid-state electronics ensure a lifetime of peak performance. Contact a distributor today to learn about our fire apparatus scene lighting products.

Features

SceneStar Recessed LED scene lights feature:

• Recessed within the apparatus body panel
• Mounts with less than 2'' of depth
• 15,000 Lumens , Power: 220 Watts , Voltage: 120 or 240 VAC (must specify)
• Current: 1.8 amps (at 120 VAC), .9 amps (at 240 VAC)
• Customized optics to provide spot and flood in one light
• Low ultraviolet light - attracts less insects during nighttime operation
• Streamlined aesthetics in a compact design
• Standard color is white; black optional (note: handles and heat sink always black)
• 6 year warranty
• Serviceable construction (Sustainable LED technology)
• CE rating pending
• UL listed and Evaluated by UL to comply with the following standards:

UL 1598 – Standard for Luminaires

UL 8750 – Light Emitting Diode (LED) Light Sources for Use in Lighting Products

UL 153 – Standard for Portable Luminaires

Country of Manufacture            USA

Weight                                    10 lbs (4.5 kg)

Type                                        Scene Light

Brand                                     Extenda-Lite

Width                                     14'' (356 mm)

Height                                    4 1/4'' (108 mm)

Depth                                     5 5/8'' (142 mm)

Wattage                                          220

Volts                                         120/240 AC

Amperage                             1.8 (120 V) / .9 (240 V)
