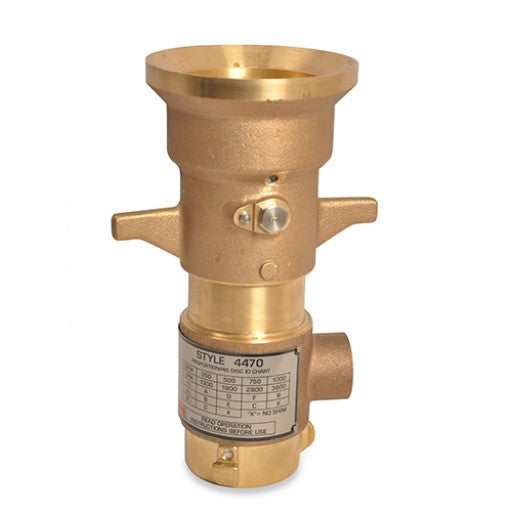

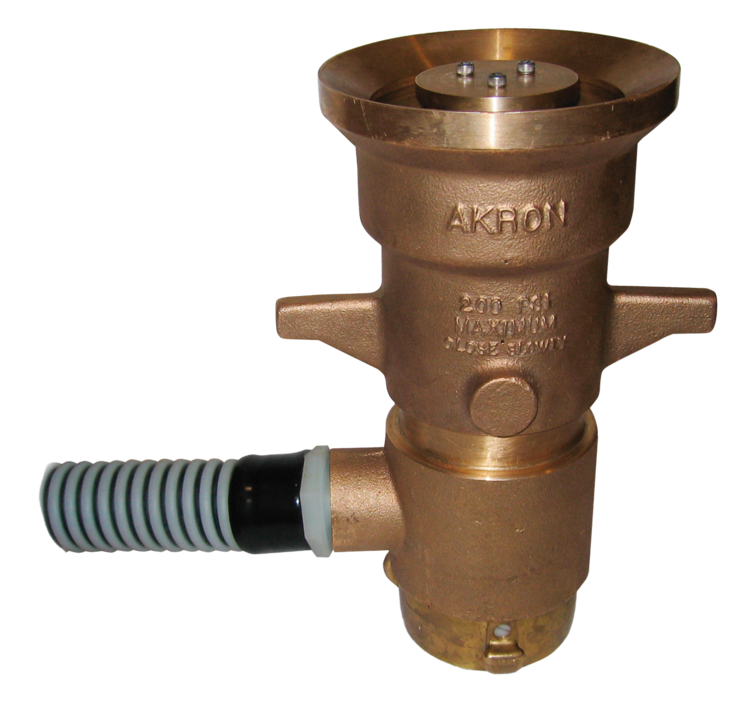

AkroFoam Master Stream 2 1/2 NH Nozzle with Pickup Tube 4470***

Product_Sheet_4470

The Akrofoam foam nozzles are self-educting master stream nozzles designed for educting foam at flow rates up to 1000 gpm (4800 lpm).

Features

These foam nozzles have the following features:

• Rugged/Corrosion Resistant Brass Construction
• Factory set at 500 gpm (1900 lpm) and field changeable to 350,750, or 1000 gpm (1325,2900, or 3800 lpm)
• Optional Foam Shutoff Valve, Drum Seal Kit & Quick Connect
• Metering capability of 1%, 3%, & 6% for 350 & 500 GPM, and 1% & 3% for 750 & 1000 gpm.

Specifications

Style	4470
Warranty
Weight	25 lbs (11.3 kg)
Type	Foam
Material	Brass
Brand	AkroFoam
Length	12 1/2" (318 mm)
Width	6" (152 mm)
Height	9 1/8" (232 mm)
Inlet	2 1/2'' (65 mm)
Flow (GPM)	350-500-750-1000
Flow (LPM)	1300-1900-2800-3800
