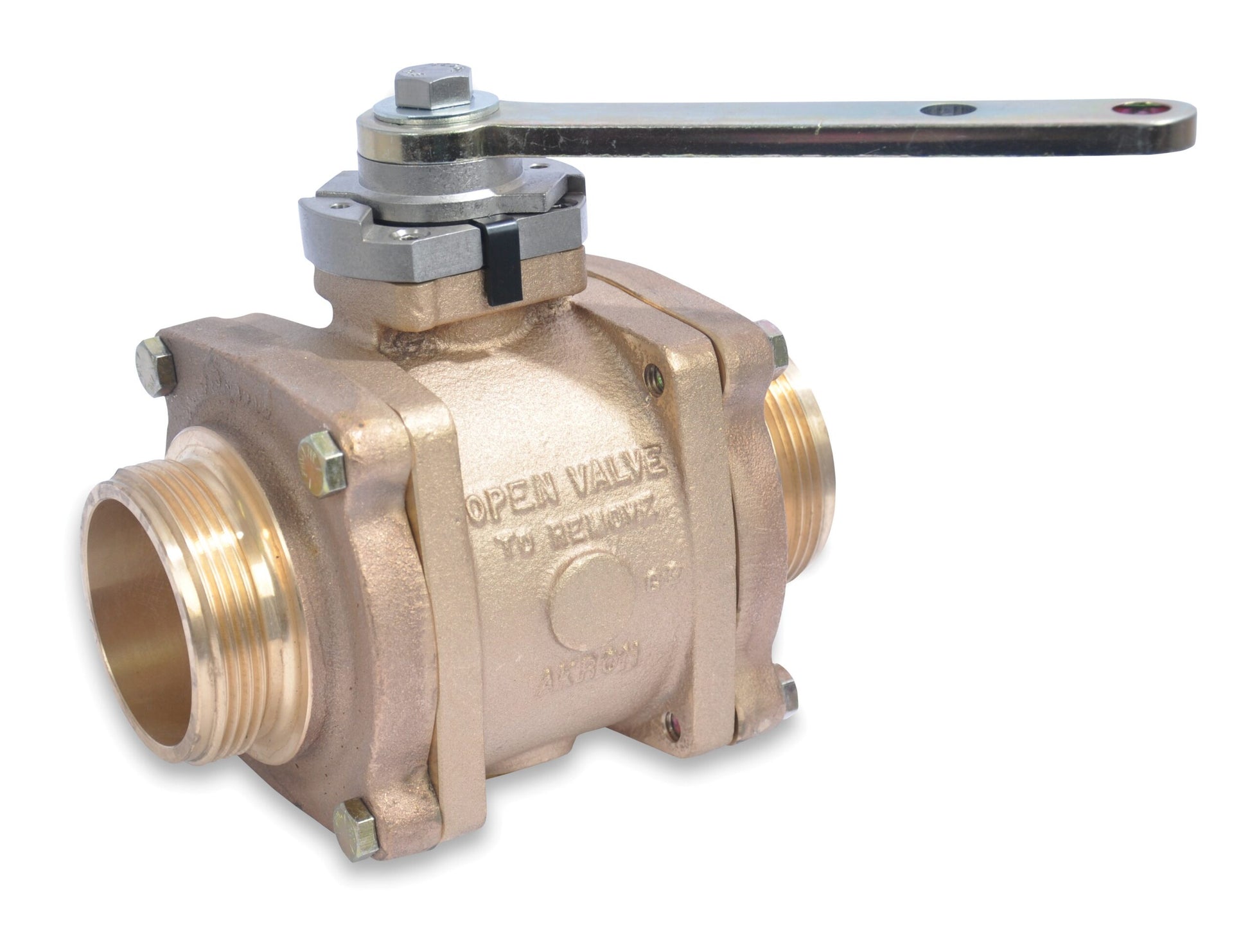

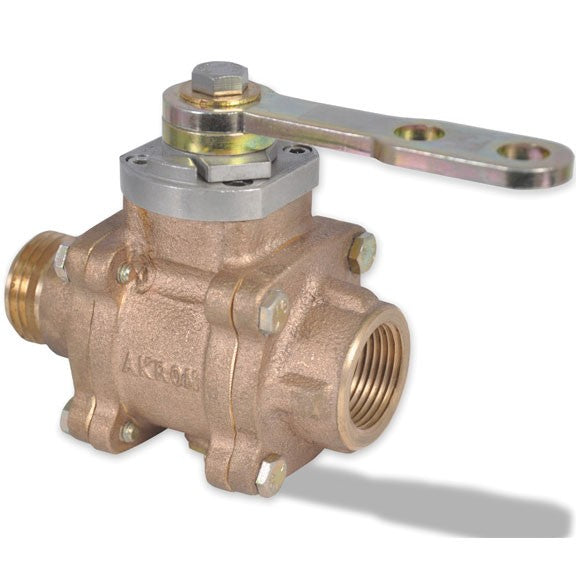

Akron 2" Generation II Swing-Out Valve 8820 complete

Generation_2_Swing-Out_Valve_Sheet

Valve Selection GuideValveGuide (1)

Self locking heavy-duty valve with a stainless steel ball designed for the harsh realities of today's fire service when water contaminants challenge a valve's sealing capabilities. This valve features the following:

• A single valve body that will accept a variety of actuators
• HydroMax TM technology: A patented ball geometry providing performance never seen before in swing-out valves

-with  M1-S  2"  male or P1-S 2" pipe thread Flanges

-with R1- handle

Please contact us for other options

Features

• 2" waterway
• Self-Locking valve
• 316 stainless steel ball with Hydromax technology
• High quality brass body
• Improve sealing & increased gating ability
• Flow optimization reduces turbulence while in the gated position and requires lower operating forces
• No lubrication or regular maintenance required
• Simple two-seated design (no O-Rings to cut or lose during assembly or maintenance)
• Wide range of available adapters
• Designed and tested to exceed NFPA requirements
• Cast, machined and assembled at our facilities in Wooster, Ohio

Actuator options:

• R1
• TS/TSC
