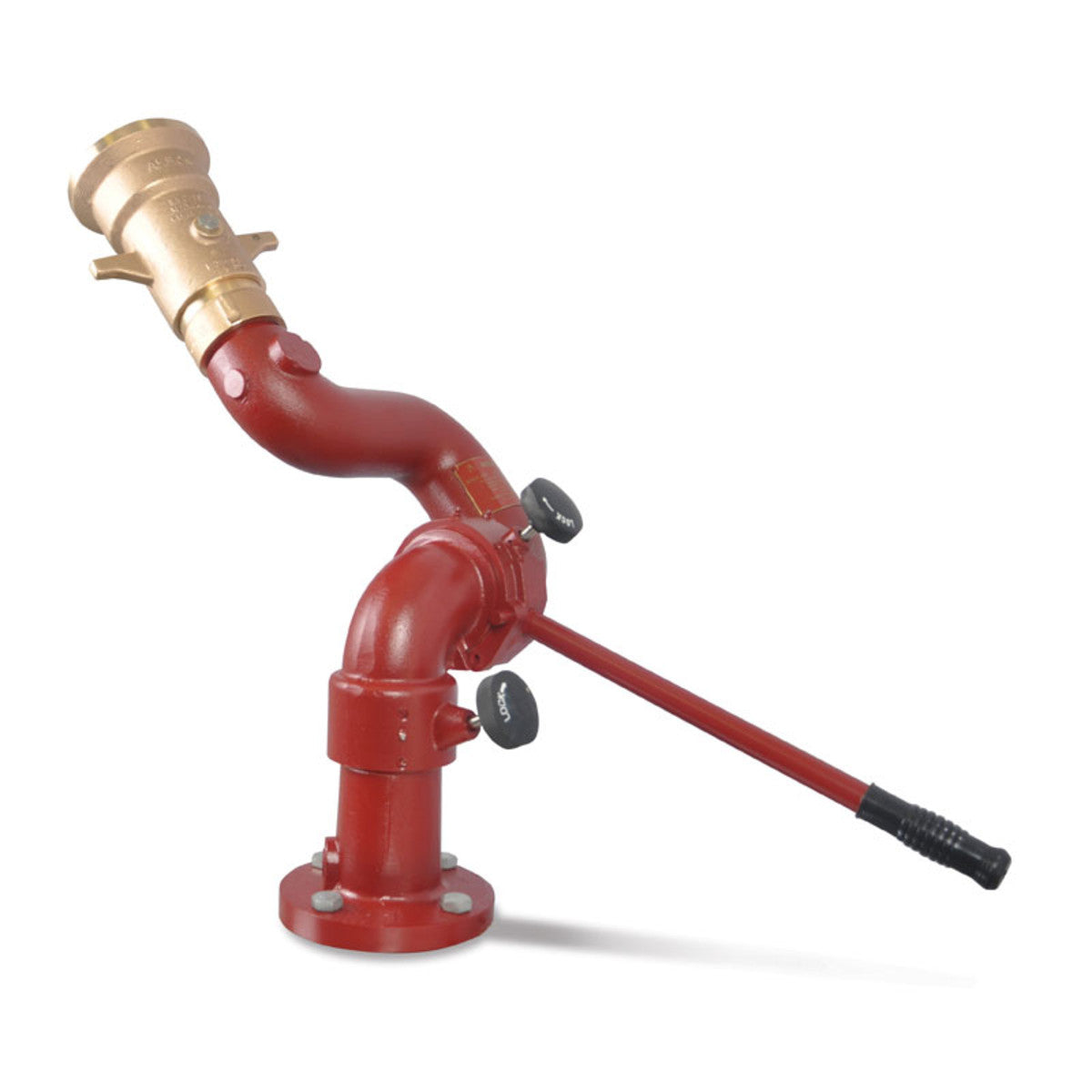

Akron Omega 3" Single Waterway Monitor, 3" or 4" Flange, 2 1/2 NH outlet 3526***

Product data sheet 3526 Omega

Akron Omega Single Waterway Monitors provide a simple tiller bar control and manual friction brake operation. The full 3" waterway delivers efficient flows up to 1250gpm. Good for water or foam delivery

Features of the Omega Monitor

• Full 3'' waterway
• Brass construction
• Cast-in turning vanes for more efficient flow
• 360° horizontal and 150° vertical travel
• Elevation 90° above to 60° below horizontal

Single waterway brass monitor with friction loss not to exceed 10 psi at 800 gpm. Monitor to be all brass construction with 3" waterway and 2 1/2" male discharge. The vertical travel lock shall incorporate a friction lock within the swivel joint. All elbows shall have cast-in turning vanes. Monitor shall have a vertical travel of 150° and horizontal travel of 360°

Specifications

Style:              3526

Certification(s)

Weight:          72 lbs (32.7 kg)

Type:              Industrial

Material:       Brass

Brand:           Omega

Width:           11 1/2'' (292 mm)

Height:           17'' (432 mm)

Depth:            32 3/4'' (Less nozzle) (832 mm)

Flange:           3"

Inlet:               2 1/2'', 3'' or 4'' FL (65, 75 or 100 mm)

Outlet:            2 1/2'' (65 mm)

Flow:             (GPM) 1250

Flow:             (LPM) 4800
