Akron StreamMaster II Manual Fire Monitor System 2000 GPM, 3481, 5170

StreamMaster II Manual Fire Monitor System 2000

Product_Sheet_3481

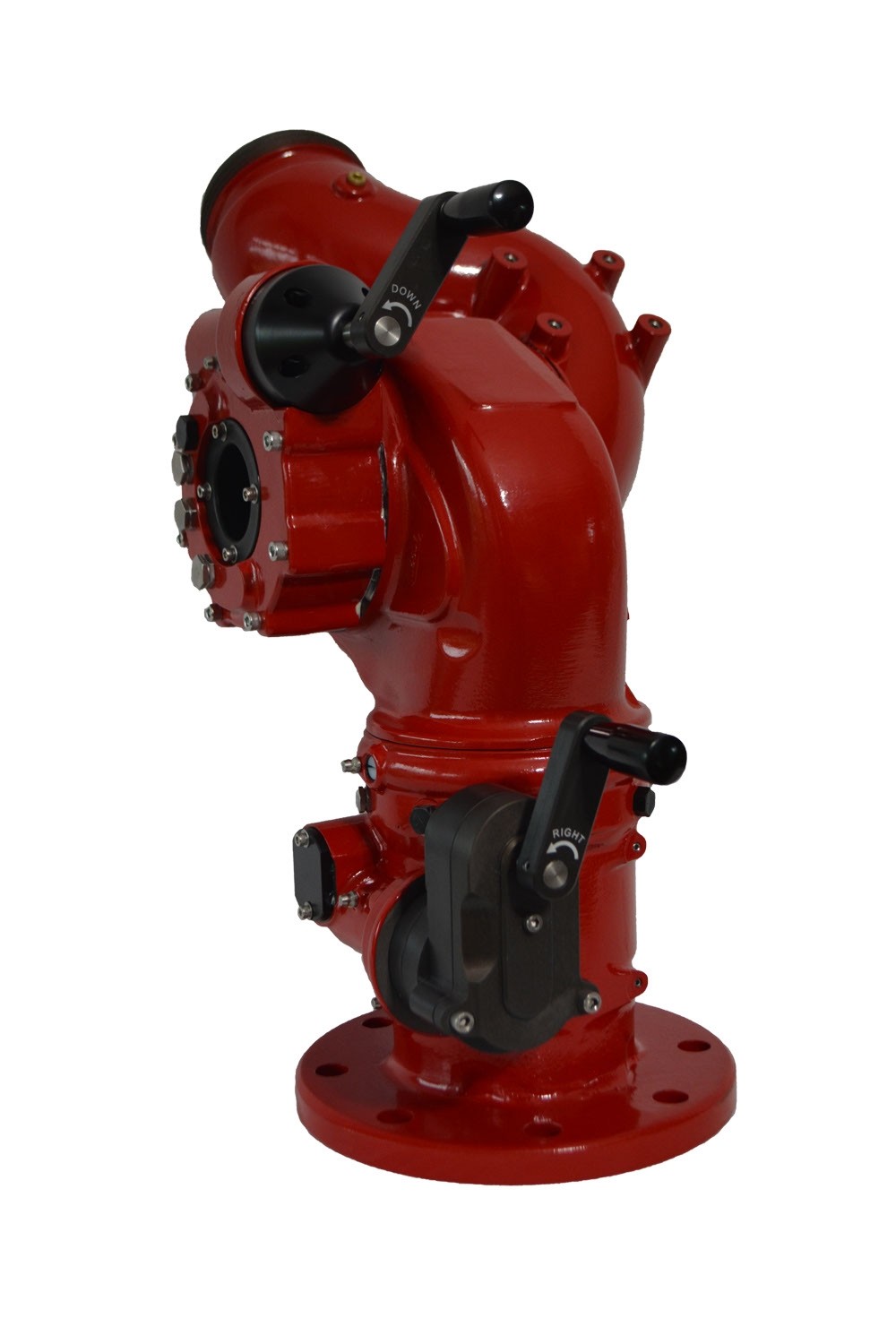

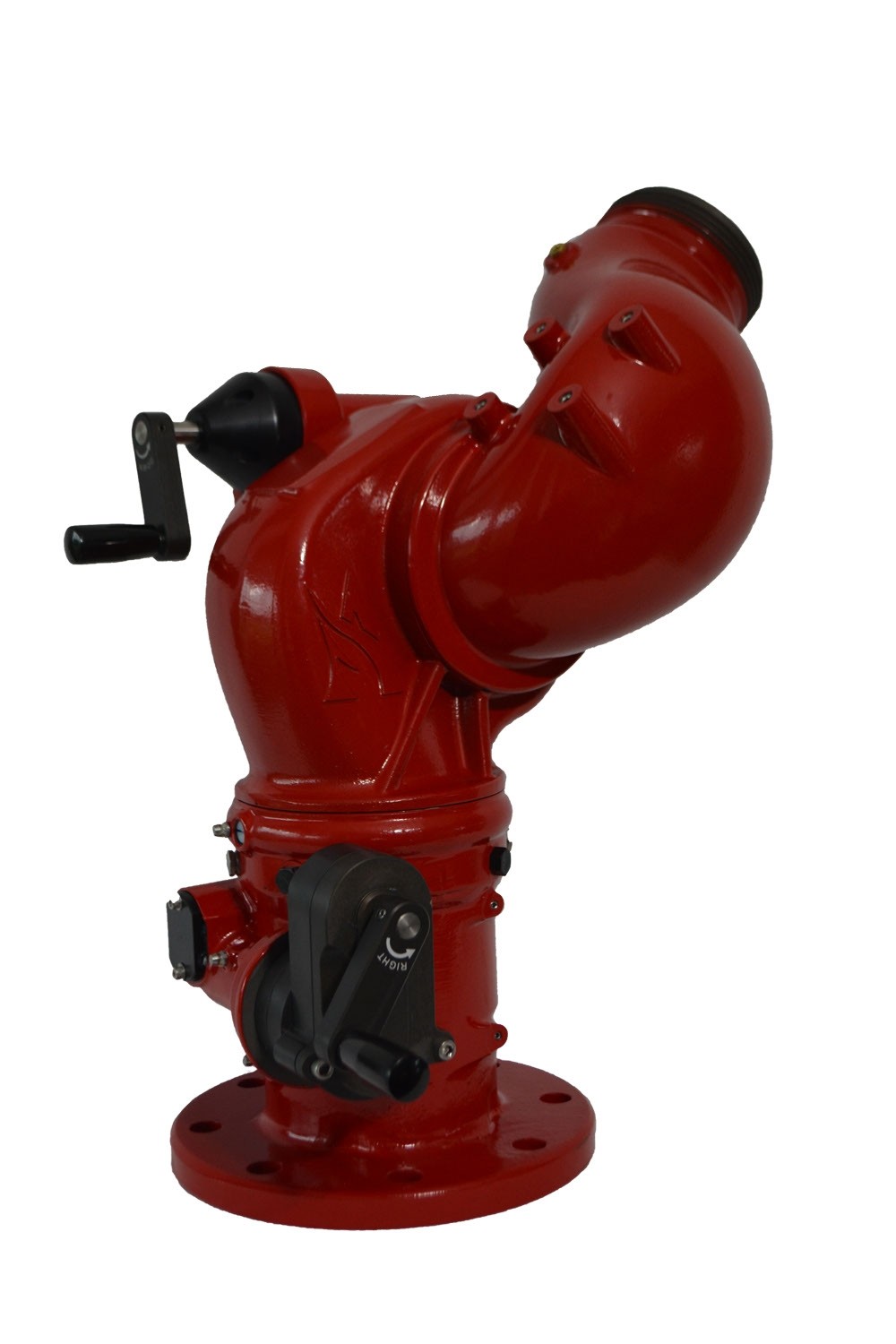

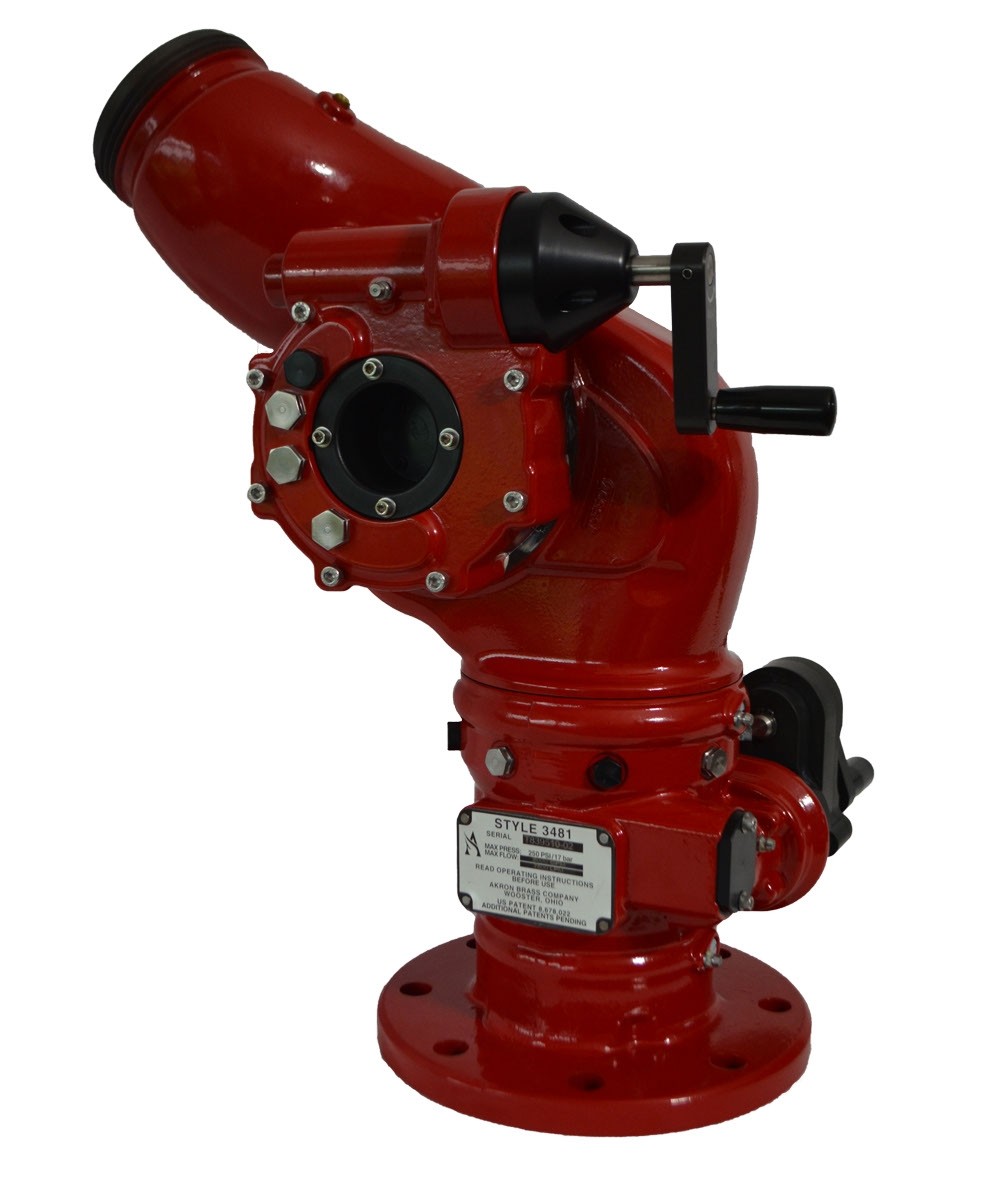

The Style 3481 StreamMaster™ II manual water cannon with its multiple patent pending design, provides efficient flows up to 2000 GPM (7600 LPM). These firefighting monitors have a unique waterway design that provide balanced forces on the outlet and reduced friction for the stream resulting in exceptional fire suppression performance over a wide range of flows in a compact configuration.

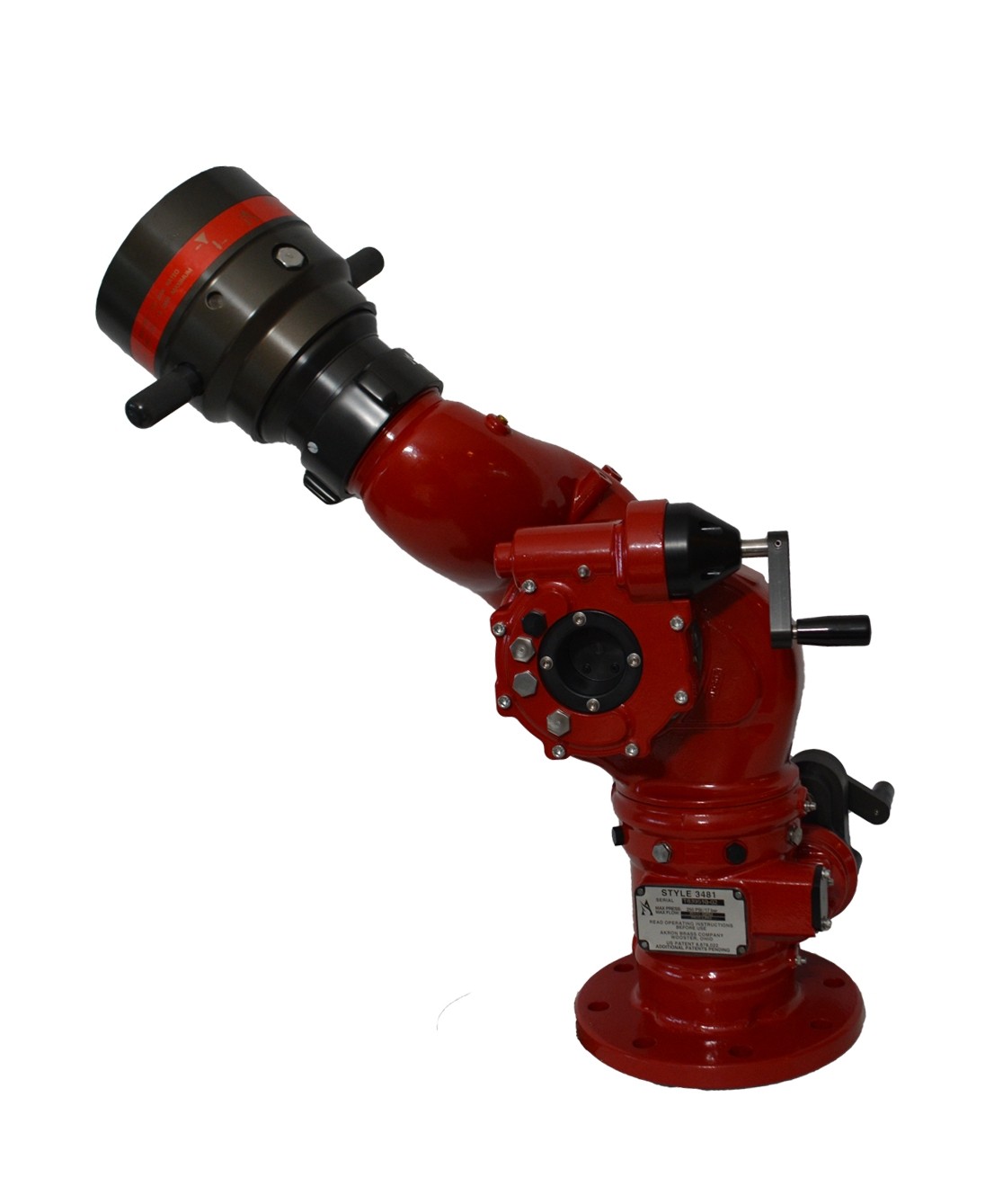

"Master Stream 5170 Nozzle not Included" but can be added to ordered

The 2000 gpm rated monitor is to be a manually operated single waterway monitor constructed of lightweight Pyrolite. The monitor shall have a 4” (100 mm), 150 lbs. flanged inlet and 3-1/2” (89 mm) NH outlet. The monitor shall have cast-in turning vanes in each elbow. The monitor shall have permanently mounted handwheels for both horizontal and vertical rotation. The monitor is not to exceed 17-1/2” (446 mm) high and 10-3/4” (273 mm) wide. The vertical travel shall be from 45° below to 90° above horizontal with adjustable stops at -15° and +45°. The horizontal rotation shall be 355° with physical stops at ±45°, ±90°, ±135° and at ±157°.

• Compact industry-leading operating envelope (10.5", 267 mm)
• Lightweight Pyrolite construction
• Rotation range 355°
• Elevation range +90°, - 45°

• Style	3481
  Warranty
  Weight	33.3 (15.1 kg)
  Material	Pyrolite
  Brand	StreamMaster
  Width	10 1/2'' (267 mm)
  Height	17 1/2'' (446 mm)
  Inlet	4" 150 lb. flange (Optional 3" flange) (DN100 PN16 flange)
  Outlet	3 1/2'' Male (Optional 2 1/2" Male) (89 mm (Optional 64mm))
  Flow (GPM)	2000
  Flow (LPM)

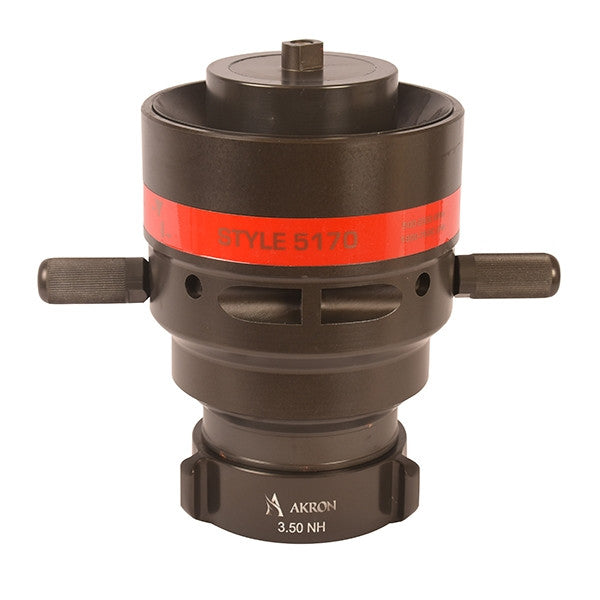

• 5170 Stream Master
• Designed for flows from 500 to 2000 gpm (1900-7600 lpm) - at an operating pressure of 80 psi (5.5 bar)
  • Pyrolite
  • Manual Pattern Control
  • 500-2000 gpm (1900-7600 lpm) flow - 500-1500 gpm (1900-5700 lpm) Optional flow
  • 3 1/2" (89 mm) Inlet (NH OR NPSH ONLY)
  • Fixed Teeth
  • 9 1/8" (232 mm) long
  • 15 -1/4 lbs. (7.0 kg)
• 3499 Stacked Tip

• Features

  Stacked Tips for a Smooth Bore Nozzle Flow
  - Pyrolite
  - Standard orifices 2-1/4" x 2-1/2" x 2-3/4"
  - Optional orifices 2" x 2-1/4" x 2-1/2"
  - Top Tip with 2-1/2" NH Male Thread

  AkroFoam Master Stream Nozzle with Pickup Tube

  These foam nozzles have the following features:

  - Rugged/Corrosion Resistant Brass Construction
  - Factory set at 500 gpm (1900 lpm) and field changeable to 350,750, or 1000 gpm (1325,2900, or 3800 lpm)
  - Optional Foam Shutoff Valve, Drum Seal Kit & Quick Connect
  - Compatible with Style 737 Foam Tube for increased aspiration
  - Metering capability of 1%, 3%, & 6% for 350 & 500 GPM, and 1% & 3% for 750 & 1000 gpm.
