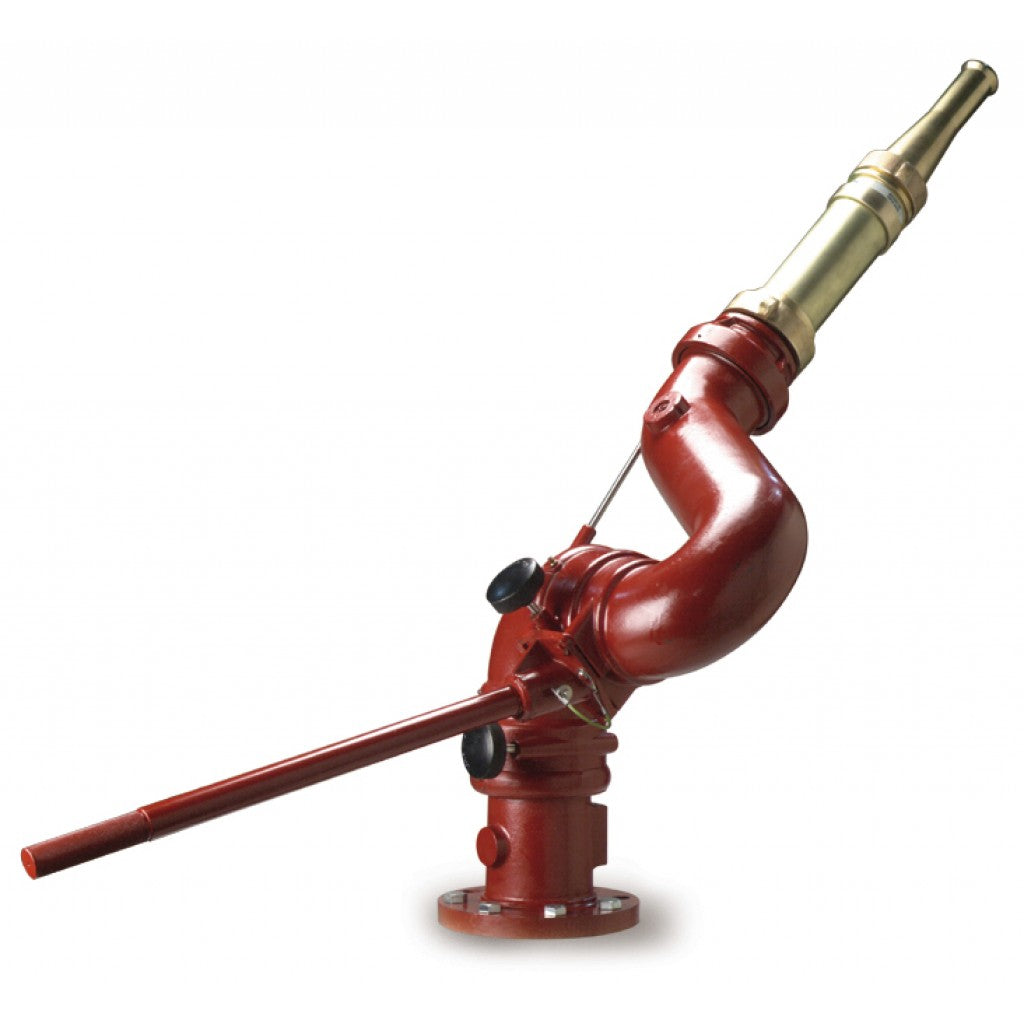

Apollo 4'' Single Waterway Monitor, 3436 as Pictured***

Product_Sheet_3436  Apollo

Akron Apollo Single Waterway Monitors provide a simple tiller bar control and manual friction brake operation. The full 4" waterway delivers efficient flows up to 2000gpm.

Features

• Designed for fixed installations in non-corrosive environments
• Durable lightweight Pyrolite construction
• Cast-in turning vanes in each elbow for more efficient flow and improved stream performance
• 360° horizontal and 150° vertical travel
• Elevation 90° above to 60° below horizontal
• A friction lock on both the vertical and horizontal travel
• Built-in pressure gauge and gauge guard
• Gas spring for better balance with various nozzle weight

-4" water way

-3 1/2 out let NH

-4" flange

-3 1/2 to 2 1/2 NH Discharge Pipe 3488

-Designed with built-in Fins to maximize reach on any monitor.

-2 1/2 to 1 1/2 Brass outlet 0489

• Straight tip nozzle
• Available in cast or chrome
• 2 1/2'' inlet NH
  • 1 1/2'' standard orifice
