AutoFoam Around-the-Pump FSB series Class B Foam

AutoFoam Around-the-Pump FSB series Class B Foam

$11,360.00 USD
$11,360.00 USD
Sale Sold out
FSB Options
Configuration
The TFC400 models are for use with two foam tanks and include the 3-valve electric ABF* selector to provide automatic flush control and electronic A or B tank selection. A flush button with LED indicator and A/B button with foam A and foam B indicator LEDs are added to operate the ABF* selector.

tfc400_product_image

AutoFoam Around-the-Pump

FoamPro-Foam-Solutions-Catalog

fsb100 Product Manual

Complete Automatic Proportioning for Class B Foam

The AutoFoam around-the-pump system provides complete automatic proportioning for Class B foam. The operator selects a foam percent mixture and the solution provides a consistent foam solution at all discharges regardless of water flow fluctuations. A microprocessor controls the proportioning valve to automatically maintain accurate control over foam concentrate flow rates. The operator can override automatic operation by using the manual override buttons to control the proportioning valve. All operations, programming, and calibration are accomplished using the control module. Calibration for the system is stored in memory on each of the major components. This allows for the replacement of components without recalibration of the system.

System Features

  • Push button control
  • Flow totaling for both foam concentrate and water
  • Powers-up at the previous proportioning percent
  • Manual override
  • Remote Auto/Off switch (Optional)
  • Built-in diagnostics

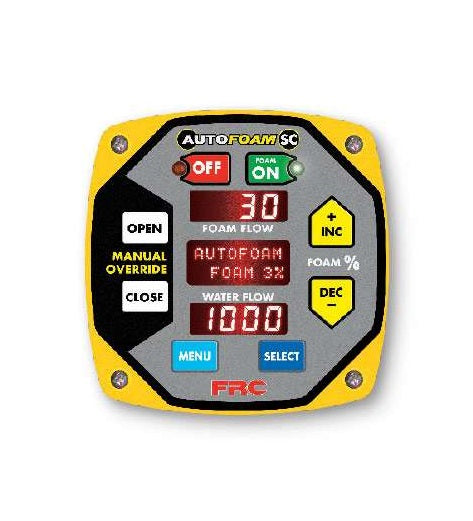

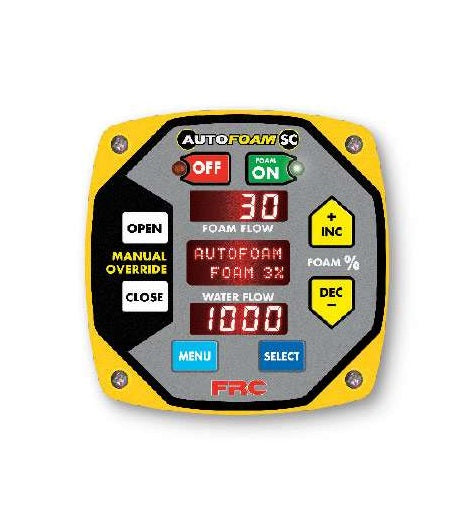

Control Module Features

  • Current water flow
  • Total amount of foam concentrate flow
  • Foam concentrate left in tank (input required from TankVision display)
  • Percent the valve is open
  • Stored faults with date and time using the INC and DEC buttons to scroll

Options

  • Multiple discharge sensors
  • Flow rates displayed in LPM
  • Remote Auto/Off switch

Ideal for Use On

  • Municipal Fire Apparatus
  • Airport Rescue and Fire Fighting Apparatus
  • Industrial Fire Apparatus
  • Compressed Air Foam Systems

System Diagram

Foam Output

Foam Concentration FSB015 FSB030 FSB060 FSB120 FSB240
Max. flow rate in gpm (LPM) 15 (60 LPM) 30 (115 LPM) 60 (230 LPM) 120 (460 LPM) 240 (910 LPM)

System Capacity

Foam Concentration FSB015 Maximum Water Flow gpm (LPM) FSB030 Maximum Water Flow gpm (LPM) FSB060 Maximum Water Flow gpm (LPM) FSB120 Maximum Water Flow gpm (LPM) FSB240 Maximum Water Flow gpm (LPM)
1.0% 1500 (5678) 3000 (11355) 6000 (22710) 12000 (45420) 24000 (90840)
3.0% 500 (1893) 1000 (3785) 2000 (7570) 4000 (15141) 8000 (30283)
6.0% 250 (946) 500 (1892) 1000 (3785) 2000 (7570) 4000 (15141)

AutoFoam SC Attack Capability

Class B Foam Concentration
Hydrocarbon @ 0.10 gpm/sq. ft ( 0.37854 LPM/sq. m)
Foam Concentration FSB 015 sq. ft (sq. m)sq. ft (sq. m) FSB030 sq. ft (sq. m) FSB060 sq. ft (sq. m) FSB120 sq. ft (sq. m) FSB240 sq. ft (sq. m)
1.0% 15000 (1394) 30000 (2787) 60000 (5574) 120000 (11148) 240000 (22297)
3.0% 5000 (465) 10000 (929) 20000 (1858) 40000 (3716) 80000 (7432)
6.0% 2500 (232) 5000 (465) 10000 (929) 20000 (1858) 40000 (3716)
Class B Foam Concentration
Polar Solvent @ 0.10 gpm/sq.ft ( 0.757 LPM/sq.m)
Foam Concentration FSB 015 sq. ft (sq. m) FSB030 sq. ft (sq. m) FSB060 sq. ft (sq. m) FSB120 sq. ft (sq. m) FSB240 sq. ft (sq. m)
3.0% 2500 (232) 5000 (465) 10000 (929) 20000 (1858) 40000 (3716)
6.0% 1250 (116) 2500 (232) 5000 (465) 10000 (929) 20000 (1858)

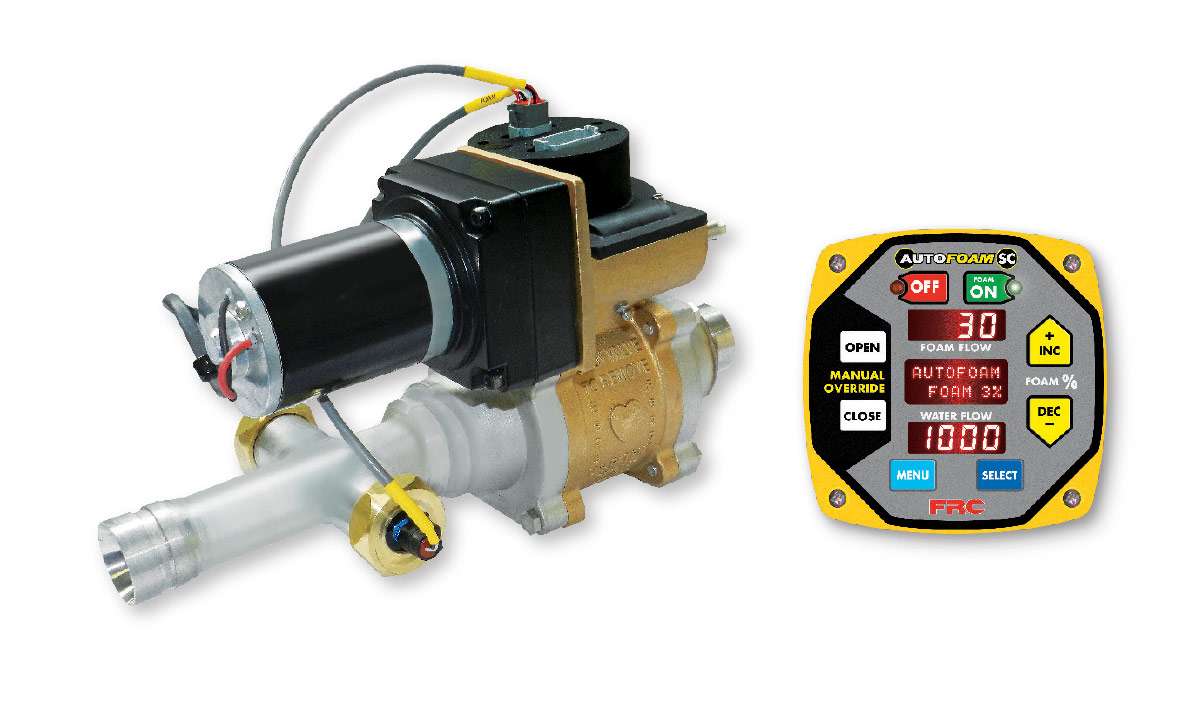

All FSB systems include an electric proportioning valve assembly, a programmable control module, an

eductor, a paddlewheel flow sensor with mount, and cables.

Model Number   Flow Mount   Voltage     Max Amp          Concentrate Range         List

FSB FSB015-025        2.5"            12/24          18/9                     0.5 – 15 gpm            $11,360

FSB FSB015-030        3.0"           12/24           18/9                     0.5 – 15 gpm            $11,360

FSB FSB015-040        4.0"           12/24           18/9                    0.5 – 15 gpm             $11,360

FSB FSB015-050         5.0"          12/24            18/9                    0.5 – 15 gpm            $11,360

FSB FSB030-025        2.5"           12/24            18/9                    0.5 – 30 gpm           $11,360

FSB FSB030-030        3.0"          12/24            18/9                    0.5 – 30 gpm           $11,360

FSB FSB030-040        4.0"          12/24            18/9                    0.5 – 30 gpm           $11,360

FSB FSB030-050        5.0"          12/24             18/9                    0.5 – 30 gpm           $11,360

FSB FSB060-025         2.5"          12/24            18/9                    1.5 – 60 gpm            $11,360

FSB FSB060-030         3.0"         12/24             18/9                   1.5 – 60 gpm             $11,360

FSB FSB060-040         4.0"         12/24             18/9                   1.5 – 60 gpm             $11,360

FSB FSB060-050          5.0"        12/24              18/9                  1.5 – 60 gpm             $11,360

FSB FSB120-025          2.5"         12/24             18/9                    2.0 – 120 gpm          $11,360

FSB FSB120-030          3.0"         12/24             18/9                   2.0 – 120 gpm          $11,360

FSB FSB120-040          4.0"         12/24             18/9                   2.0 – 120 gpm          $11,360

FSB FSB120-050           5.0"        12/24              18/9                  2.0 – 120 gpm           $11,360

FSB FSB240-025           2.5"        12/24              18/9                   10.0 – 240 gpm       $13,184

FSB FSB240-030          3.0"         12/24              18/9                  10.0 – 240 gpm        $13,184

FSB FSB240-040          4.0"         12/24              18/9                  10.0 – 240 gpm        $13,184

FSB FSB240-050          5.0"          12/24             18/9                  10.0 – 240 gpm        $13,184
