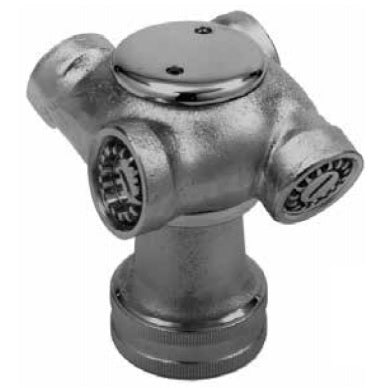

Cellar Nozzle, Elkhart LR, R and Bresnan types, Spray Fog

catalog-f9-01-37 cellar

Elkhart manufactures Cellar nozzles with Fog patterns from 160 gpm to 353 gpm in Chrome. Available in 1.5" and 2.5 National Hose thread.

• Model LR Cellar Nozzle, 00026004

  • 160 gpm @ 100 psi (600 LPM @ 7 BAR)
  • 20 ft. (6 meter) spray diameter
  • Chrome plated brass construction
  • 1.5″ female rigid inlet



  Model R Cellar Nozzle, 00033004

  • 350 gpm @ 100 psi (1330 LPM @ 7 BAR)
  • 55 ft. (16.7 m) spray diameter
  • Chrome plated brass construction
  • 2 .5″ female rigid inlet



  193-6-1.5″ Bresnan Distributor Nozzle

  • 140 gpm @ 100 psi (530 LPM @ 7 BAR)
  • 20 ft. (6 m) spray diameter
  • Chrome plated brass construction
  • 1.5″ female rigid inlet



  193-6-2.5″ Bresnan Distributor Nozzle

  • 395 gpm @ 100 psi (1495 LPM @ 7 BAR)
  • 45 ft. (13.7 m) spray diameter
  • Chrome plated brass construction
  • 2.5″ female rigid inlet



  193-9-2.5″ Bresnan Distributor Nozzle

  • 495 gpm @ 100 psi (1875 LPM @ 7 BAR)
  • 36 ft. (10.9 m) spray diameter
  • Chrome plated brass construction
  • 2.5″ female rigid inlet



  A-1.5″ Applicator (call for availabilty)

  • For use with Cellar and Distributor Nozzles
  • Chrome plated brass construction
  • 1.5″ free swivel inlet x 1.5″ male outlet



  A-2.5″ Applicator (call for Availibilty)

  • For use with Cellar and Distributor Nozzles
  • Lightweight aluminum construction
  • Red urethane enamel finish
  • 2.5″ free swivel inlet x 2.5″ male outlet
