FoamPro

Class A and/or B Foam – Single-Point Injection, 2001 and 2002 series

Class A and/or B Foam – Single-Point Injection, 2001 and 2002 series

$8,459.00 USD
$8,459.00 USD
Sale Sold out
Shipping calculated at checkout.
Foampro options
Auto ON option
Designed for Class A and/or Class B foam applications, the 2000 series of proportioners delivers greater flow capabilities than the 1600 series. In addition, the panel-mounted digital control module offers easy to use, push button control. Real time flow and proportioning performance information is displayed by ultra-bright LED readouts. The system features fully automatic foam proportioning, regardless of changes in flow or pressure, and delivers unmatched accuracy over the entire flow range. Proportioning is continuous with no need to stop for foam tank refill. Two models are available, differing in concentrate capacity: the 2001 at 2.6 gpm (9.8 LPM), the 2002 at 5.0 gpm (19 LPM). Foam concentrate is delivered by a triplex plunger pump and motor (12 or 24 VDC) assembly. The optional advanced feature controller offers “auto-on” programming.

2000-2024 series

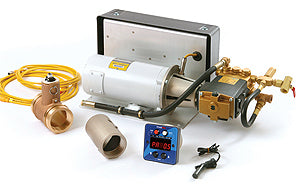

The 2000 series is available in two models, differing only in capacity. Each system includes a Hypro triplex plunger pump and DC (12 or 24 volt) motor assembly. Also included are a microprocessor control/display unit, instruction placard, strainer, foam injection check valve, complete shielded cable set and RFI/EMI suppression kit. The system provides fully automatic foam proportioning, regardless of changes in flow or pressure, and offers convenient, push-button operation, making it the easiest system to use. LED digital readouts provide real time performance information. The optional advanced feature controller offers “auto-on” programming which automatically arms the proportioner when the fire pump is engaged.

System Features and Benefits

  • Fully automatic-on demand
  • Discharge side injection
  • No in-line restrictions, greater flow
  • Unmatched accuracy over the widest range of flow
  • Smoothest proportioning available at ultra-low flow
  • Leading the industry in proven reliability
  • Proportions continuously, with no stopping to refill

  • Delivers 0.01 to 5.0 gpm (0.038 - 19 LPM)

  • Injection pressure to 400 psi (28 BAR)

  • Achieves full pump capacity with all known Class A, Class B, AFFF, and most Class B AR-AFFF

  • Installs easily in new or existing apparatus

Control Module Features

  • Ultra-bright LED digital readout
  • Injection percentage from 0.1% to 10.0%

  • Display following information:

    • Low concentrate/ No concentrate warning
    • Water flow rate
    • Total water used
    • Injection percentage
    • Total concentrate used
  • Dual-tank capability and calibration
  • Displays separate totals for each tank
  • Calibrate for each concentrate

Options

  • Concentrate Management Systems
  • Advanced Feature Controller - Auto On
  • MultiFlo
  • Remote Start/Stop for pump and roll applications
  • Dual-Injection Selector
  • Solid State Contactor
  • Flow sensors, check valves, manifolds
  • Low-Level Sensors

Ideal for Use On

  • Municipal pumpers
  • Fast attack/wildland vehicles
  • Marine and shipboard system
  • Compressed Air Foam Systems
