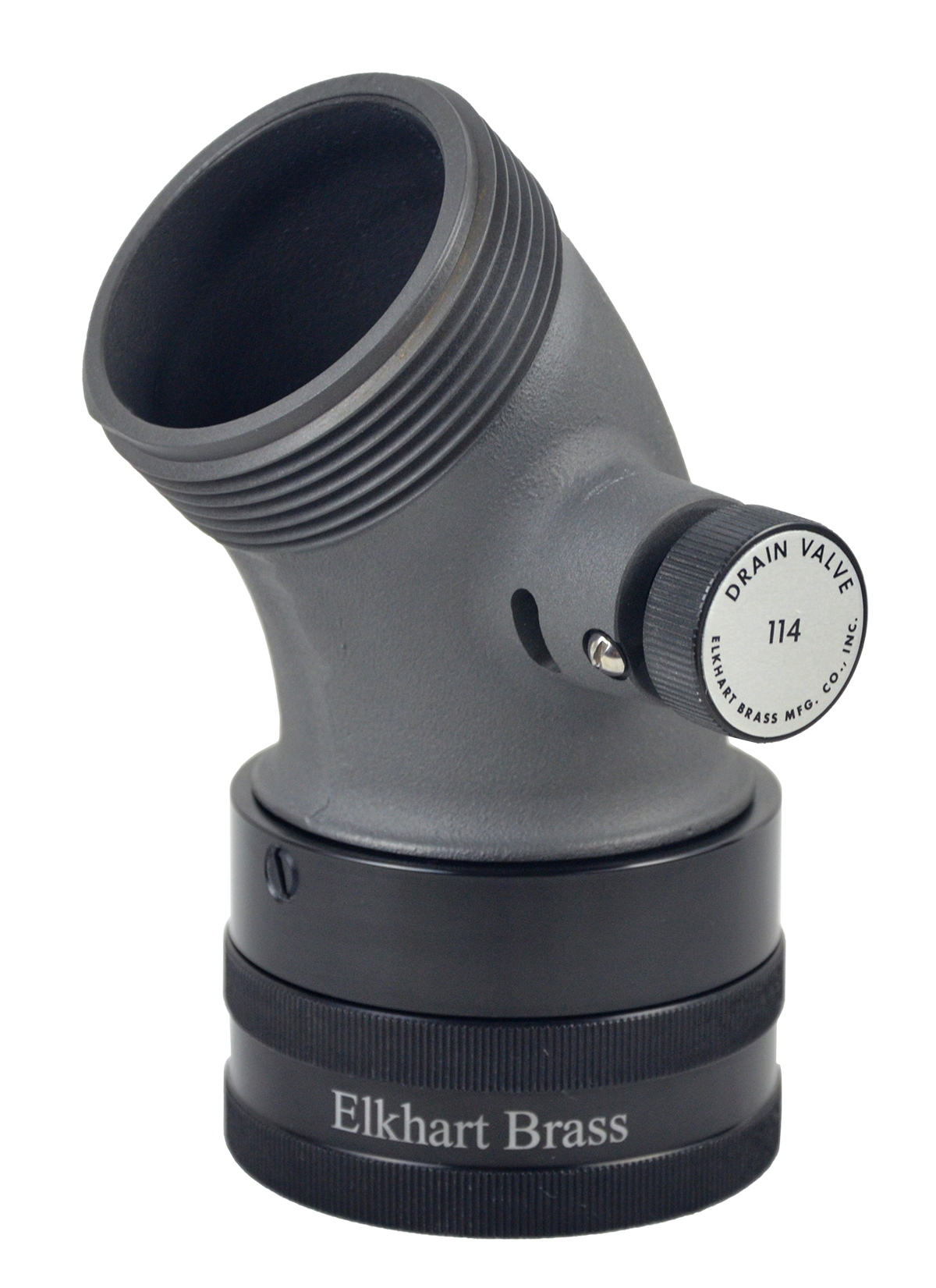

Elkhart 105A HIGH RISE DRAIN ELBOW ***

105A HIGH RISE DRAIN ELBOW, Lightweight, compact drain elbow for high-rise application.

105A Datasheet 1.27.17

2.5 FNH x 2.5 MNH w/air bleeder

The new Model 105A High-Rise Elbow is lightweight and compact with an integrated Model 114 drain valve to help relieve pressure from your current high-rise set up. It features a standard NH (National Hose) thread and knurled edge coupling for tight Class 1 or Class 3 hose cabinets. The 45-degree elbow all but eliminates hose kinking from the standpipe valve.

Design Features:

• Compact design for high-rise applications
• Elbow design reduces hose kinks
• Increased flow efficiency
• Integrated Model 114 drain valve for ease-of-operations
• Elbow drains efficiently from any position
• Lightweight cast 356 Elk-O-Lite® aluminum construction

Mechanical Features:

• 45° Drain Elbow
• 2½” NH Female Free Swivel
• 2½” NH Male Discharge
• 200 psi Operating Pressure
• Weight of only 2 lbs.
