Elkhart 12V- 24V X-Stream Master Stream Nozzle ***

Elkhart 12V- 24V X-Stream Master Stream Nozzle ***

$2,298.00 USD
$2,298.00 USD
Sale Sold out
X-Stream
PDF Data Sheet X-Stream \n \nPDF Data Sheet X-Stream Nozzles \n \nPDF Data Sheet Elkhart xstream_ASM-2000BE \n \nFlush Inlet Built to perform, the X-Stream® Series automatic nozzles are designed to self-adjust based on variable or reduced pressure and flow to maintain an effective stream with maximum reach. Manual models feature large handles for easy stream pattern adjustment. 12VDC electric versions include sealed connectors and motors along with a manual override. They have several global certifications and approvals including FM, ATEX, and IECEx. Special models are designed for use in hazardous locations and for gas mitigation applications. Flow rates: 350 - 2000 gpm (1330-7550 LPM) Calibrated to operate at lower inlet pressures. \n
\n

Key Features

\n
\n  \n
\n \nFlow rates: 350 – 2000 gpm (1330-7550 LPM) \n \n
\n  \n
\n \nCalibrated to operate at lower inlet pressures of 75 or 80 psi (5 or 5.5 BAR) \n \n
\n  \n
Straight stream, narrow fog (30°) or wide fog (90°)
\n  \n
Precision cut metal teeth for exceptional fog pattern
\n  \n
\n \nDurable, lightweight aluminum construction \n– OR – \nBrass construction for corrosive and non-corrosive environment applications with some models even having an electroless nickel-plated coating for extra protection \n \n
\n  \n
\n \nSome models are made of hard coated aluminum with hard anodized finish \n \n
\n
\n
\n
\n
\n
\n
\n

Aluminum Models

\n
\n
\n
\n
\n
\n
\n

Model SM-1000

\n
    \n
  • Flow range of 350-1000 gpm @ 75 psi (1330-3800 LPM @ 5 BAR)
    • \n
  • Large handles for manual stream pattern adjustment
    • \n
  • 2.5″ Inlet
    • \n
\n
\n
\n
\n
\n
\n

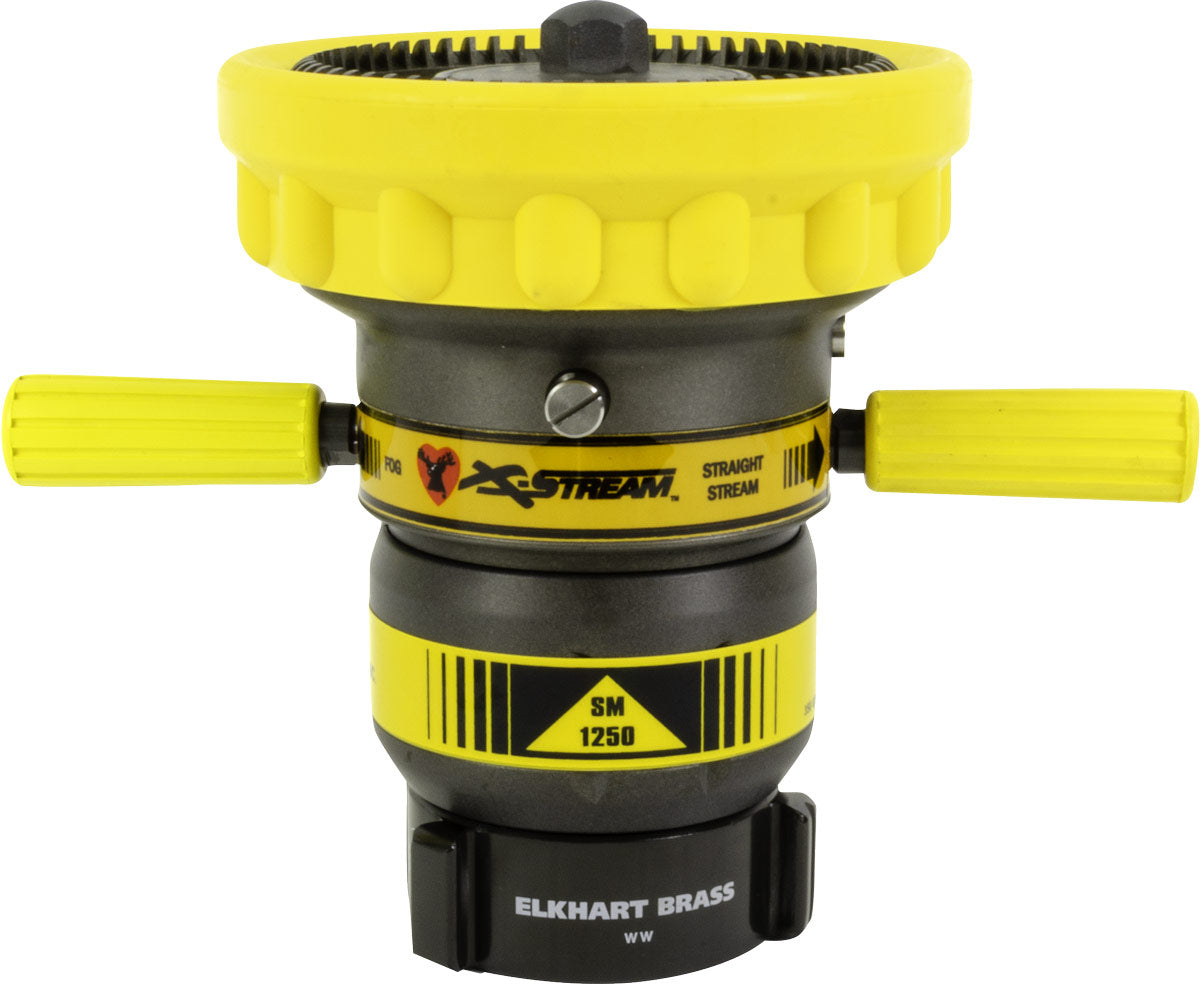

Model SM-1250

\n
    \n
  • Flow range of 350-1250 gpm @ 75 psi (1330-4750 LPM @ 5 BAR)
    • \n
  • Large handles for manual stream pattern adjustment
    • \n
  • 2.5″ Inlet
    • \n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n

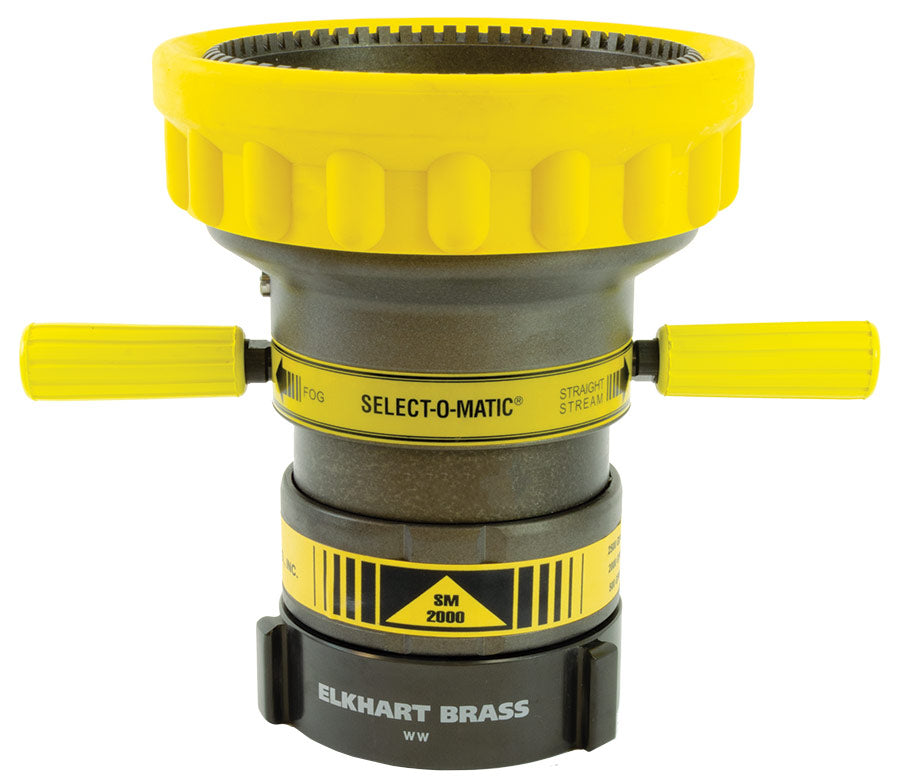

Model SM-2000

\n
    \n
  • Flow range of 500-2000 gpm @ 80 psi (1900-7550 LPM @ 5.5 BAR)
    • \n
  • Large handles for manual stream pattern adjustment
    • \n
  • 3.5″ Inlet
    • \n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n

Model SM-1000E (D)

\n
    \n
  • Flow range of 350-1000 gpm @ 75 psi (1330-3800 LPM @ 5 BAR)
    • \n
  • Stream pattern remotely controlled via robust electronic motor design
    • \n
  • 2.5″ Inlet
    • \n
  • Deutsch or SAE wiring connections available
    • \n
\n
\n
\n
\n
\n
\n

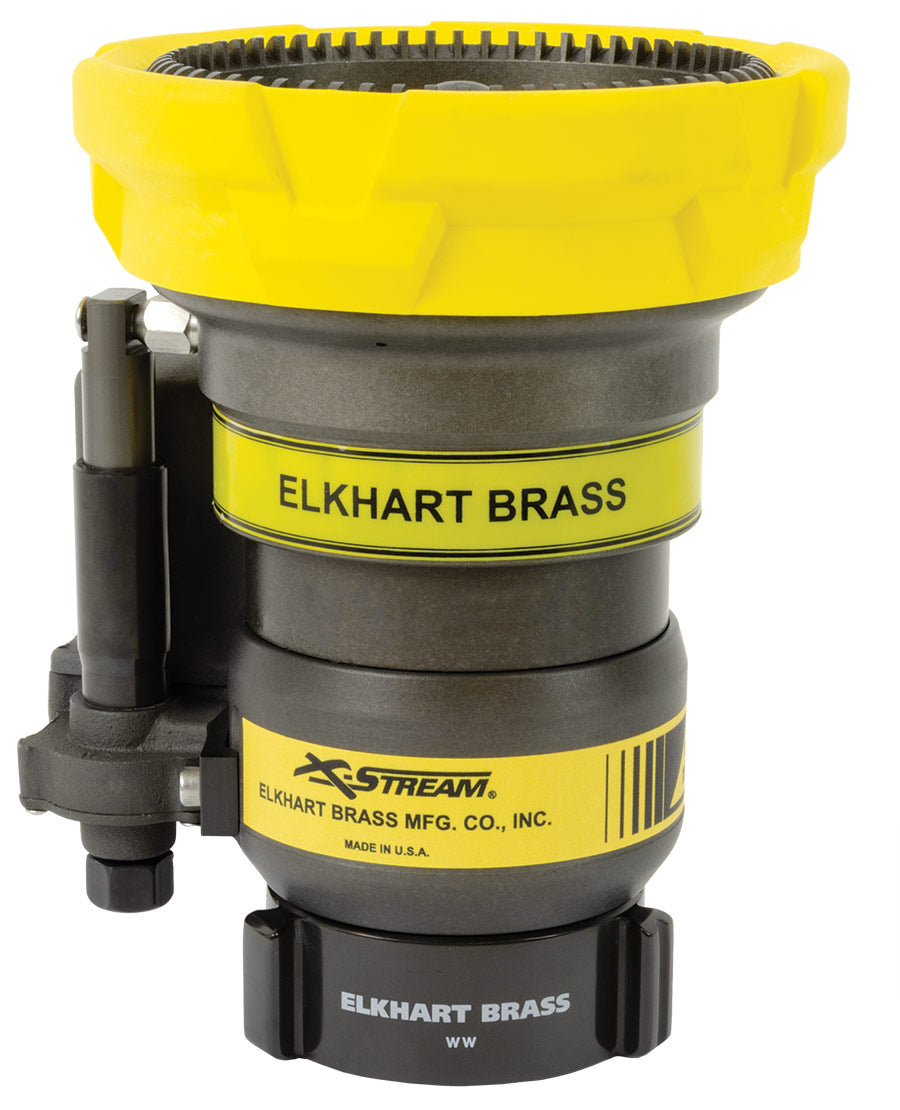

Model SM-1250E (D)

\n
    \n
  • Flow range of 350-1250 gpm @ 75 psi (1330-4750 LPM @ 5 BAR)
    • \n
  • Stream pattern remotely controlled via robust electronic motor design
    • \n
  • 2.5″ Inlet
    • \n
  • Deutsch or SAE wiring connections available
    • \n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n

Model SM-1500E (D)

\n
    \n
  • Flow range of 350-1500 gpm @ 75 psi (1330-5700 LPM @ 5 BAR)
    • \n
  • Stream pattern remotely controlled via robust electronic motor design
    • \n
  • 3.5″ Inlet
    • \n
  • Deutsch or SAE wiring connections available
    • \n
\n
\n
\n
\n
\n
\n

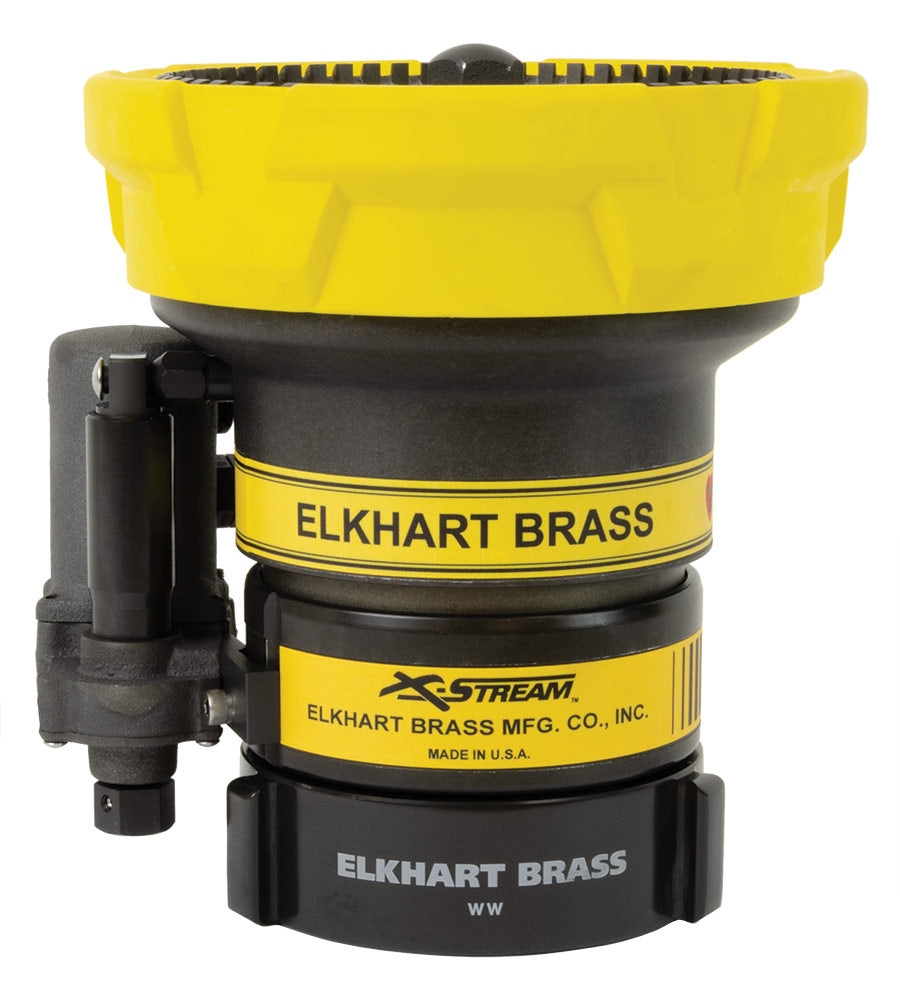

Model SM-2000E (D)

\n
    \n
  • Flow range of 500-2000 gpm @ 80 psi (1900-7550 LPM @ 5.5 BAR)
    • \n
  • Stream pattern remotely controlled via robust electronic motor design
    • \n
  • 3.5″ Inlet
    • \n
  • Deutsch or SAE wiring connections available
    • \n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n

Brass Models

\n
\n
\n
\n
\n
\n
\n

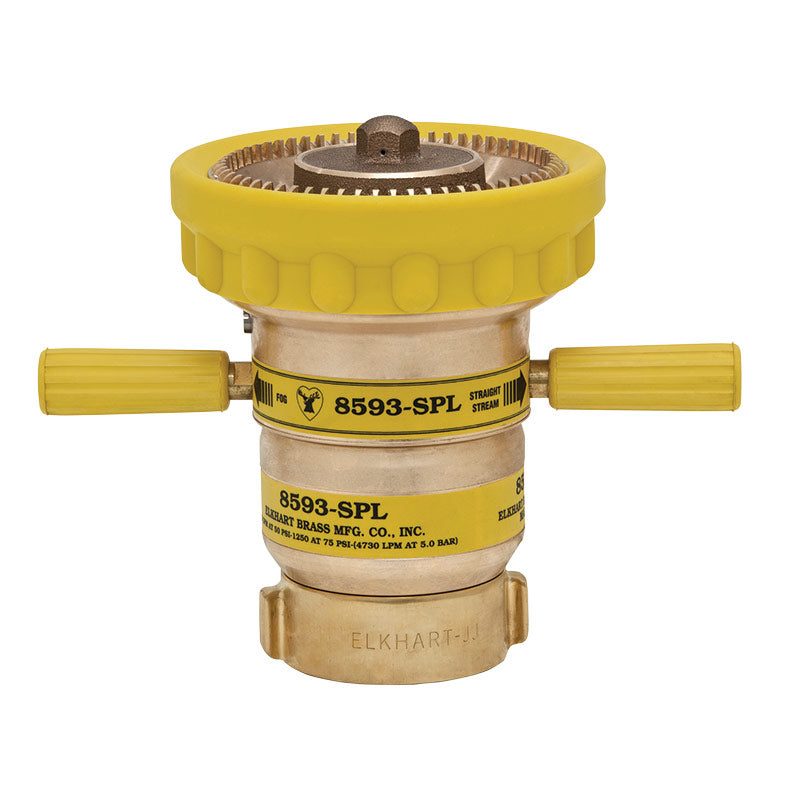

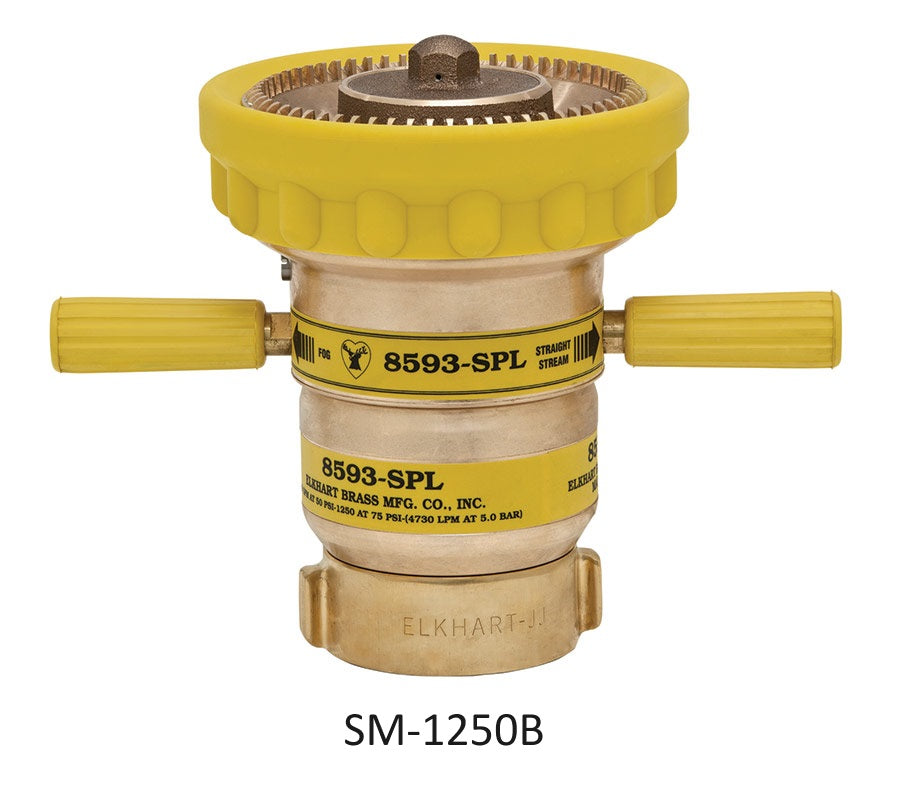

Model SM-1250B

\n
    \n
  • Flow range of 350-1250 gpm @ 75 psi (1330-4750 LPM @ 5 BAR)
    • \n
  • Large handles for manual stream pattern adjustment
    • \n
  • 2.5″ or 3.5″ inlet
    • \n
  • FM Approved
    • \n
\n
\n
\n \nFM Approved \n \n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n

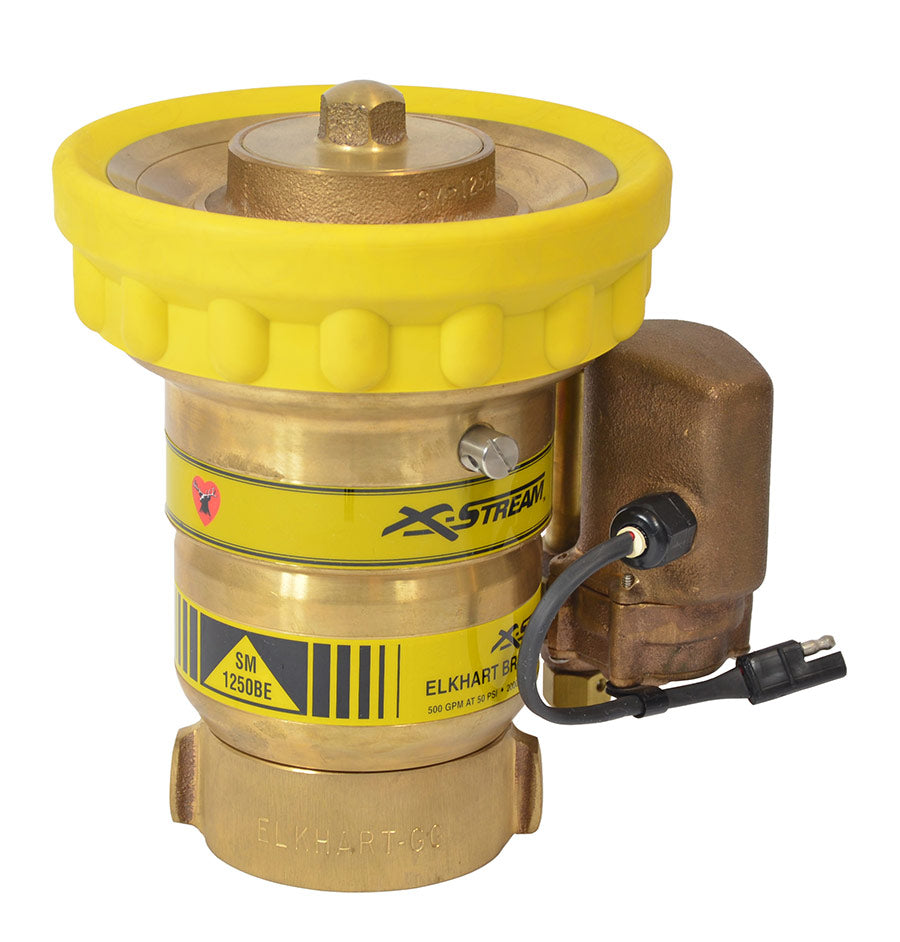

Model SM-1250BE

\n
    \n
  • Flow range of 350-1250 gpm @ 75 psi (1330-4750 LPM @ 5 BAR)
    • \n
  • Stream pattern remotely controlled via robust electronic motor design
    • \n
  • 2.5″ inlet or 3.5″ inlet
    • \n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n

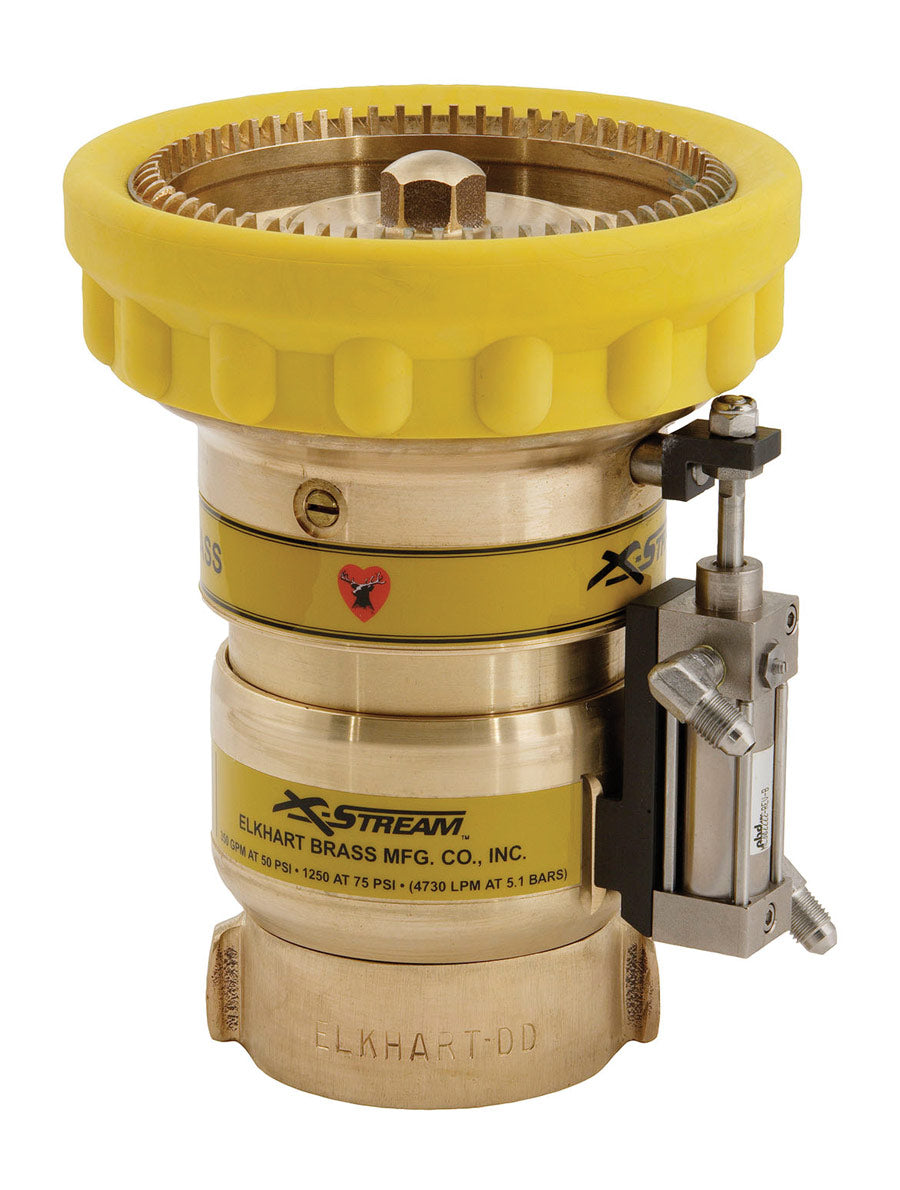

Model SM-1250HB

\n
    \n
  • Flow range of 350-1250 gpm @ 75 psi (1330-4750 LPM @ 5 BAR)
    • \n
  • Stream pattern remotely controlled via robust hydraulic actuator
    • \n
  • 2.5″ inlet or 3.5″ inlet
    • \n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n

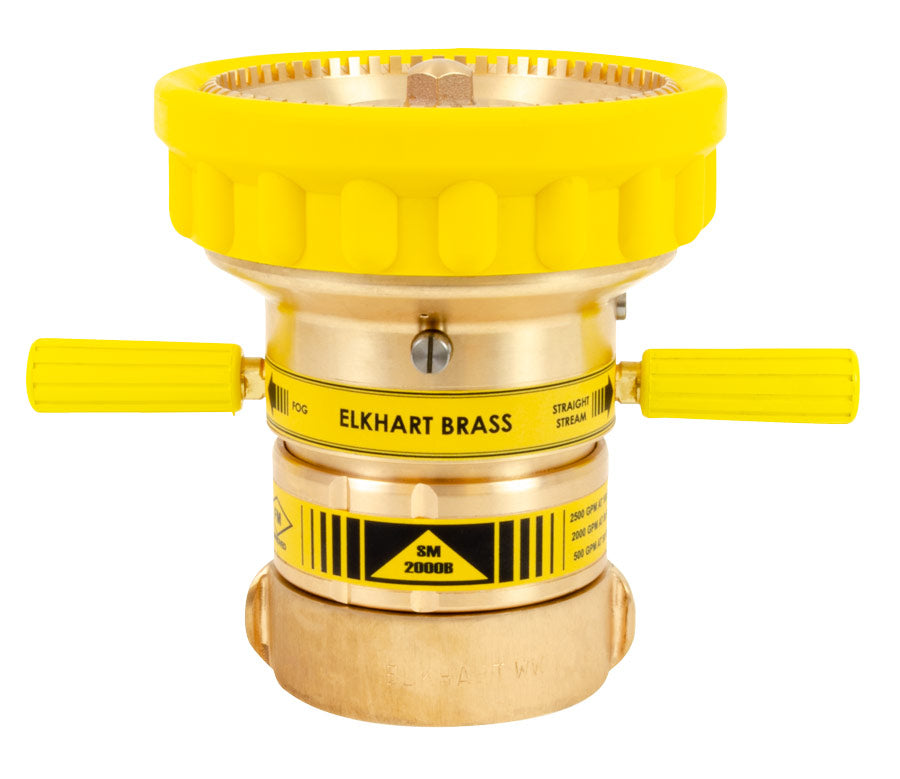

Model SM-2000B

\n
    \n
  • Flow range of 500-2000 gpm @ 80 psi (1900-7550 LPM @ 5.5 BAR)
    • \n
  • Large handles for manual stream pattern adjustment
    • \n
  • 3.5″ inlet
    • \n
  • FM Approved
    • \n
\n
\n
\n \nFM Approved \n \n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n

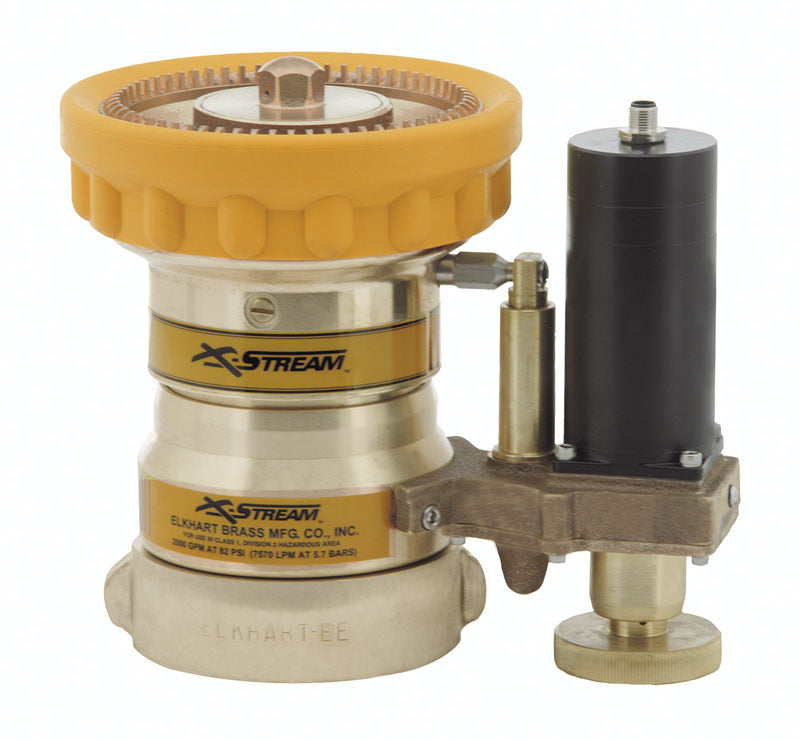

Model SM-2000BE

\n
    \n
  • Flow range of 500-2000 gpm @ 80 psi (1900-7550 LPM @ 5.5 BAR)
    • \n
  • Stream pattern remotely controlled via robust electronic motor design
    • \n
  • 3.5″ inlet
    • \n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n

Model SM-2000HB

\n
    \n
  • Flow range of 500-2000 gpm @ 80 psi (1900-7550 LPM @ 5.5 BAR)
    • \n
  • Stream pattern remotely controlled via robust hydraulic actuator
    • \n
  • 3.5″ inlet
    • \n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n

Approved for Hazardous Location Use

\n
\n
\n
    \n
  • FM Approved for Class I Div 2 hazardous location rated
    • \n
\nor \n
    \n
  • ATEX certified for Zone 1, ATEX Zone 2, ATEX Zone 21, ATEX Zone 22
    • \n
  • IECEx certified Zone 1, IECEx Zone 2, IECEx Zone 21, IECEx Zone 22
    • \n
\n
\n
\n
\n
\n
\n
\n

Model SM-1250BE-HL

\n
    \n
  • Flow range of 350-1250 gpm @ 75 psi (1330-4750 LPM @ 5 BAR)
    • \n
  • Stream pattern remotely controlled via robust electronic motor design
    • \n
  • 3.5″ inlet
    • \n
\n
\n
\n \nFM Approved OR ATEX Certified \n \n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n

Model SM-2000BE-HL

\n
    \n
  • Flow range of 500-2000 gpm @ 80 psi (1900-7550 LPM @ 5.5 BAR)
    • \n
  • Stream pattern remotely controlled via robust electronic motor design
    • \n
  • 3.5″ inlet
    • \n
\n
\n
\n \nFM Approved OR ATEX Certified \n \n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n

Gas Mitigation Master Stream Nozzles

\n
\n
\n \nDesigned for with a wide 120° fog pattern for gas mitigation applications \n \n
\n
\n
\n
\n
\n
\n

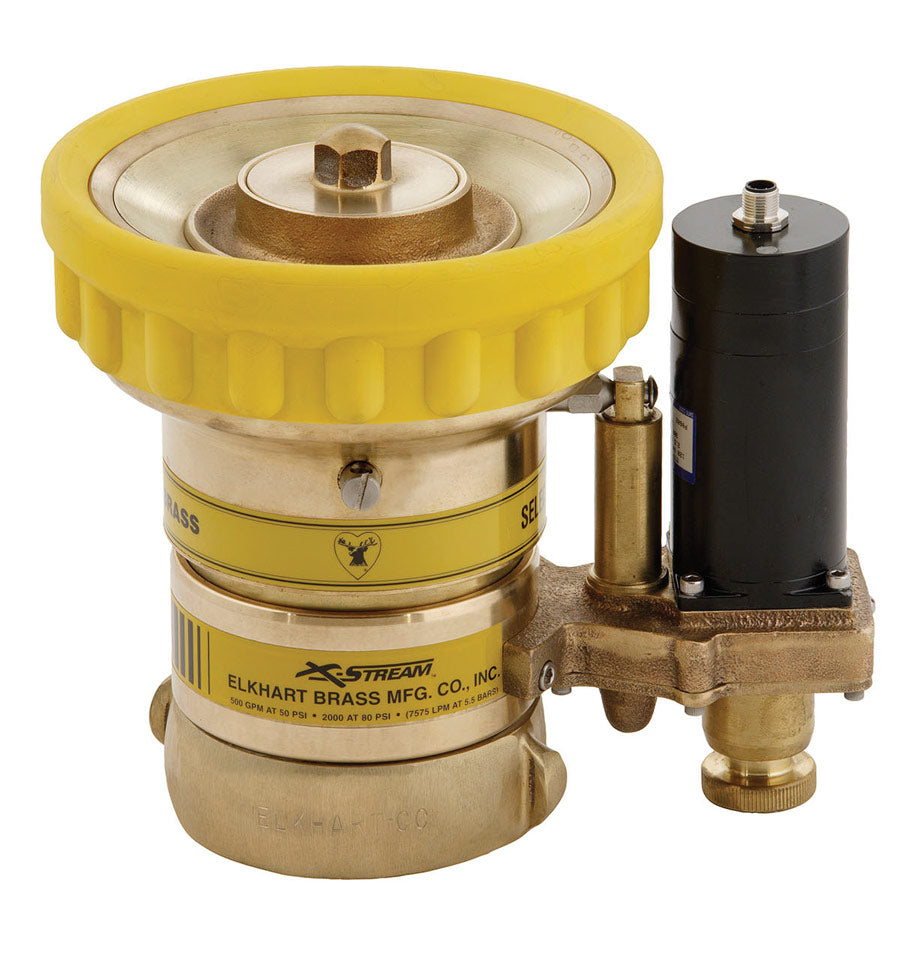

Model SM-1250BE-HLGM

\n
    \n
  • Flow range of 350-1250 gpm @ 75 psi (1330-4750 LPM @ 5 BAR)
    • \n
  • Stream pattern remotely controlled via robust electronic motor design
    • \n
  • 3.5″ inlet
    • \n
\n
\n
\n \nFM Approved \n \n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n

SM-2000BE-HLGM

\n
    \n
  • Flow range of 500-2000 gpm @ 80 psi (1900-7550 LPM @ 5.5 BAR)
    • \n
  • Stream pattern remotely controlled via robust electronic motor design
    • \n
  • 3.5″ inlet
    • \n
