Elkhart 90º DISCHARGE & SUCTION SWIVEL ELBOWS 348***

90° Discharge & Suction Swivel Elbows

catalog-f9-09-02elbo

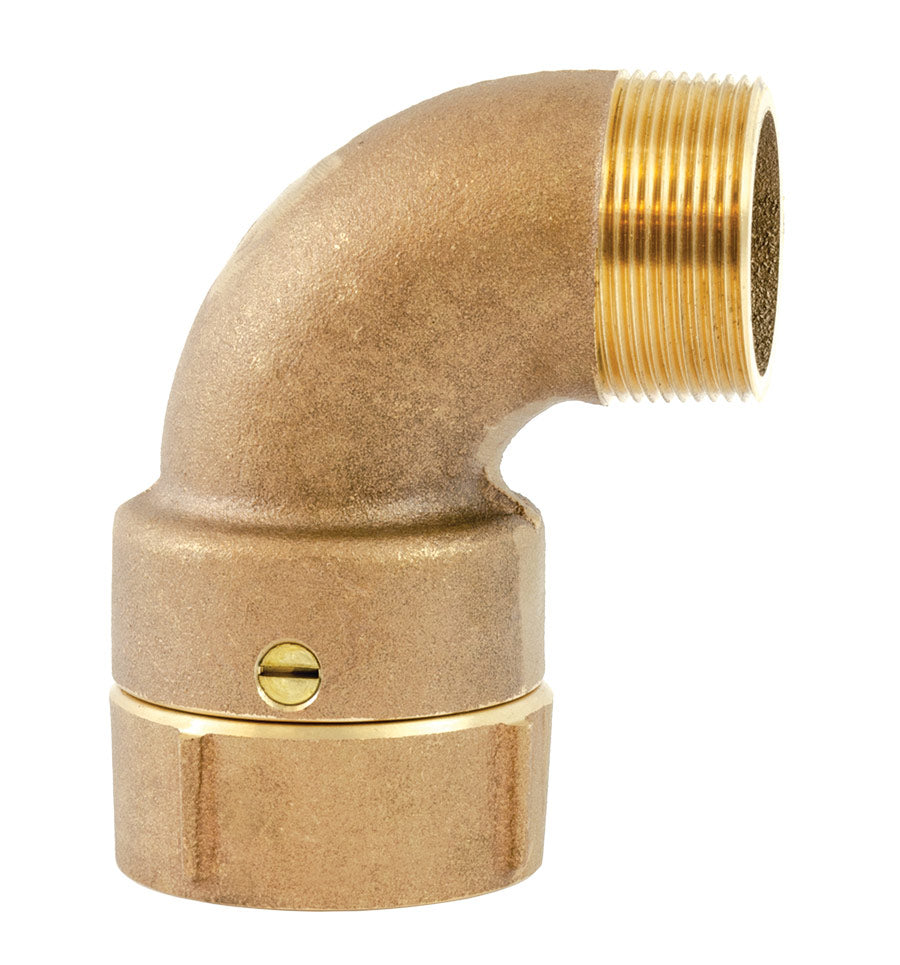

348 – 1.5″

• Cast brass construction and finish
• Single ball bearing race
• 1.5″ or 2″ female NPT free swivel inlet
• 1.5″male NHT or NSPH outlet

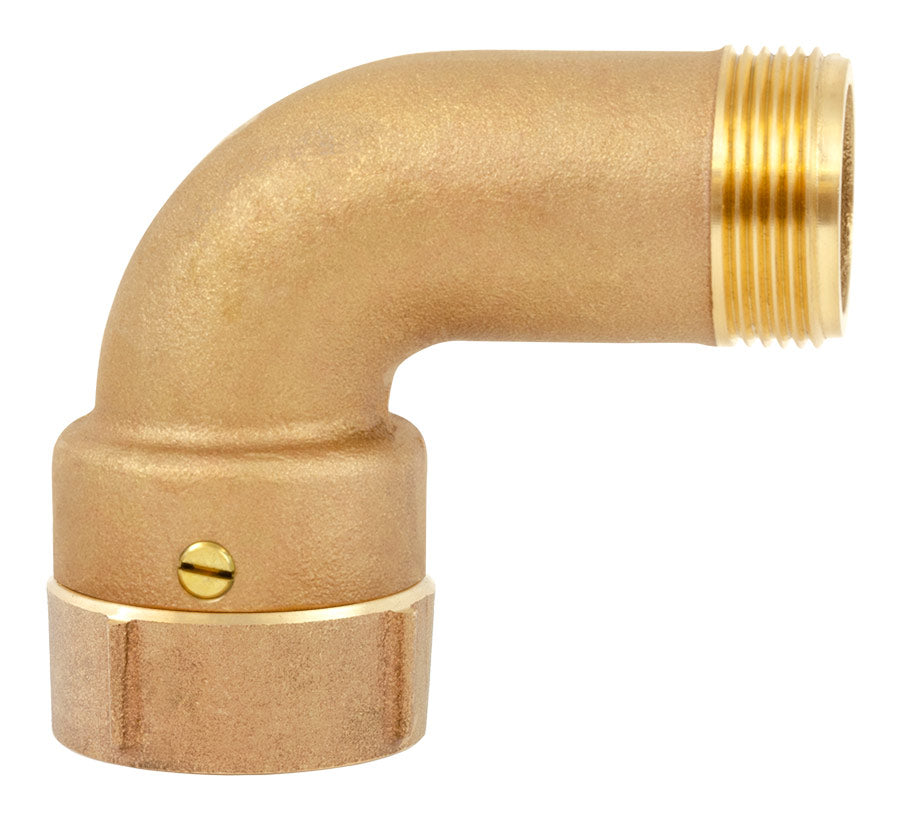

348L – 1.5″

• Slightly longer discharge
• Cast brass construction and finish
• Single ball bearing race
• 1.5″ or 2″ female NPT free swivel inlet
• 1.5″ male NHT or NSPH outlet

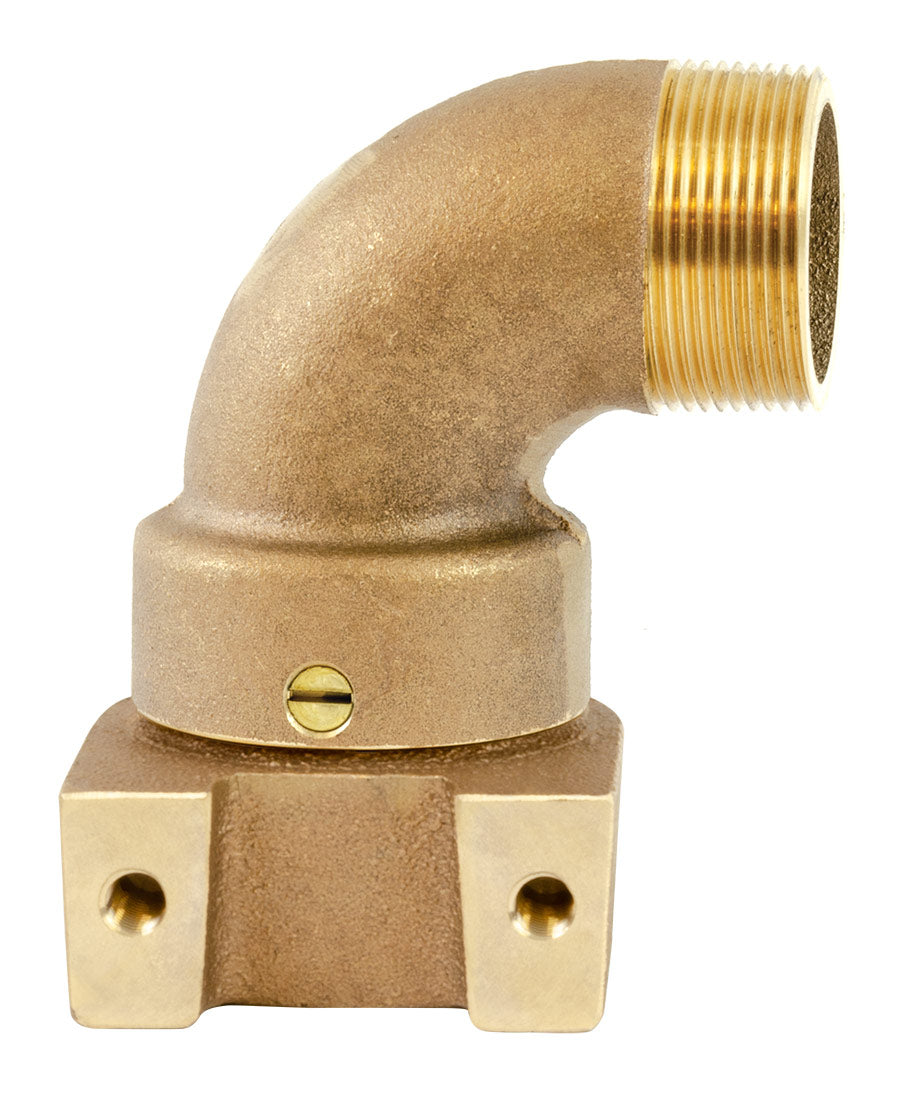

348M – 1.5″

• Includes cast bracket for stud mount to apparatus
• Cast brass construction and finish
• Single ball bearing race
• 2″ female NPT free swivel inlet
• 1.5″ male NHT outlet

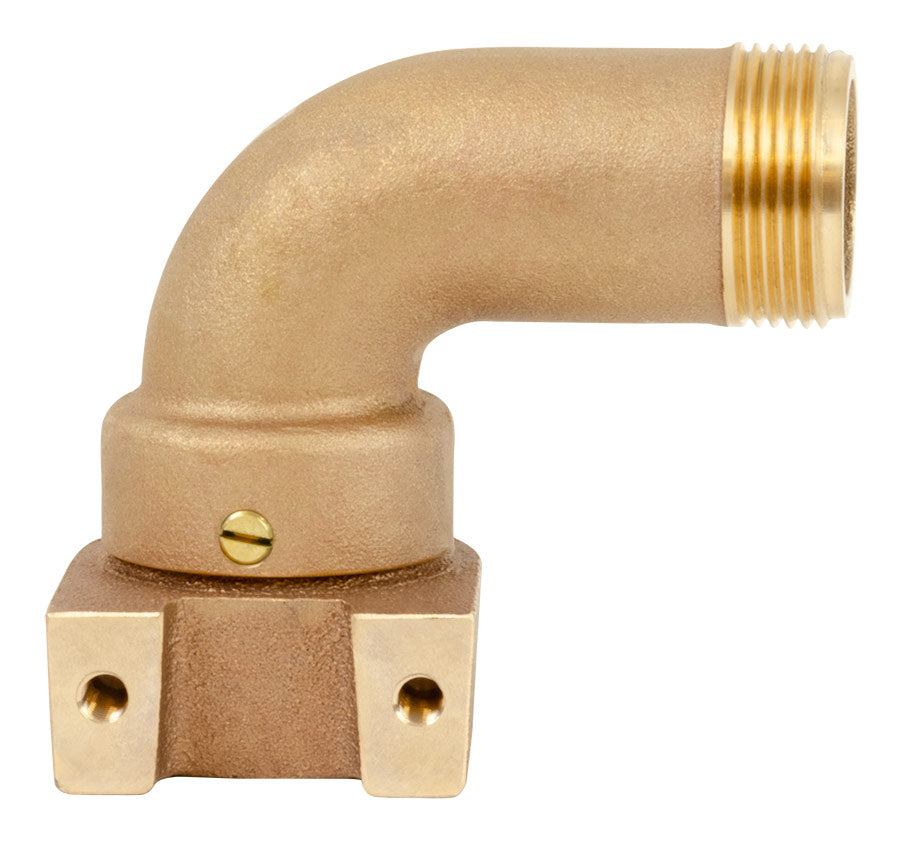

348ML – 1.5″

• Includes cast bracket for stud mount to apparatus
• Slightly longer discharge
• Cast brass construction and finish
• Single ball bearing race
• 2″ female NPT free swivel inlet
• 1.5″ male NHT outlet

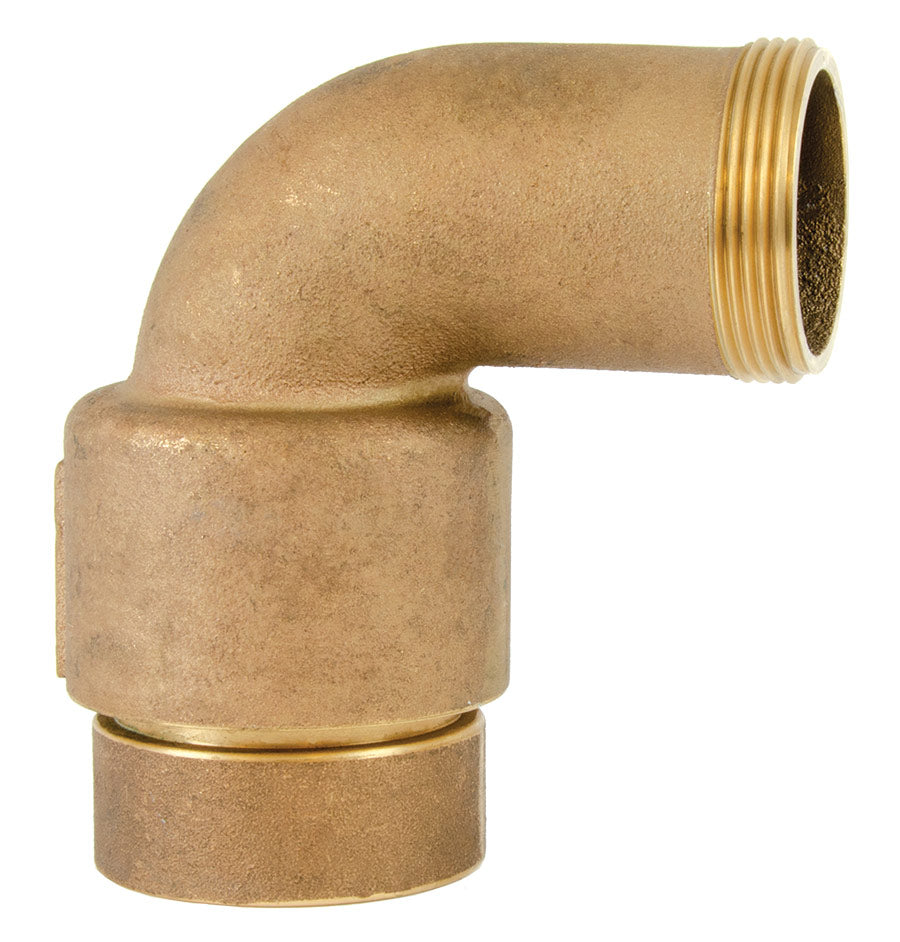

348 – 2.5″

• Cast brass construction and finish
• Double ball bearing race
• 2.5″ female NPT free swivel inlet
• 2.5″ male NHT outlet

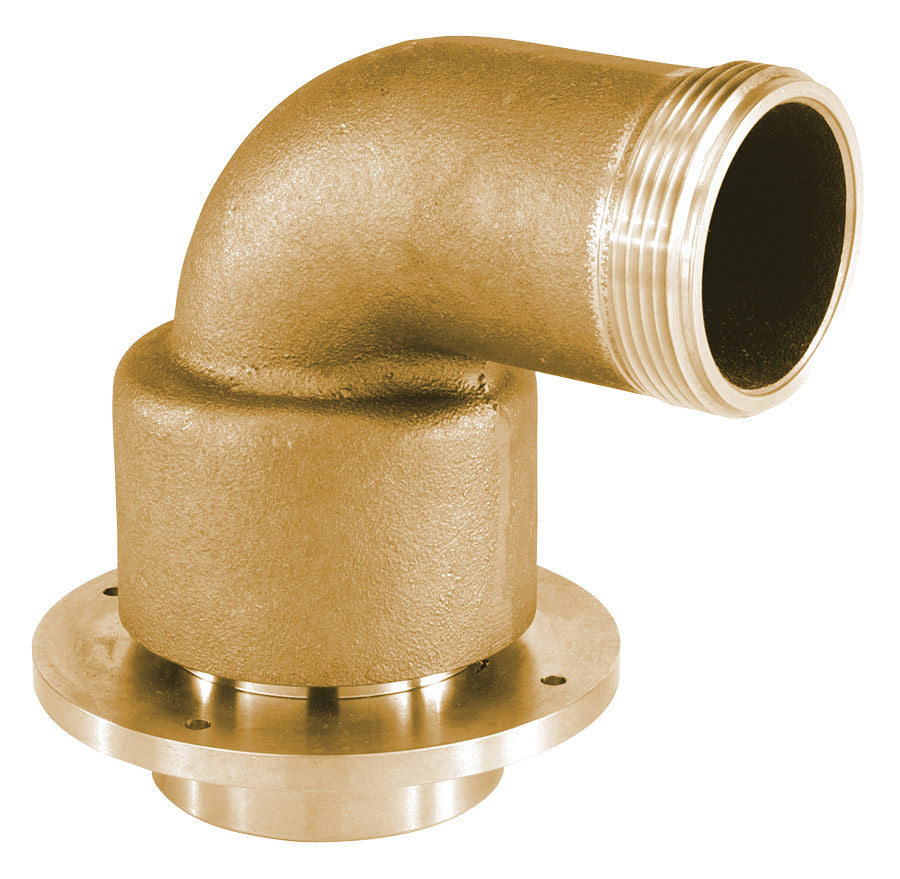

348M – 2.5″

• Specify flange bracket or stud mount bracket for mounting to apparatus
• Cast brass construction and finish
• Double ball bearing race
• 2.5″ female NPT free swivel inlet
• 2.5″ male NHT outlet

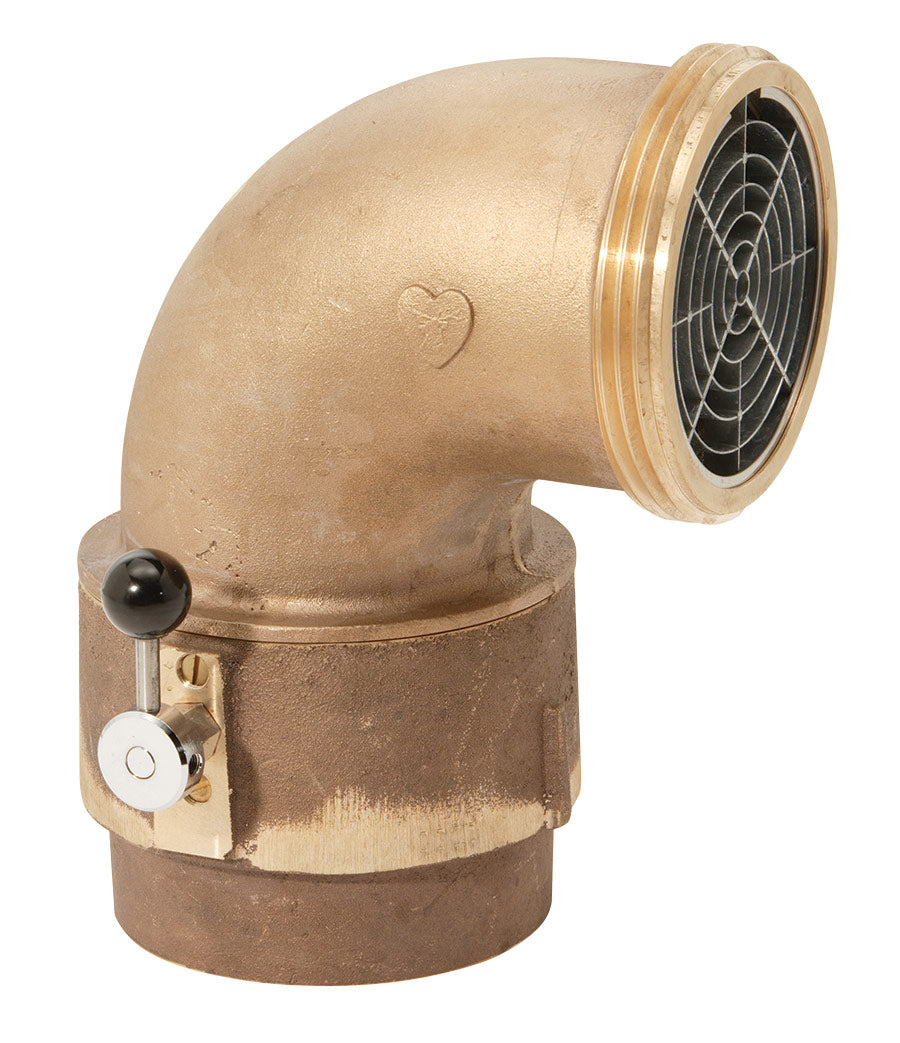

348 – 4″

• Cast brass construction with rough brass or rough chrome finish
• Double ball bearing race
• 4″ female NPT free swivel inlet
• 4″ male NHT or NPT outlet

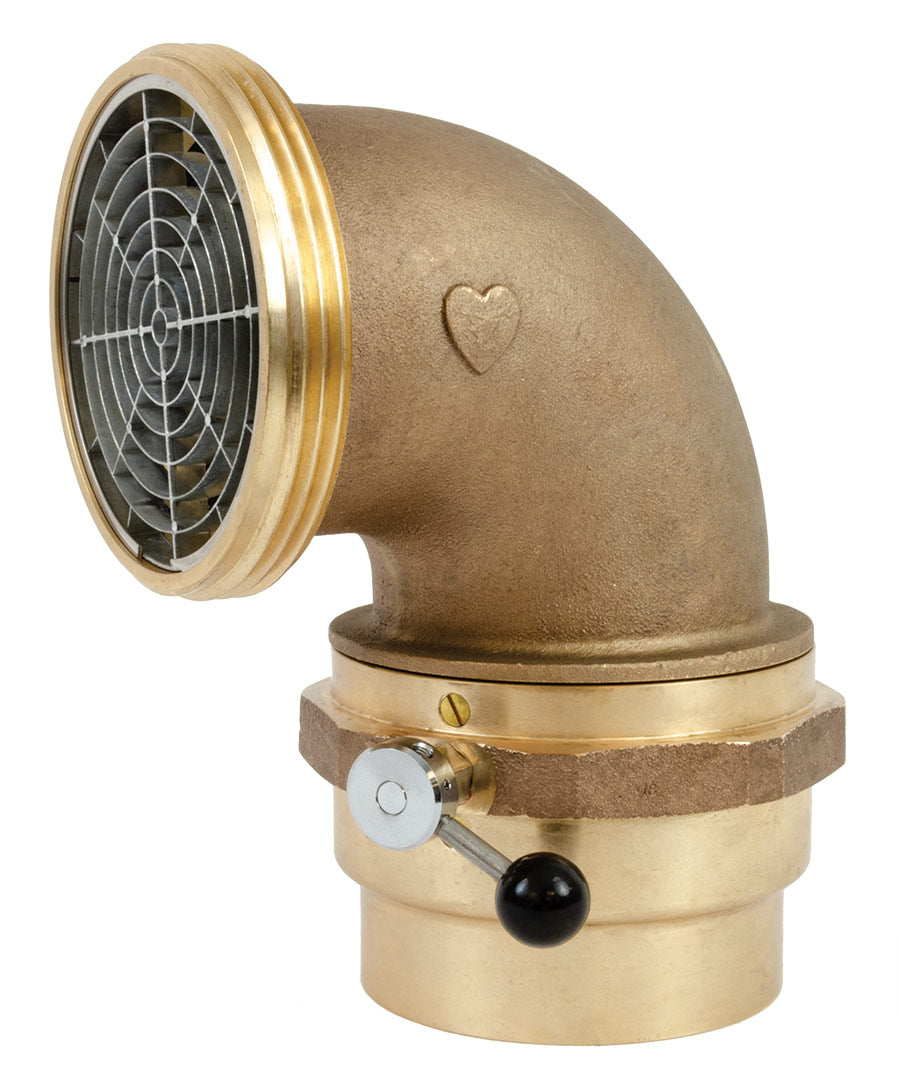

348 – 5″

• Cast brass construction with rough chrome finish
• Double ball bearing race
• 5″ female NPT free swivel inlet
• 5″ male NHT outlet with strainer

348 – 6″

• Cast brass construction with rough brass or rough chrome finish
• Double ball bearing race
• 6″ female NPT free swivel inlet
• 6″ male NHT outlet with strainer

348              1.5 FNPTx 1.5 MNH      Cast brass      03962001

348              1.5 FNPTx 1.5 MNPT     Cast brass     03962101

348              2.0 FNPTx 1.5 MNH     Cast brass     03962401

348-L          1.5 FNPTx 1.5 MNH      Cast brass     03962201

348-L          2.0 FNPTx 1.5 MNH     Cast brass     03962501

348-M        2.0 FNPTx 1.5MNH w/side mount         Cast brass    03962601

348-ML     2.0 FNPTx 1.5 MNH w/side mount         Cast brass    03962701

348-ML     2.0 FNPTx 1.5 MNPSH w/side mount      Cast brass   03962711

348             2.5FNPTx2.5MNH Cast brass 02526001

348-M        2.5 FNPTx2.5 MNH w/mounting flange     Cast brass    02526201

348-M        2.5 FNPTX2.5 MNH w/side mount       Cast brass    02526301

348              4.0 FNPTx4.0 MNHTw/strainer          Cast brass    02528001

348              5.0 FN PT x 5.0 M NHTw/strainer      Cast brass    02532001

348              5.0 FN PT x 6.0 M NHTw/strainer      Cast brass    02533001
