Elkhart Brass

Elkhart Industrial pressure reducing or Hose Valves U-30

Elkhart Industrial pressure reducing or Hose Valves U-30

$203.00 USD
$203.00 USD
Sale Sold out
Shipping calculated at checkout.
Angle Valve option

Brochure U-30 25 20 cat

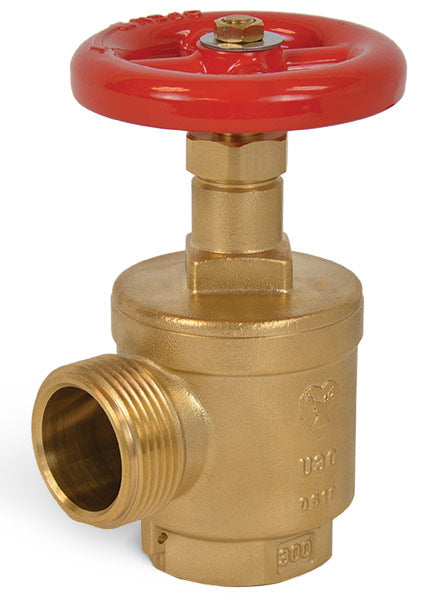

U Angle Hose Valves

The Elkhart Brass U angle valves are used in firefighting piping systems as Fire Department outlet connection or Fire Hose Rack assembly connection. They are available in 1.5″ and 2.5″ inlet/outlet sizes and offered in angle style with NPT and NHT threading options. The U valves are UL Listed and FM Approved.

  • Compact size enables ease of installation
  • Support up to 300 psi (20.6 BAR) static and dynamic pressure
  • Supports up to 500 GPM (1900 LPM) flow rate
  • Brass and bronze construction enable use in corrosive and non-corrosive environment
  • 1.5″ and 2.5″ FNPT inlet
  • 1.5″ and 2.5″ FNPT and NHT outlet
  • Special Threads available as option
  • Grooved adapter (price per connection) $300

U-30-1.5

1.5″ female NPT inlet x 1.5″ male NHT

or 1.5″ female NPT inlet x 1.5″ female NPT

  • Rated for 300 psi (20.7 BAR)
  • Rough Brass finish

U-30-2.5

    • 2.5″ female NPT inlet x 2.5″ male NHT

      or

      2.5″ female NPT inlet x 2.5″ female NPT

    • Rated for 300 psi (20.7 BAR)
    • Rough Brass finish

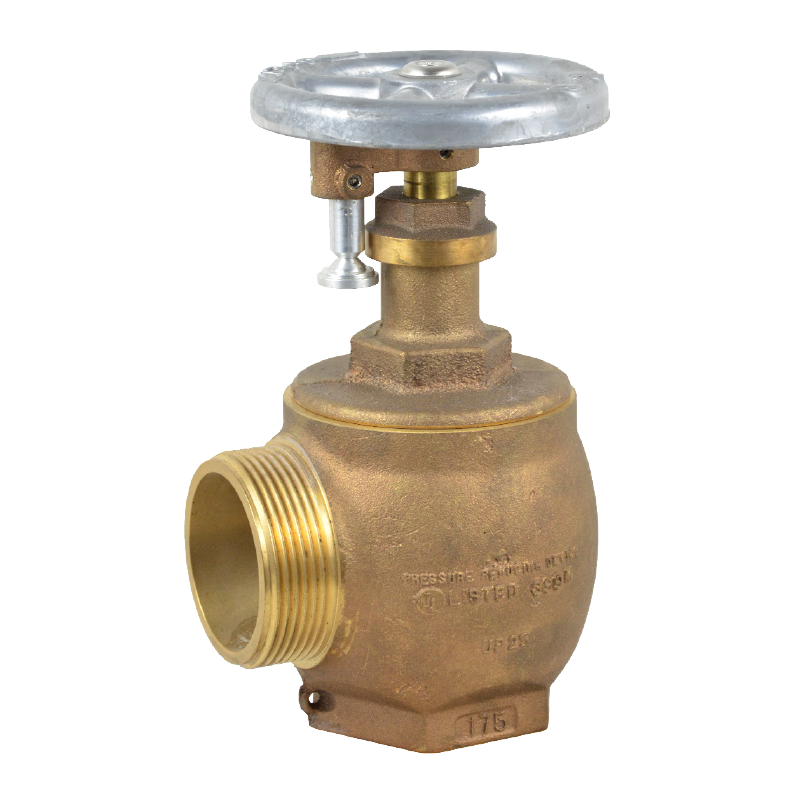

UP Pressure Restricting Valves



The Elkhart Brass UP pressure restricting valves design enables a range of valve outlet pressures adjustment under flowing condition. The UP valves are both factory and field settable and are available in 1.5″ and 2.5″ inlet/outlet sizes and offered in angle style with NPT and NHT threading options. The UP valves are UL Listed and FM Approved.

  • Compact size enables ease of installation
  • Support up to 400 psi (27.5 BAR) static and dynamic pressure
  • Supports up to 500 GPM (1900 LPM) flow rate
  • Brass and bronze construction enable use in corrosive and non-corrosive environment
  • 1.5″ and 2.5″ FNPT inlet
  • 1.5″ and 2.5″ FNPT and NHT outlet
