INDUSTRIAL & ELECTRICAL FOG

catalog-f9-01-25 - L-205-B, Spec sheetcatalog-f9-01-25a

Elkhart Brass industrial handline and electrical fog nozzles are designed for deployments by industrial fire brigades in refineries, chemical plants, office complexes and other on-site emergency situations. These nozzles are designed or aggressive industrial environment, and most comply with the current edition of the UL 401 standard.

Key Features

  • Most models are UL Listed to current edition of the UL401 standard for combating class A & B fire

  • Flush feature enables debris passage through the nozzle with no adverse effect on the functionality of the nozzle

  • Knurled grip ensures fast deployment and shutoff of the nozzle

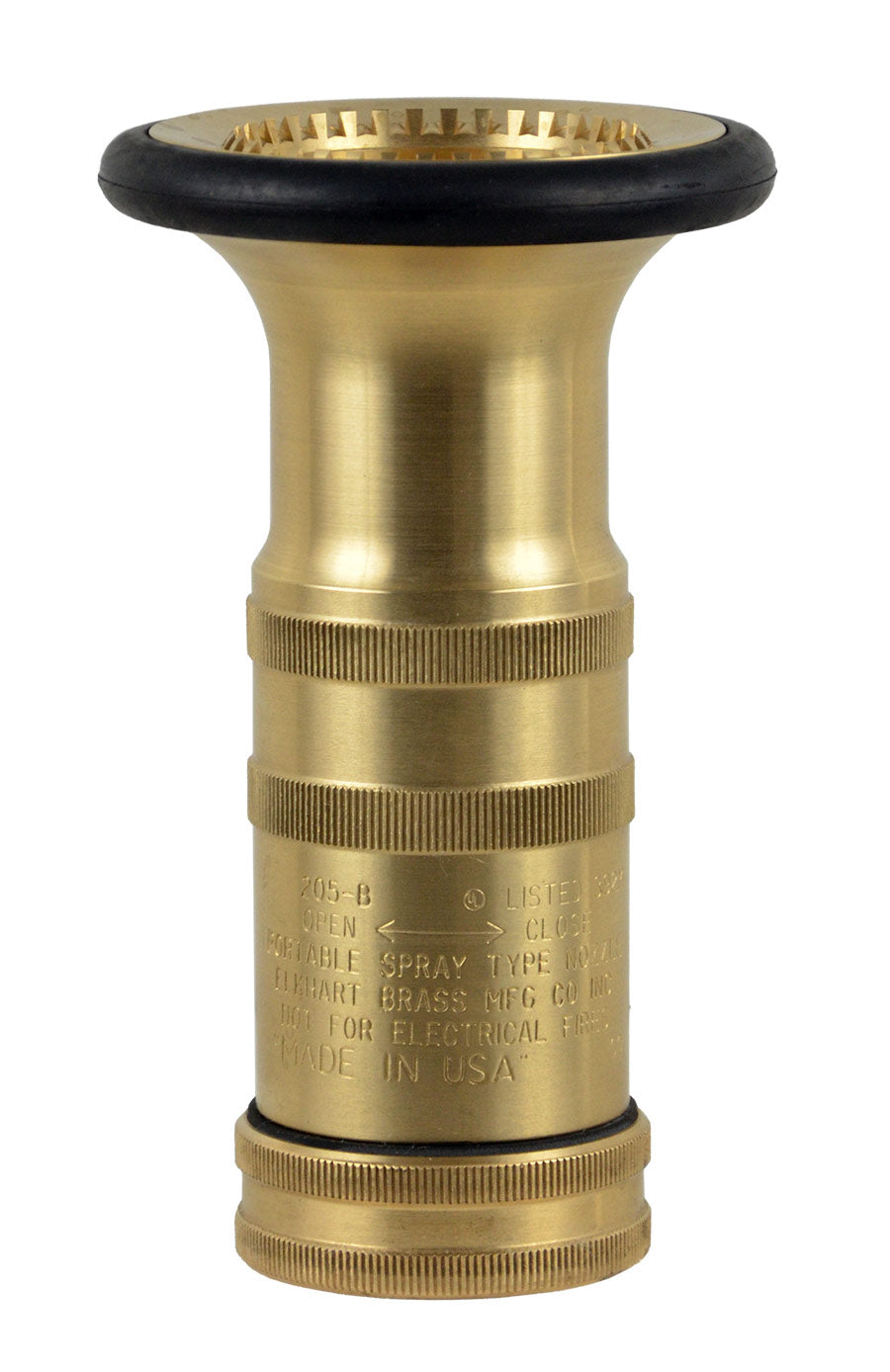

205-B Industrial Nozzle

Constructed out of brass materials, 205-B nozzles are built to last and are maintenance free. They are easy to operate and provide straight/jet stream, narrow fog and wide fog stream patterns.

  • 170 gpm @ 100 psi (650 LPM @ 7 BAR)
  • 250 gpm @ 100 psi (950 LPM @ 7 BAR)
  • 1.5″ inlet

205-EB Electrical Fog Nozzle

205-EB electrical fog nozzles are designed to be used in class ‘C’ hazard applications and utilize only fog capabilities in combating blazes at 10-feet or more from electrical equipment with up to 250,000 voltage.

  • 170 gpm @ 100 psi (650 LPM @ 7 BAR)
  • 250 gpm @ 100 psi (950 LPM @ 7 BAR)
  • 1.5″ inlet
  • Consistent fog pattern to prevent electrocution from fighting fires of energized electrical equipment

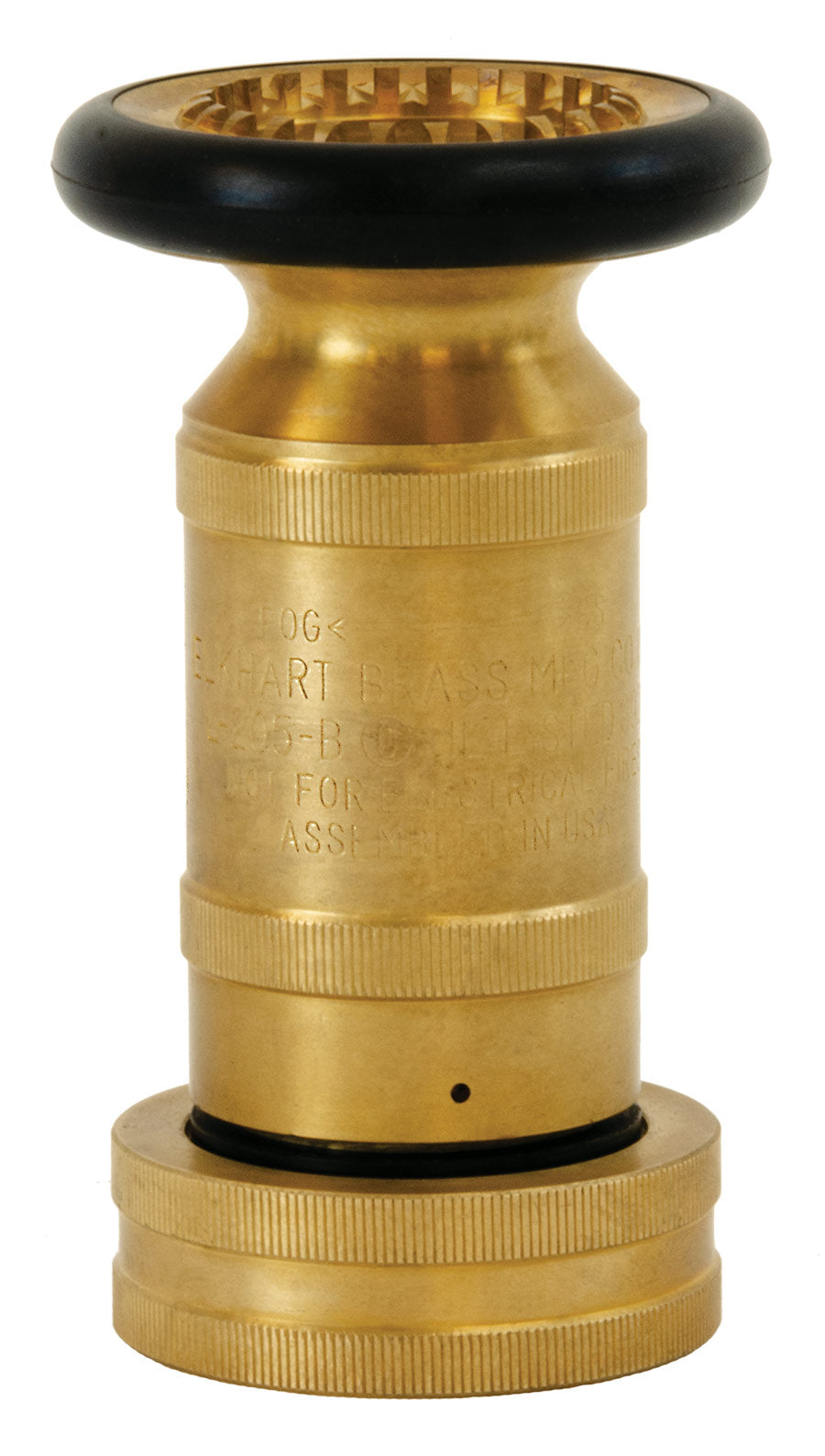

L-205-B Industrial Nozzle

Constructed out of brass materials, L-205-B nozzles are built to last and are maintenance free. They are easy to operate and provide straight/jet stream, narrow fog and wide fog stream patterns.

  • 60 gpm @ 100 psi (230 LPM @ 7 BAR)
  • 95 gpm @ 100 psi (360 LPM @ 7 BAR) UL Listed
  • 125 gpm @ 100 psi (475 LPM @ 7 BAR) UL Listed
  • 1.5″ inlet

L-205-EB Electrical Fog Nozzle

The L-205-B electrical fog nozzles are designed to be used in class ‘C’ hazard applications and utilize only fog capabilities in combating blazes at 10-feet or more from electrical equipment with up to 250,000 voltage.

Constructed out of brass materials, L-205-B nozzles are built to last and are maintenance free. They are easy to operate and provide straight/jet stream, narrow fog and wide fog stream patterns.

  • 60 gpm @ 100 psi (230 LPM @ 7 BAR)
  • 95 gpm @ 100 psi (360 LPM @ 7 BAR) UL Listed
  • 125 gpm @ 100 psi (475 LPM @ 7 BAR) UL Listed
  • 1.5″ inlet
  • Consistent fog pattern to prevent electrocution from fighting fires of energized electrical equipment

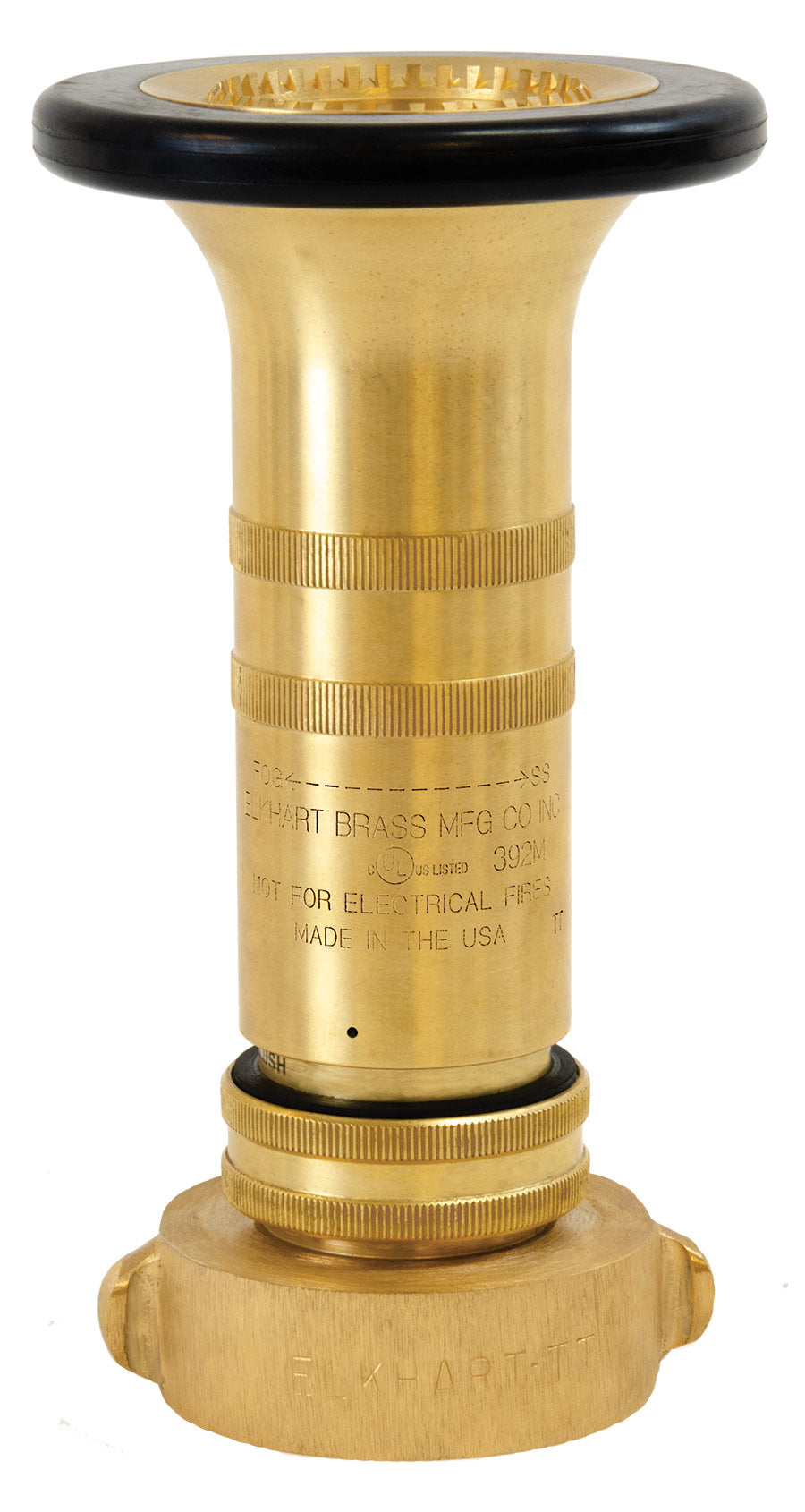

D-205-B Industrial Nozzles

Constructed out of brass materials, D-205-B nozzles are built to last and are maintenance free. They are easy to operate and provide straight/jet stream, narrow fog and wide fog stream patterns.

  • 170 gpm @ 100 psi (650 LPM @ 7 BAR)
  • 250 gpm @ 100 psi (950 LPM @ 7 BAR)
  • 1.5″ inlet
  • UL Listed

D-205-EB Electrical Fog Nozzle

The L-205-B electrical fog nozzles are designed to be used in class ‘C’ hazard applications and utilize only fog capabilities in combating blazes at 10-feet or more from electrical equipment with up to 250,000 voltage.

  • 170 gpm @ 100 psi (650 LPM @ 7 BAR)
  • 250 gpm @ 100 psi (950 LPM @ 7 BAR)
  • 2.5″ inlet
  • Consistent fog pattern to prevent electrocution from fighting fires of energized electrical equipment
