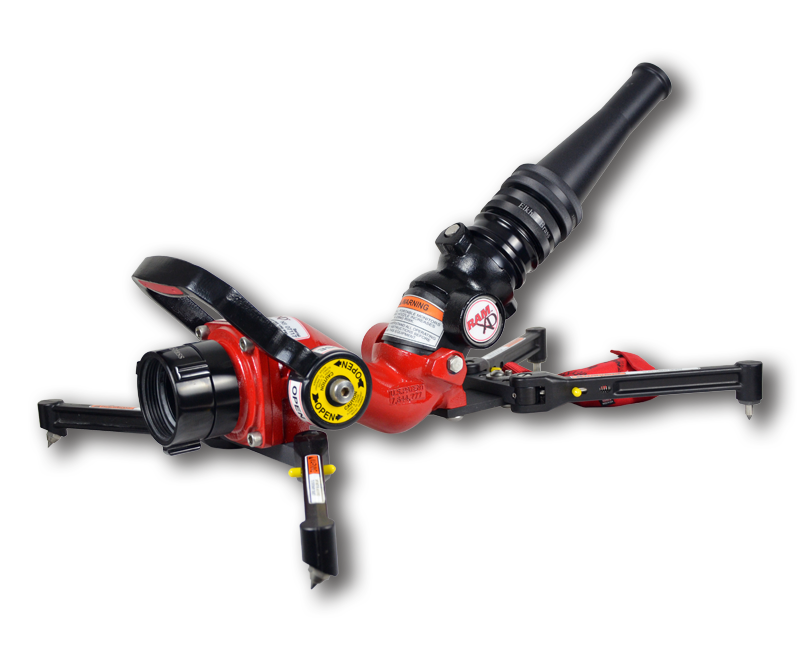

Elkhart RAM XD Monitor 8296***

Ideal for quick attack, high-rise, and industrial applications, the RAM XD™ Rapid Attack Portable Monitor can be easily deployed by a single firefighter to flow up to 500 gpm (1900 LPM) fast! Lightweight and compact, the RAM XD can lower down to 14 degrees above horizontal making it easy to flow into overhead doors, traditional size man doors, or store fronts. Its angled waterway shape and four foldout legs help to harness nozzle reaction making an extremely stable and safe design. It delivers the best stream quality and reach at only 75 psi (5 BAR) nozzle pressure. Lock pin holds valve in closed position preventing accidental opening while moving the unit on a charged hose line. A safety strap is attached along with a storage pouch.

• Lightweight, compact monitor easily deployed by single firefighter

• Up-down travel range: Vertical +14 degrees to +51 degrees (manned) +35 degrees to plus 51 degrees (unmanned) Left-Right travel 20 degrees each way (40 degrees total)

• Only 9 psi (0.6 BAR) friction loss at 500 gpm (1900 LPM)

• 2.5″ female swivel inlet x 2.5″ male outlet

  Options

  RAM XD Nozzles & Accessories

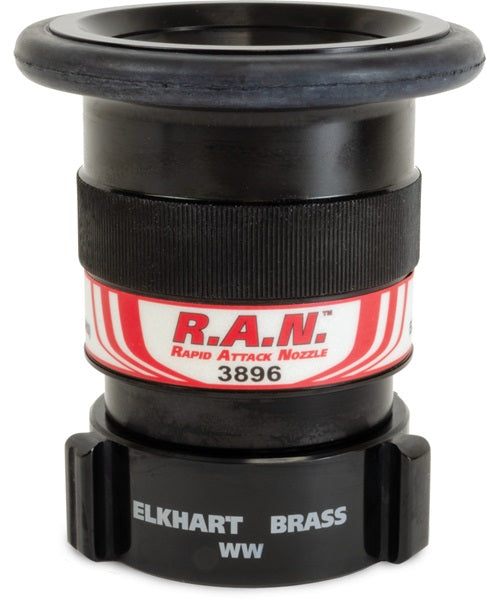

  3896 R.A.N. Nozzle (Rapid Attack Nozzle)

  • Rated for 500 gpm @ 75 psi (1900 LPM @ 5 BAR)
  • Built in stream shaper for incredible reach and stream quality
  • Hard coated aluminum finish
  • 2.5″ female swivel inlet

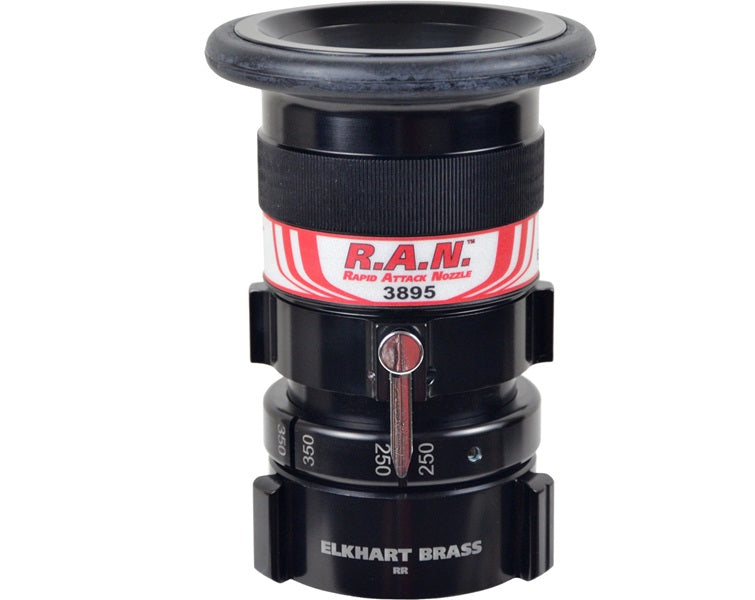

  3895 Selectable Flow R.A.N. Nozzle (Rapid Attack Nozzle)

  • Selectable flow rates: 500 gpm (1900 LPM), 350 gpm (1330), and 250 (950 LPM) gpm at 75 psi (5 BAR)
  • Built in stream shaper for incredible reach and stream quality
  • Hard coated aluminum finish
  • 2.5″ female swivel inlet

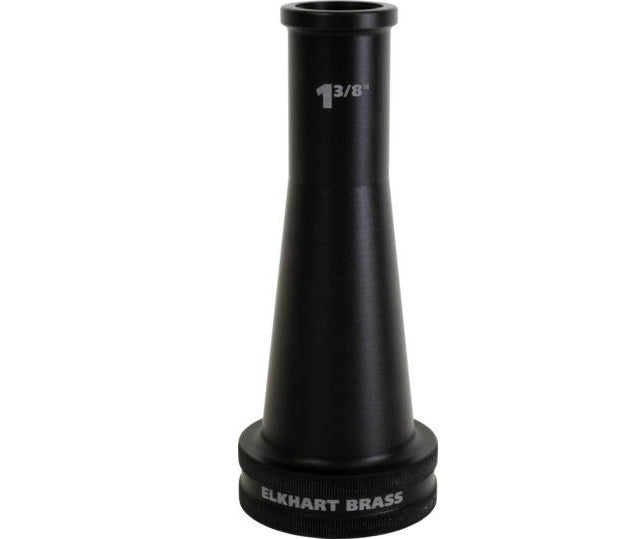

  181-A Deluge Tip

  • 1-3/8″ Discharge Size
  • Rated for 500 gpm @ 80 psi (1900 LPM @ 5.5 BAR)
  • Hard coated aluminum finish
  • 2.5″ female inlet

  ST-197A Triple Stacked Tip

  • Discharges sizes of 1″ / 1-1/4″ / 1-1/2″
  • Rated for 265 gpm / 413 gpm / 596 gpm @ 80 psi (1000 LPM / 1560 LPM / 2250 LPM @ 5.5 BAR)
  • Hard coated aluminum finish
  • 2.5″ female inlet
