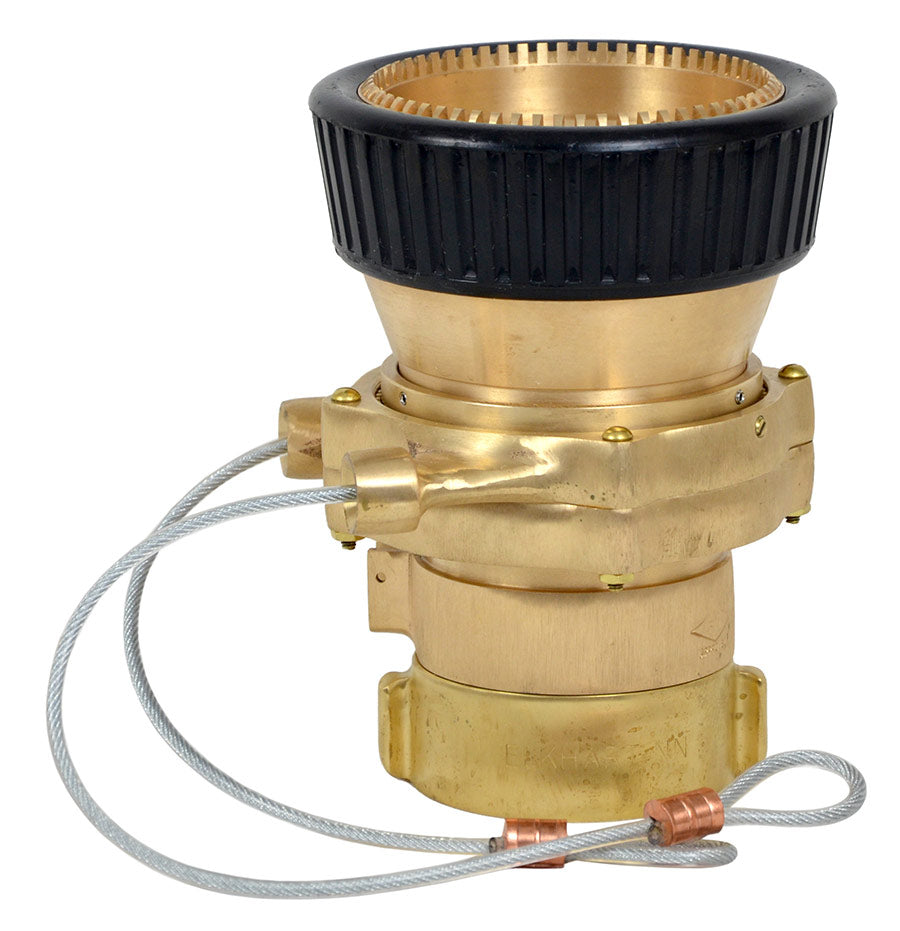

Elkhart Setect-O Stream Remote Control for Elevated Monitor CJ-B-RC, CJN-B-RC***

Data sheetcatalog-f9-06-11

The Elkhart Brass Select-O-Stream® nozzles are constant flow with a fully machined waterway that ensures excellent stream quality. The Select-O-Stream nozzles are FM Approved.

• Brass construction for corrosive and non-corrosive environment applications

• Pattern easily changed under flowing conditions from straight stream to 90° fog.

• Grease zert fitting for easy lubrication of tip threads.

• Satin and cast brass finish.

• No-twist shutoff.

CJ-B-RC

• Flow Rates
  • 350 gpm @ 100 psi (1330 LPM @ 7 BAR)
  • 500 gpm @ 100 psi (1900 LPM @ 7 BAR)
• Stream adjustment via cables for use with manual elevated monitors
• 2.5″ inlet
• FM Approved

CJN-B-RC

• Flow Rates
  • 750 gpm @ 100 psi (2900 LPM @ 7 BAR)
  • 1000 gpm @ 100 psi (3800 LPM @ 7 BAR)
• Stream adjustment via cables for use with manual elevated monitors
• 2.5″ inlet
• FM Approved
