Elkhart Siamese Valve w/ Stortz outlet w/wo gated***

Plain and clappered Siamese

Used to converge several flows into a single flow, usually in situations where seconds count, a Siamese must be both reliable and intuitive to use. Clappers allow additional lines to be added without interrupting flow. As with all Elkhart products, years of dependable service are to be expected from an Elkhart Siamese. While all the Siamese are finished in red urethane enamel, the Elk-O-Lite^® versions feature hard anodized trim and the brass versions offer satin brass trim. Complete with adjustable Relief Valve

9703 has 3, 2.5 FNH inlets and 1 5.0" Storts, 2-way relief valve  09703001-5

9722 has 2, 2.5 FNH inlets and 1 4.0" Storts, 2-way relief valve 09722001-4

9722 has 2, 2.5 FNH inlets and 1 5.0" Storts, 2-way relief valve 09722001-5

9723 has 3, 2.5 FNH inlets and 1 4.0" Storts, 3-way relief valve 09723001-4

9723 has 3, 2.5 FNH inlets and 1 5.0" Storts, 3-way relief valve 09723001-5

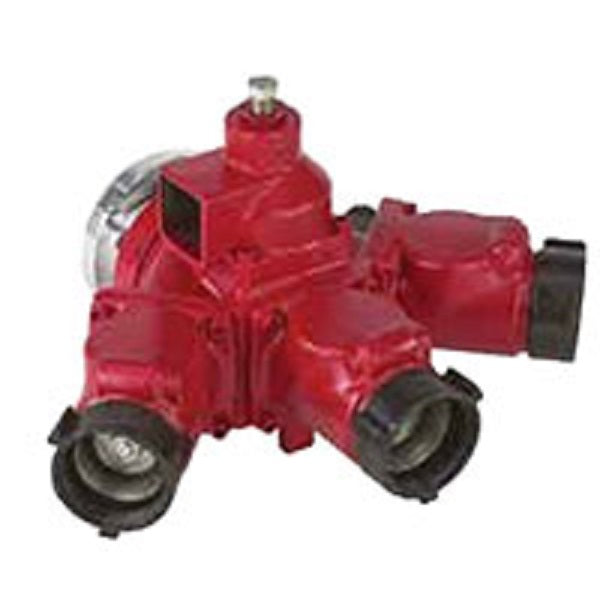

Model number 9703

• (3) 2.5″ female swivel inlet x (1) 5.0″ Storz outlet

• Adjustable relief valve (75-250 psi)
• Locking Storz
• For ground use

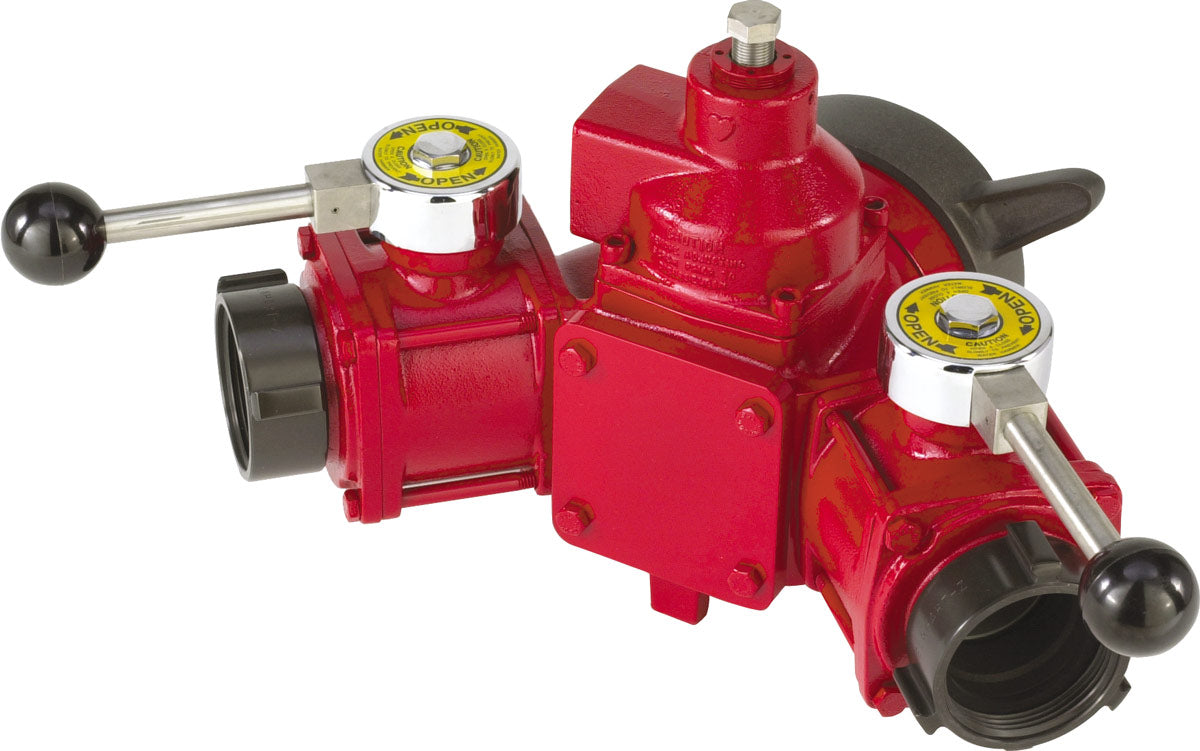

Model Number 9722

• (2) 2.5″ female swivel inlet x (1) 4.0″ Storz outlet
• (2) 2.5″ female swivel inlet x (1) 5.0″ Storz outlet
• Built in adjustable pressure relief valve
• Acetal valve balls with adjustable neoprene seats
• Self-Locking valve handles
• Durable, lightweight aluminum construction
• Finish red urethane enamel with hard anodized trim

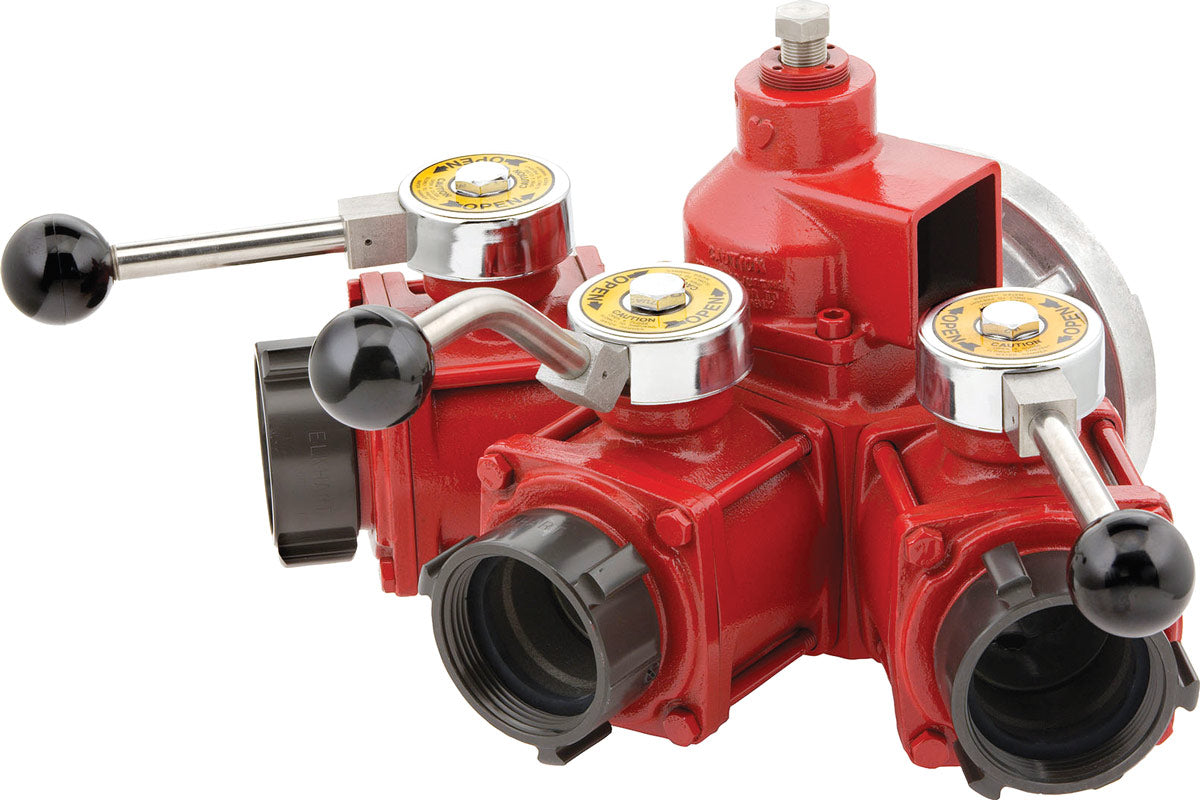

Model number 9723

• (3) 2.5″ female swivel inlet x (1) 4.0″ Storz outlet
• (3) 2.5″ female swivel inlet x (1) 5.0″ Storz outlet
• Independent spring loaded clappered Siamese design
• Built in adjustable pressure relief valve
• Built in 0.75″ drain valve
• Durable, lightweight aluminum construction
• Finish red urethane enamel with hard anodized trim
