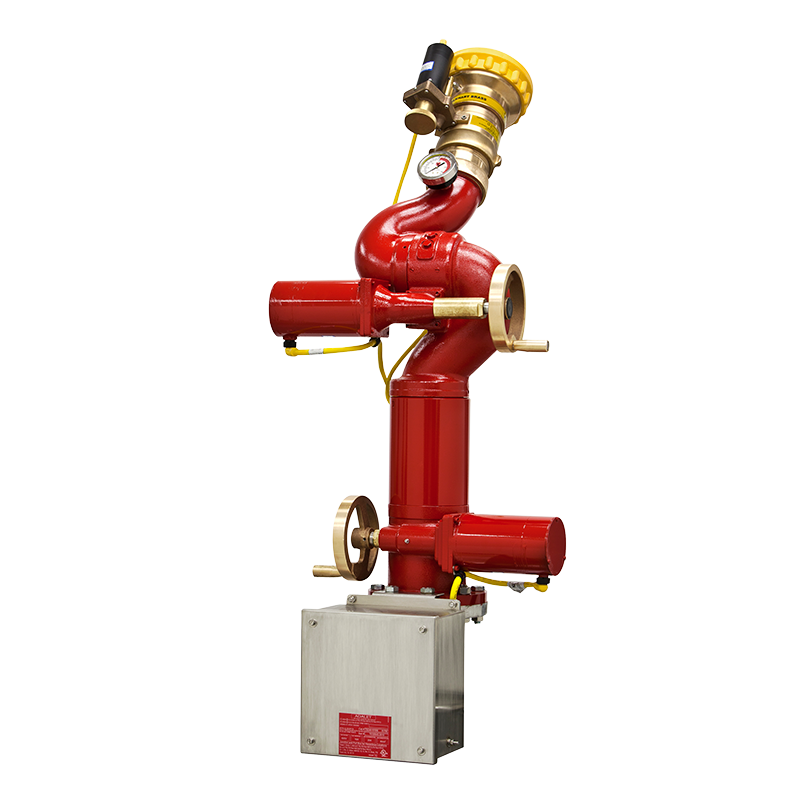

Elkhart Spit-Fire® Hazardous Location Electric Monitor 8394**

Spec sheet8394053-Brass-Spit-Fire

Specsheet98343000_IND_Spitfire_Manual

Elkhart Brass products provide a range of solutions that are designed to meet the flexibility and reliability required for modern fire suppression applications. Our remote controlled monitor system for hazardous locations is designed for use in many different types of industrial settings where the possibility of catastrophic fire incident is high.

Elkhart Brass offers a complete fire suppression system composed of hardware, electrical capabilities, programming, and integration of the hardware and software within the facility.

The UL Class I, Div 2 ERCM system is designed to provide a reliable industrial fire protection solution for Class I or Division 2 classified locations. The electric monitor and nozzle are FM Approved and the control panel is U.L. Listed

Spit-Fire® Monitor Features:

• Construction: All brass with vaned 4” waterway
• Mounting Flange: 4” 150# flat-face ANSI flange raised face flange available as option
• Discharge: 3½” NHT male outlet
• Stream Shaper: #284-B brass shaper included
• Flow: 2000 GPM max flow @ 200 PSI max working pressure
• Motors: 120 VAC, TENV synchronous motors (non-arcing)

o Constant torque output and current in start, running, and stall

o UL Recognized for Class I, Division 2 use, IP67 rated

o Will not cause damage or increase in current when motor is stalled

o Instantaneous start, stop, and reverse

o Residual (Power Off) torque is always present

o Long life and exceptional reliability

o 120 VAC, 50/60 Hz., 1 Phase, 0.80 Amp current per motor suitable for continuous use

• Junction Box: Corrosion resistant ATEX certified & UL listed enclosure with terminals for

hazardous locations. Stainless Steel motor cable junction box with bracket to attach to monitor,

flange base included.

o UL listed for NEMA 4X, IP66

• Range of Motion: Monitor stops are factory set at 346° horizontal (+173° to -173° from front

center), and 135° vertical (+90° to -45°)

• Rate of Horizontal Motion: 0.139 Sec/°
• Manual Override: Hand wheels provided for vertical and horizontal movements. Hand wheel

will not rotate when monitor is operated electrically.

• Temperature Rating: Tested to FM standards at -40°F/C. See Specifications section for

more details.

• Meets NEC (NFPA 70) Article 501 requirements for use in Class I, Groups A, B, C, & D, Division 2

& Article 505 – Class I, Zone 2, A Ex nA IIC T4 hazardous location areas.

• Paint: 2-part urethane, color RAL 3003 Red (Standard). Contact Elkhart Brass for other color options.
• FM Approved: Includes whole monitor assembly (motors, cables, junction box, etc.)

o FM Approved for Class I, Division 2 use, Groups A, B, C, & D, T4

o Motors and Cables FM rated to IP67, Junction Box FM rated to IP66
