Elkhart SpitFire Fire Monitor, 8394
Elkhart SpitFire Fire Monitor, 8394
Couldn't load pickup availability
2023-EB-Full-LineCatalog-INDUSTRIAL_V2
The Elkhart Brass manual Spitfire® monitors are designed to provide up to 360° horizontal rotation with dual handwheel or tiller bar control mechanism options. The Spitfire manual monitor is FM Approved to the current edition of FM1421 standard and suitable for corrosive and non-corrosive environment applications.
Models:

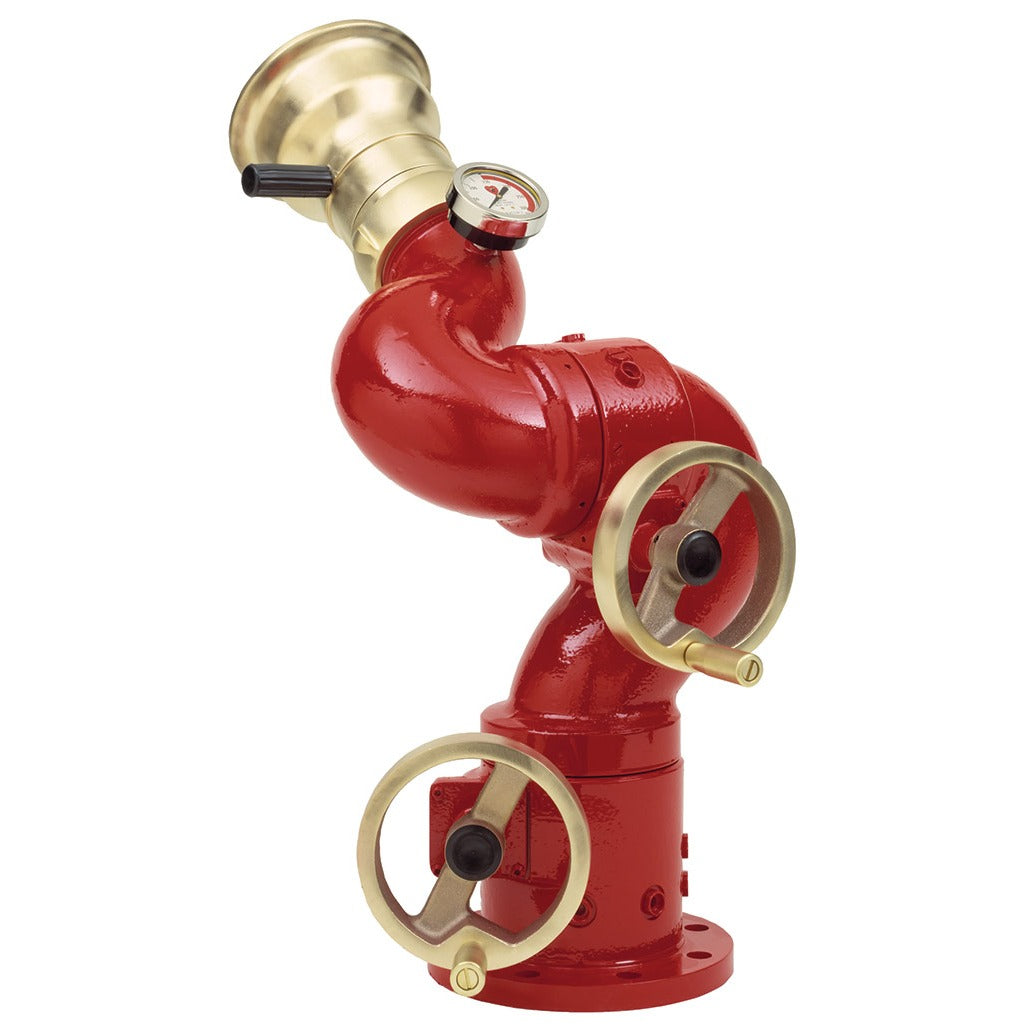

8394-02 Handwheel option PN# 08394021

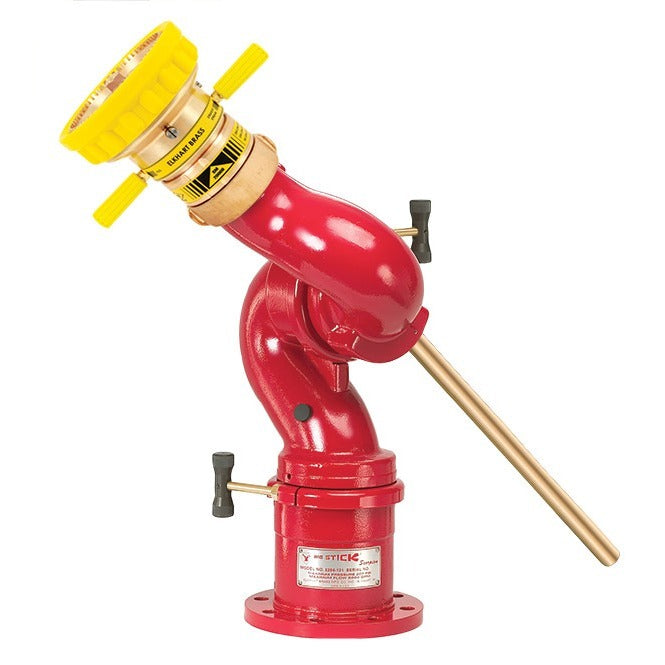

8394-121 Tiller Bar PN# 08394121
Key Features
2000 gpm (7550 LPM) maximum
200 psi (14 BAR) maximum operating pressure
-45° to +90° (135°) vertical travel
360° continuous horizontal travel
4″ waterway with cast-in vane to optimize stream reach and performance
4" 150# Flange
Brass Construction
Easy to operate tiller bar or dual handwheel control options
FM Approved for use with Elkhart Brass WPO-2000™ enables automation of the horizontal oscillation without the need of electric control unit
Rugged brass construction for use in corrosive environments and seawater applications
Model SM-2000B PN:03992002
- Flow range of 500-2000 gpm @ 80 psi (1900-7550 LPM @ 5.5 BAR)
- Large handles for manual stream pattern adjustment
- 3.5″ Inlet
Model SM-1250B PN:03779411
- Flow range of 350-1250 gpm @ 75 psi (1330-4750 LPM @ 5 BAR)
- Large handles for manual stream pattern adjustment
- 3.5″ inlet
- FM Approved
