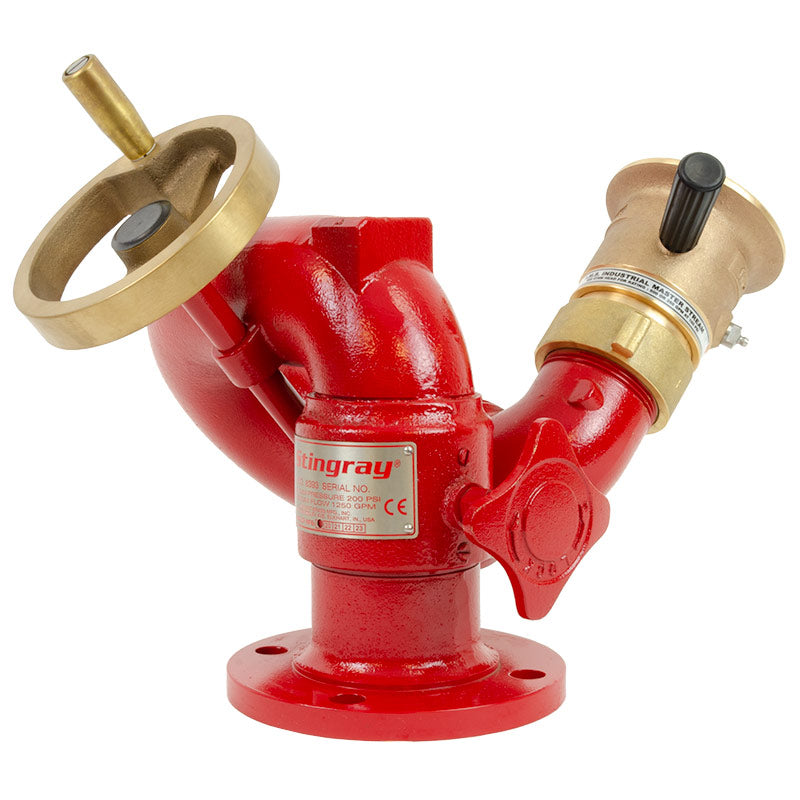

The Elkhart Brass Stingray® manual monitor low profile design enables use in space constraint applications. The Stingray monitor is FM Approved to the current edition of the FM1421 standard and suitable for corrosive and non-corrosive environment applications
Key Features
1250 gpm (4750 LPM) maximum flow rate
200 psi (14 BAR) maximum operating pressure
-60° to +90° (150°) vertical travel range
360° continuous horizontal travel rang
2 1/2" outlet
Full 3″ unobstructed waterway Inlet
Available with 3"150#flg and 4"150#flg
Handwheel control for vertical discharge travel range

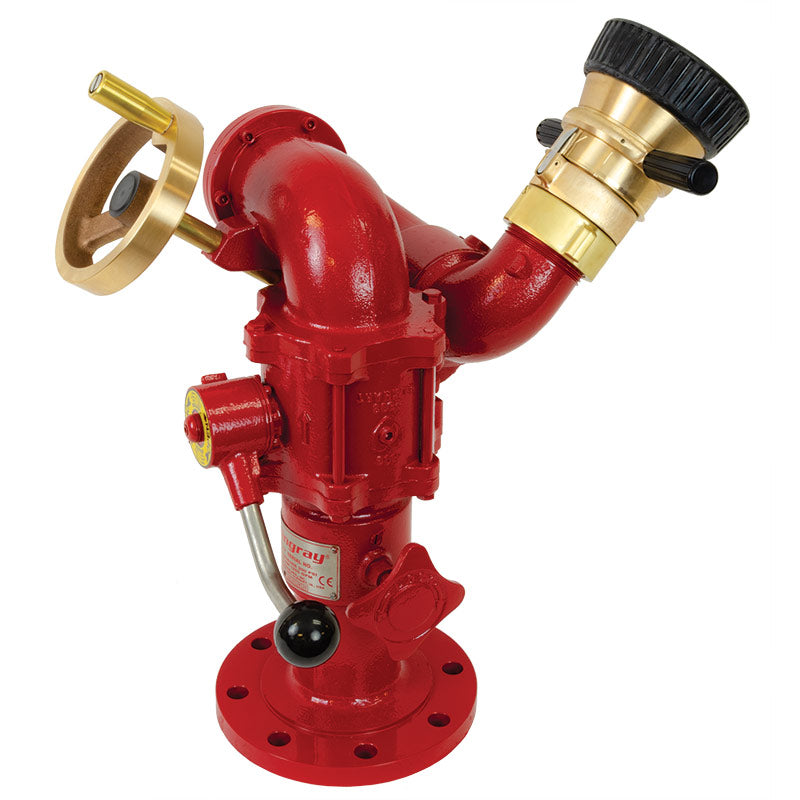

Available with built-in ball valve, Model 8393-IV
Rugged brass construction for use in corrosive environments and seawater applications
Model SM-1250B PN:03779401
Flow range of 350-1250 gpm @ 75 psi (1330-4750 LPM @ 5 BAR)
Large handles for manual stream pattern adjustment
2.5″ inlet
FM Approved

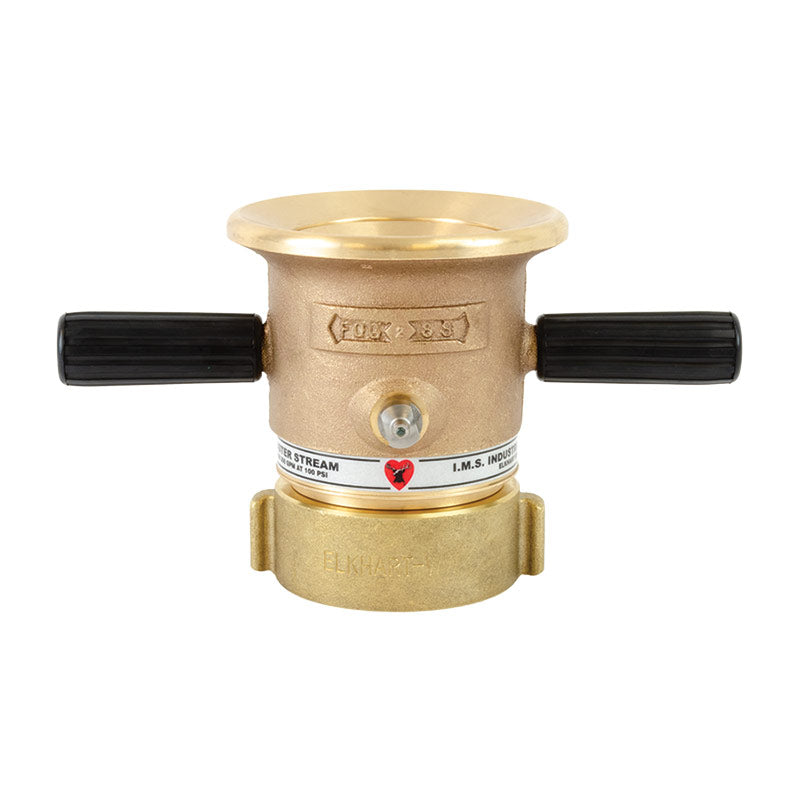

IMS-750 PN:03894001
Flow Rate: 750 gpm @ 100 psi (2900 LPM @ 7 BAR)
2.5″ inlet
FM Approved

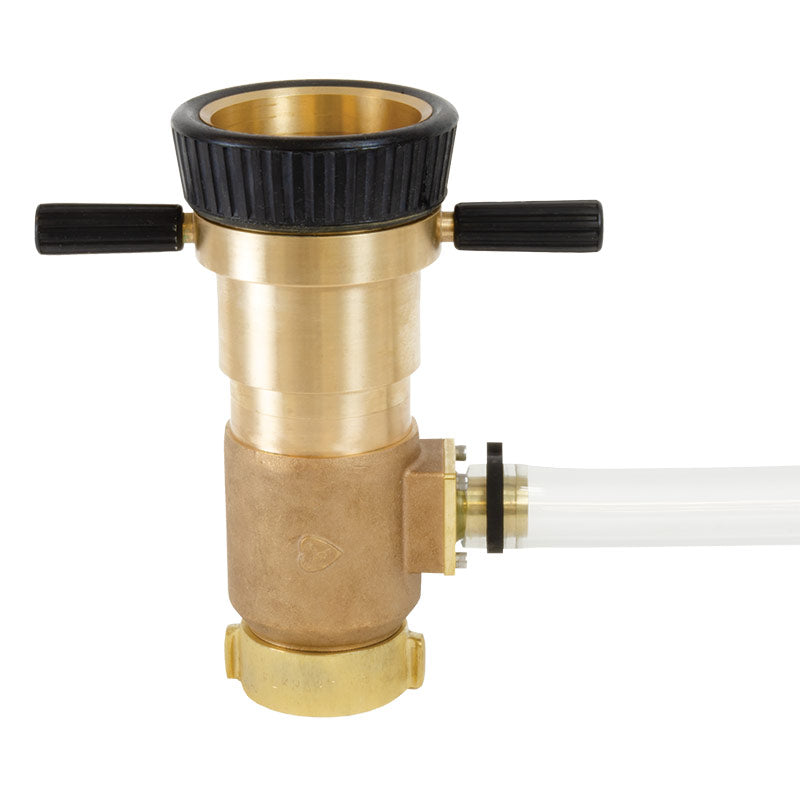

HF-13-750 PN:00088601
Rated for 715 gpm (2700 LPM)
Clear vinyl 9′ (2.7 m) pick up hose included
Pick up rates: 1% and 3% 2.5″ female swivel inlet
Cast and satin brass finish
Proportioning disc or metering valve options for regulating foam
