Elkhart Water Thief BG104, 9743, 9843, Stortz inlet***

$5,985.00 USD

Sale Sold out

Water Thief #9843. 5.0 STZ inlet\, (2)2.5 MNH outlets\, (1)5.0 STZ outlet\, Gate Valve #9843. 4.0 STZ inlet\, (2)2.5 MNH outlets\, (1)4.0 STZ outlet\, Gate Valve #9743. 5.0 STZ inlet\, (2)2.5 MNH outlets\, (1)5.0 STZ outlet\, 1/4 TRN Valve #9743. 4.0 STZ inlet\, (2)2.5 MNH outlets\, (1)4.0 STZ outlet\, 1/4 TRN Valve BG-104-A- 2.5 FNH inlet (2)1.5\, (1)2.5 NMH outlets\, Elk-O-Lite\, w/Guage BG-104 - 2.5 FNH inlet (2)1.5\, (1)2.5 NMH outlets\, Brass

Elkhart makes the 9743 and the 9843 Water thief with a Stortz inlet and outlet, and has 2, 2.5 outlets with cutoffs

BG-104 PDF Specsheet

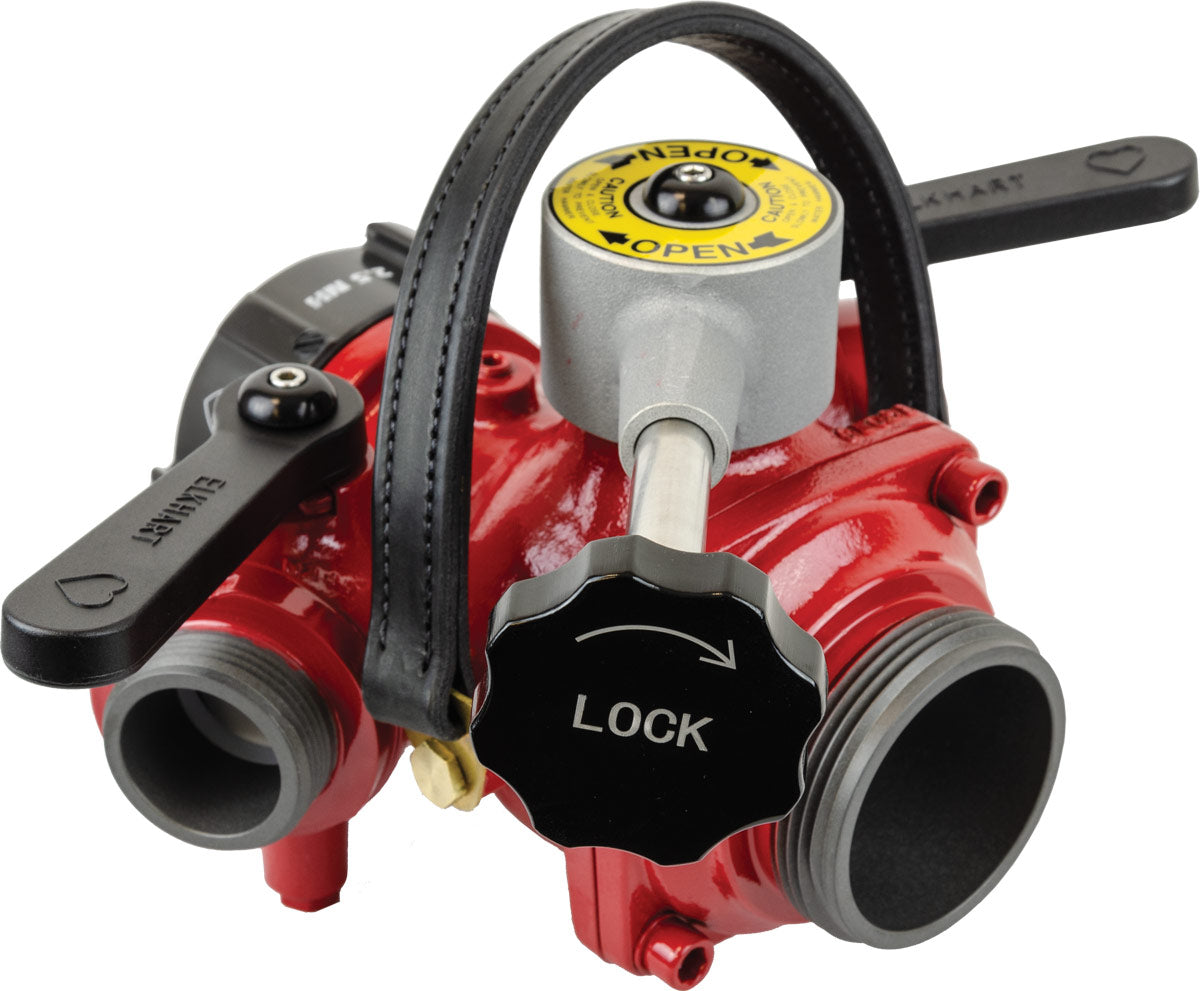

BG-104A Water Thief Aluminum

(1) 2.5″ female swivel inlet x (1) 2.5″ male outlet and (2) 1.5″ male outlets
Acetal valve balls with adjustable neoprene seats
Rugged aluminum handles
Durable, lightweight aluminum construction
Finish red urethane enamel with hard anodized trim

BG-104 Water Thief Brass

(1) 2.5″ female swivel inlet x (1) 2.5″ male outlet and (2) 1.5″ male outlets
Acetal valve balls with adjustable neoprene seats
Rugged aluminum handles
Rugged brass construction
Finish red urethane enamel
Specify: satin brass or chrome plated trim

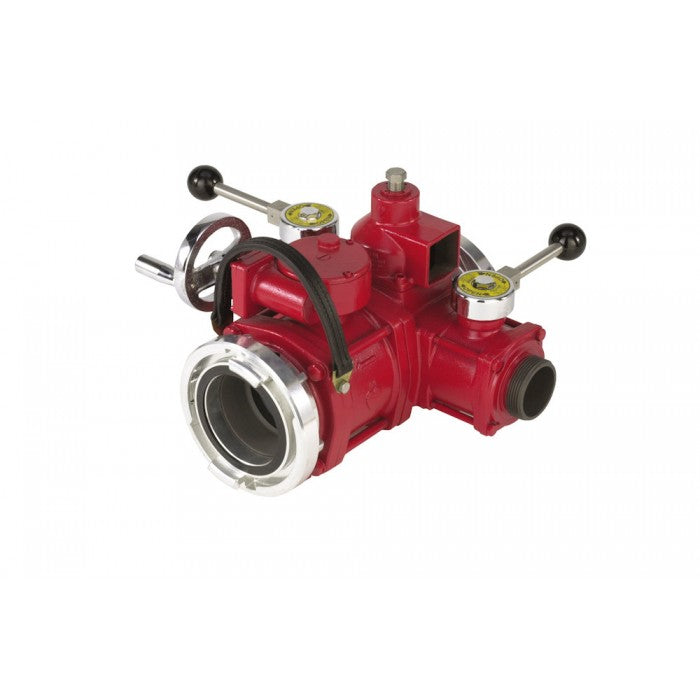

9743 Water Thief

Flow through Storz outlet has a gear actuated quarter turn 4” ball valve with aluminum ball and UHMWPE seat
- Thief outlets are 2.5” full flow, self-locking, Hydro-Loc® , quarter turn, acetal ball valves with neoprene seats
- Adjustable relief valve (75-250 psi

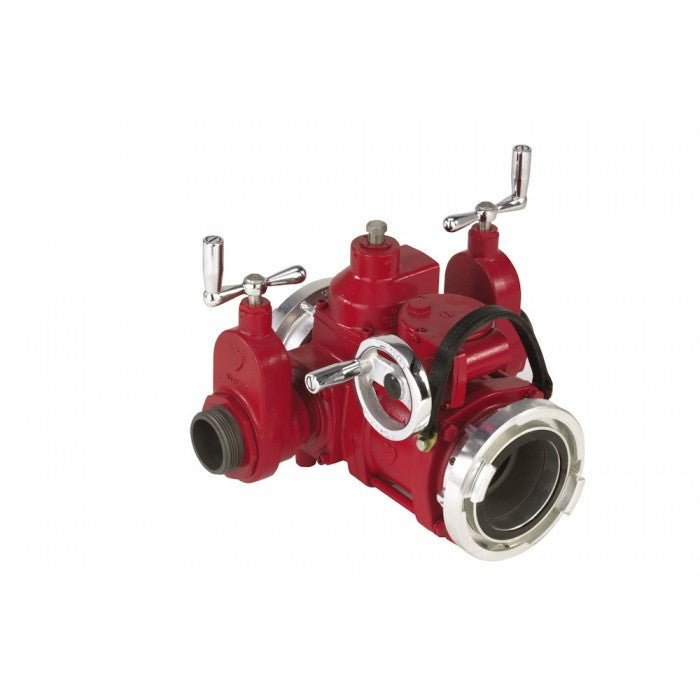

9843 Water Thief

• Flow through Storz outlet is a gear actuated quarter turn 4” ball valve with aluminum ball and UHMWPE seat
- Thief outlets are 2.5” gate valved outlets
- Adjustable relief valve (75-250 psi)
