XD Intake Valves

Spec Sheet XD-Intake-BrochureWeb

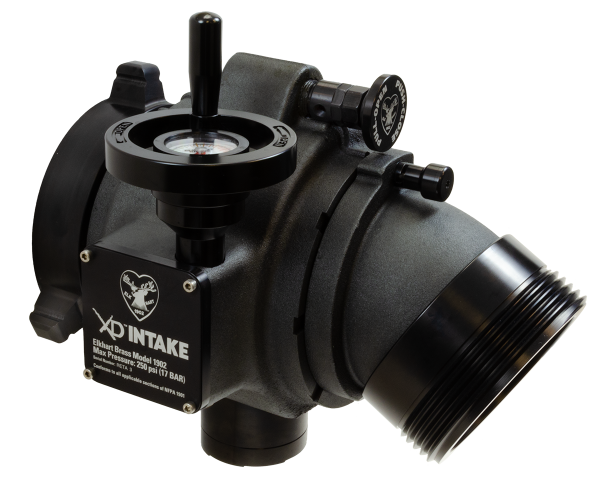

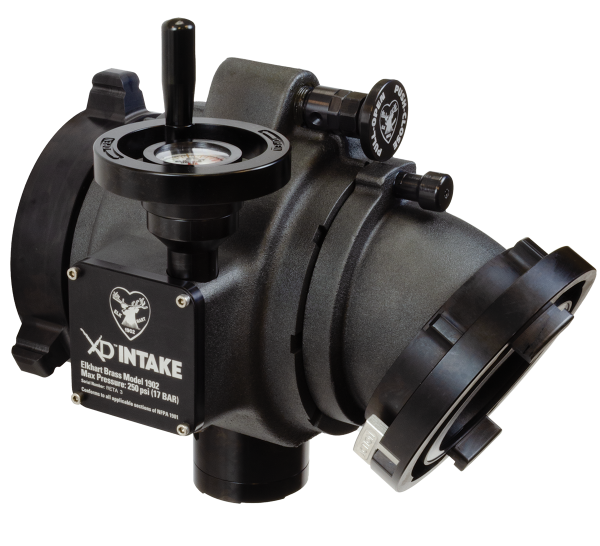

The XD Intake Model 1902 by Elkhart Brass, is a nod to our founding year and a century-plus of innovation. This heavy-duty valve, engineered to regulate water supply intake to your pump, combines a robust design with cutting-edge technology. The Model 1902 symbolizes our enduring legacy and commitment to advancing firefighting equipment.

Key Features

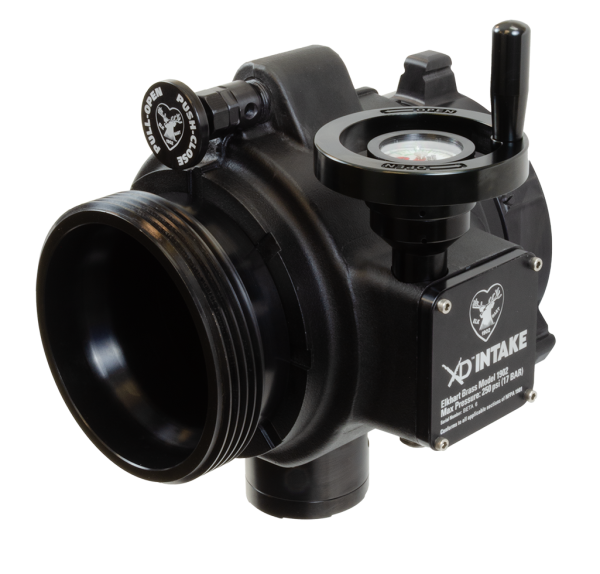

Straight or Low Profile and Left-Hand or Right-Hand handwheel control configurations
Strategically positioned indicator on top, ensuring optimal visibility for easy monitoring and operation
A large Push/Pull pressure-balanced bleeder valve for efficient operation
Primarily aluminum construction for a lightweight yet durable design
All-metal construction in critical components like the Handwheel and Pressure Relief Mechanism, guaranteeing reliability
A smooth-operating handwheel designed to minimize pinch points, enhancing safety and ease of use
The 3-lug pump side swivel outlet simplifies installation
Exceptional pressure loss performance:
- 2 psi at 2000 gpm (.14 BAR @ 7550 LPM) for the 5″ inlet x 6″ Low Profile configuration
- 1 psi at 2000 gpm (.07 BAR @ 7550 LPM) for the 5″ inlet x 6″ Straight Profile configuration
A cutting-edge UHMWPE Seat versus traditional Rubber Seats for enhanced durability and performance

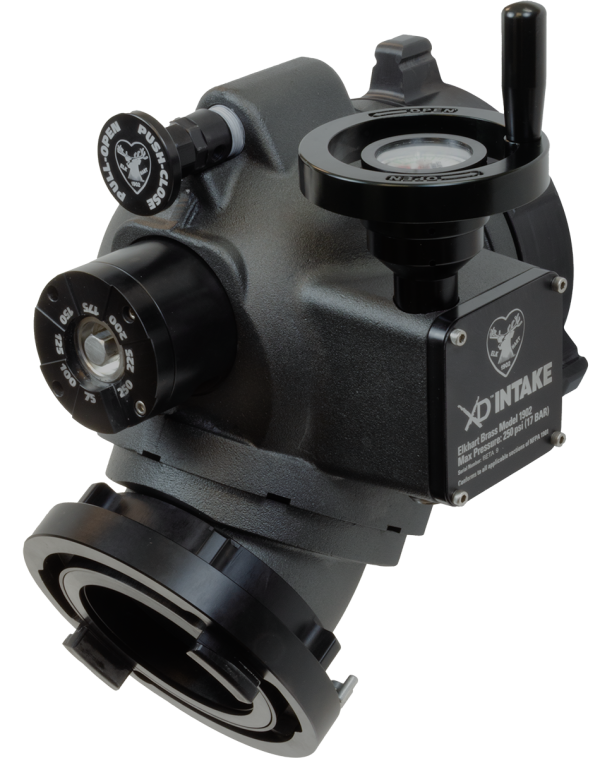

Low Profile configuration includes a front-mounted Pressure Relief Valve (PRV), offering convenient adjustment and accessibility
