TURBOFOAM w/Single Tank LED Display

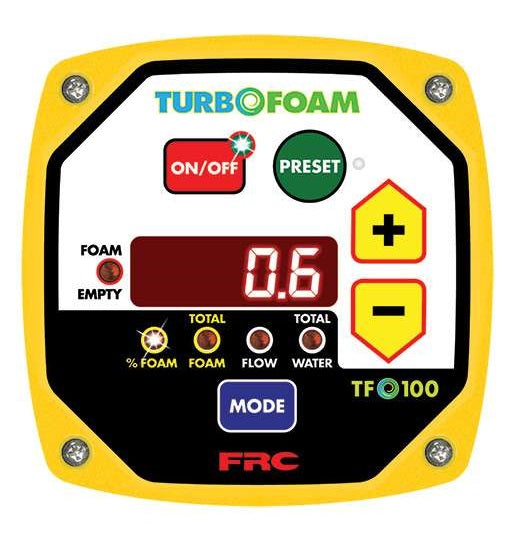

The TurboFoam TFC100 is an automatic regulating direct injection foam proportioning system. It is for use with Class A or Class B foam concentrates. The system features an electric pump that injects foam concentrate directly into the discharge water stream. The TurboFoam TFC100 is for use with a single foam tank. A single 4-digit display and four LED indicators provide system information to the operator. A mode button is used to toggle the display to view foam percent, water flow, or flow totaling.

Basic System

The simplest system, this control is for use with a single foam tank. A single 4-digit display and four LED indicators provide system information to the operator. A mode button is used to toggle the display to view foam percent, water flow, or flow totaling.

STANDARD FEATURES

1.6 gpm (6.0 LPM) Pump

Foam Innovations

The foam pump assembly includes the pump and electric motor along with the foam pump control box. The calibration bypass valve and a pressure relief valve are included as part of this assembly.

Triplex Plunger Pump

Viton seals
Die cast bodies
Forged brass heads
Solid ceramic plungers
Oil level sight glass
Oil reservoir vented cap/dip stick
Oversized roller bearings
Anodized cast cooling fins

Foam Pump Control

Motor power input terminals
Motor speed control circuits
RPM sensor input
System interface
Sealed against water infiltration

Electric Motor

Designed for use in wet environment
Moisture-resistant interior components
Durable white epoxy coating
Endshield drains
RPM sensor
Stainless steel shaft
Built-in cooling fan
(3/4 & 1 HP motors only)

Pressure Relief Valve

Factory set for 400 psi (28 BAR)
Adjustable when required

Calibration Bypass Valve

Calibrated using operational concentrate
Concentrate is returned to system, no waste

TurboFoam Interfaces with TankVision and Insight Ultimate via Datalink.

Provides accurate monitoring of foam tank volume
Displays low foam tank warning
Supplies tank empty information
Displays time remaining for operation at current concentrate usage
Capable of dual tank monitoring

Single Tank Systems

TFC100/TFC200

TFC100/TFC200/TFC300 with Electric Flush Valve

Specifications

Pump Size gpm (LPM)	1.6 (6.0)
Motor Size (horsepower)	1/2
DC Voltage	12 or 24
Maximum Current (Amps)	36 or 18
Maximum Operating Pressure psi (BAR)	400 (28)

System Capacity

Foam Concentration	TFC16 Max. Water Flow gpm (LPM)
0.2%	800 (3028)
0.5%	320 (1211)
1.0%	160 (606)
3.0%	53 (202)
6.0%	27 (101)

Attack Capability

Class A Foam Concentration
Maximum Coverage per Critical Application Rate (Iowa Formula)
Foam Concentration	TFC16 Max. Water Flow cu. ft (cu. m)
0.2%	80,000 (2265)
0.5%	32000 (906)
1.0%	16000 (453)
Class B Foam Concentration
Hydrocarbon @ 0.10 gpm/sq.ft (0.37854 LPM/sq.m)
Foam Concentration	TFC16 sq. ft (sq. m)
1.0%	1600 (149)
3.0%	530 (49)
6.0%	270 (25)
Polar Solvent @ 0.20 gpm/sq.ft (0.757 LPM/sq.m)
3.0%	265 (25)
6.0%	135 (13)

MODELS

TURBOFOAM w/Single Tank LED Display

Part No Long Description

TFC116-025 TURBOFOAM 100, 1.6 GPM, 2.5" disch, 12 VDC

TFC116-030 TURBOFOAM 100, 1.6 GPM, 3.0" disch, 12 VDC

TFC116-040 TURBOFOAM 100, 1.6 GPM, 4.0" disch, 12 VDC

TFC116-050 TURBOFOAM 100, 1.6 GPM, 5.0" disch, 12 VDC

TURBOFOAM Options

TFCoption-EF0 Electric Flush Valve/Panel Button, TFC100/200

TFCoption-FL1 Check Valve, 1", TFC100/200

TFCoption-FS2 Tank Float Switch, Side Mnt

TFCoption-FW0 Check Valve & Strainer, Flush Line, 1/2", TFC100/200

TFCoption-RS0 TURBOFOAM, Remote ON/OFF switch

TFCoption-INFO Information Placards

Options listed may not be available for all models.
