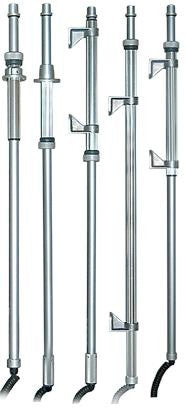

FRC Replacement Extension poles 510, 512, 530, 540, 542

trafficsafetysystem.com/…06/Focus-100.pdf

If you backed the truck into the station again with the light pole still extended this is the page you were looking for. If your "Twist Lock" id damaged, you must replace the entire pole. Light heads will easily move from old pole to new pole, check to see if your wiring is still OK. You can usually move your wiring to the NEW replacement pole. Please call us if you have any questions.

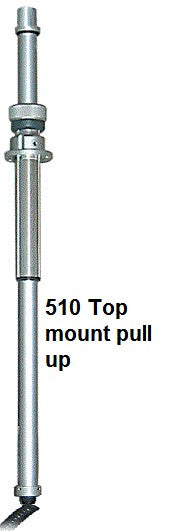

Standard Flange Top Mount Pull/Up Poles 510

The Top Mount Pull-Up pole is sometimes called a Thru-the Deck Top Raise pole. It is excellent for mounting above the pump or non-weatherproof equipment compartments. The pole is raised from the top by pulling up from above the mounting flange. When the pole is in the down position the inner (extension) tube will be inside the compartment. Note: The mounting flange is not weatherproof and may seep water, for a weatherproof flange on a top mount telescopic pole see the 512 Thru-the-Roof series poles.

Thru Cab Roof Poles FCA512

The Thru-the-Roof Push-Up pole is designed with a no-drip flange to mount through the roof of a weatherproof compartment. The pole is raised from the bottom by pushing it up with the knurled handle. The driver or crew can position the light without leaving the cab.

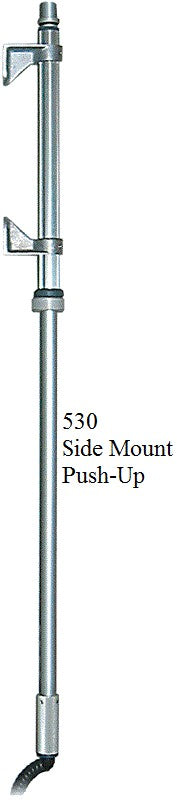

Side Mount Push/Up Poles FCA530

The Side Mount Push-Up pole has a outer tube that qualifies as a NFPA compliant handrail. This grab-handle is grooved to provide a secure grip even when wearing gloves. The standard outer tube is 20" long. The pole is raised from the bottom by pushing it up with the knurled handle.

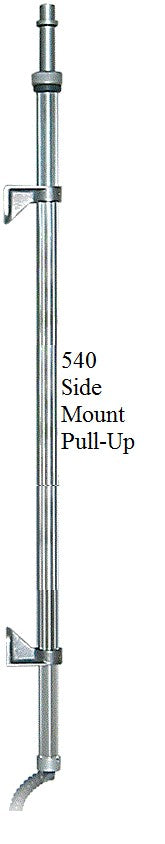

Side Mount Pull/Up Poles FCA540

The Side Mount Pull-Up pole has a outer tube that qualifies as a NFPA compliant handrail. This grab-handle is grooved to provide a secure grip even when wearing gloves. The outer tube is the full length of the pole and it has an internal brake that slows the extension FOCUS Side Mount Pull/Up Poles Short Outer Pole

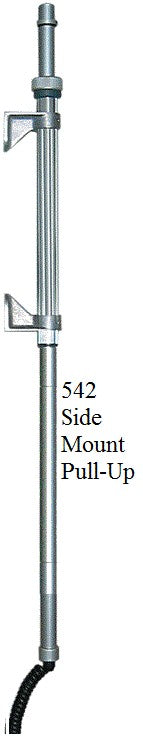

Side Mount Pull/Up Poles Short Outer Pole FCA542

The Side Mount Pull-Up pole has a outer tube that qualifies as a NFPA compliant handrail. This grab-handle is grooved to provide a secure grip even when wearing gloves. The standard outer tube is 20" long. The pole is raised from the top by pulling up from above the safety twist lock.
