THROTTLE XCEL Engine Throttle and Engine Displays

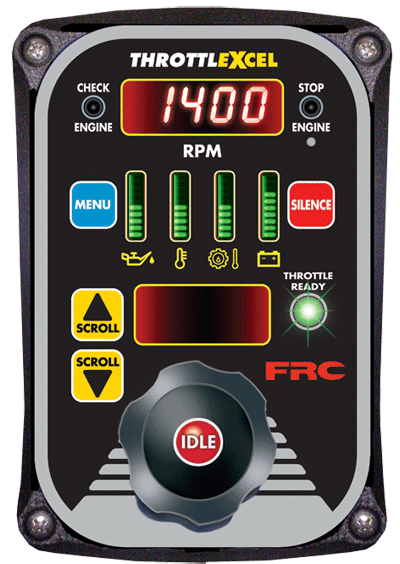

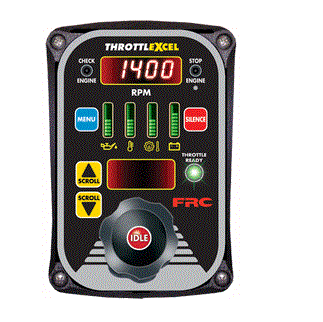

\nThe ThrottleXcelis an all-in-one instrument panel that integrates a traditional style remote hand throttle with engine monitoring and display. It provides engine control as a remote throttle or it can be programmed as an engine governor. \n \nThe ELA200 models are programmed to operate in one of the following control modes dependent on requirements, engine type, and wiring. \n

\n
• Throttle Control Mode:In this mode the ThrottleXcel is a traditional remote engine hand throttle and provides manual control of the engine RPM.
\n
• Governor Control Mode: In this mode the ThrottleXcel is an engine governor and maintains a constant engine RPM. It eliminates the need to make throttle adjustments as the engine load changes.
\n

\nRPM adjustments are made in both modes by turning the control knob. The engine can be brought down to idle quickly after operation with the touch of the red idle button. \n \nThe four LED bar graphs provide constant display of safe operating ranges for engine oil pressure, engine coolant temperature, transmission temperature, and battery voltage. They do not show exact numbers or units of measure. Detailed information is shown in the message display when the MENU button is pressed. Engine hours are also shown. \n \nAll controls and indicators are located on the front of the control module. \n

STANDARD FEATURES

\n

\n
• J1939 CAN Bus for Engine Information
\n
• Manual or Automatic Control of Engine RPM
\n
• Powers Up at Engine Idle RPM
\n
• Interlock Signal Recognition with Throttle Ready LED
\n
• Return to Engine Idle With the Push of a Button
\n
• Diagnostic Capabilities
\n
• High Idle
\n
• Displays and LEDs Automatically Adjusted for Day or Night Operation
\n
• Audible Alarm Buzzer (Optional)
\n
• KPa / Bar (Optional)
\n

\nThe ThrottleXcel is available in various models. Each model is programmed to interface with specific engines. All models provide the same functions, controls, and digital readouts.
