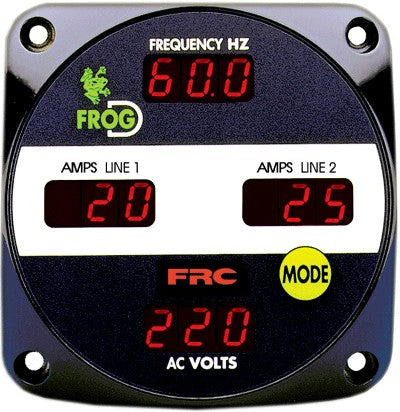

Frog D Generator Governors FDA102-A00
Frog D Generator Governors FDA102-A00
Regular price
$2,278.00 USD
Regular price
Sale price
$2,278.00 USD
Quantity
Couldn't load pickup availability
The FROG generator governor monitors and regulates PTO driven generators to maintain a steady frequency of 60 Hz. It has a built-in generator hour meter, options for audible alarms, and is available for 50 or 60 Hz generators. For Cummins iS, Navistar and DDEC applications
FROG D Single Phase for Cummins iS, Navistar and DDEC
Spec Sheetfra100 Frog D
The FROG generator governor monitors and regulates PTO driven generators to maintain a steady frequency of 60 Hz.
The FROG provides a compact way to comply with NFPA requirements for instrumentation on a line voltage power source rated at 8 kW or larger. (NFPA 1901, 2003 Edition, 23.4.6.3.)
The FROG is a generator governor and a 'generator output display panel' in the same module. It regulates the frequency of the generator by adjusting the engine speed. This controller will automatically maintain a steady speed regardless of the engine or generator load.
STANDARD FEATURES
- Displays Frequency (in Hertz)
- Displays Current (in Amps) on Two Lines
- Displays Voltage (in Volts)
- Displays Total Accumulated Run Time Hours
- Saves Panel Space (Multiple Meters in one Compact Display)
- Interlock Signal Recognition
- Engine Over-Speed Protection
