INSIGHT PLUS Digital Pressure and Flow Indicator

fpa500 spec sheet

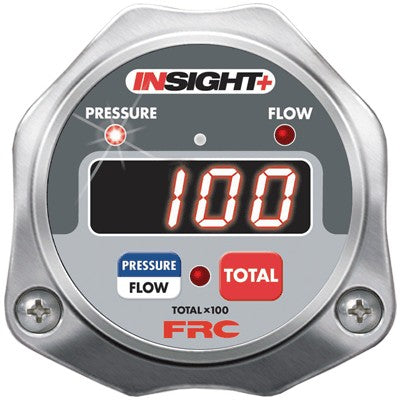

The Insight+ is an all digital pressure and flow indicator that displays the pressure and the flow rate at the discharge.

This digital pressure and flow indicator has a 4-digit LED display with daylight bright digits 0.56 inch high. The meter electronics are self contained and all program features are accessed via push buttons on the front of the display. The pressure/flow indicator is able to communicate with other display modules over a datalink. This technology allows for remote displays, the display of flow for multiple discharges (summing), and the totalization of flow for multiple discharges (accumulation). Pressure information is from a pressure sensor and flow rate is provided by a paddlewheel type flow sensor, both are mounted in the discharge. This information is processed and shown on the digital display.

STANDARD FEATURES

• • Displays GPM and PSI Directly
  • All Aluminum Housing

• • High and Low Flow Warnings
  • Automatically Adjusts LED Intensity for Day or Night Operation
  • FRC Datalink Interface for Primary/Remote Operation
  • Multiple Flow Rate Calibration Points
  • Programmable for PSI/Bar/kPa

• Paddlewheel Style Flow Sensor
• Internal Micro-Processor
• Simple Installation
• Color Coded Bezel available in NFPA color code
• Linearizer Feature - allows for calibration at multiple flow rates
• Safeflow Feature - preset excessive and inadequate flow warning settings

SPECIFICATIONS

• Supply Voltage: 9-30 VDC
• Supply Current: 1.5 Amps Max
• Display Dimensions: 3.25" wide, 3.25" high, 2" deep
• 2.75" panel cutout required

PLUMBING THE FLOW SENSOR

The proper installation of the flow sensor is essential. The final accuracy of the digital flow display will be based on the plumbing choices made at installation. Refer to the Flow Sensor page for more details.
