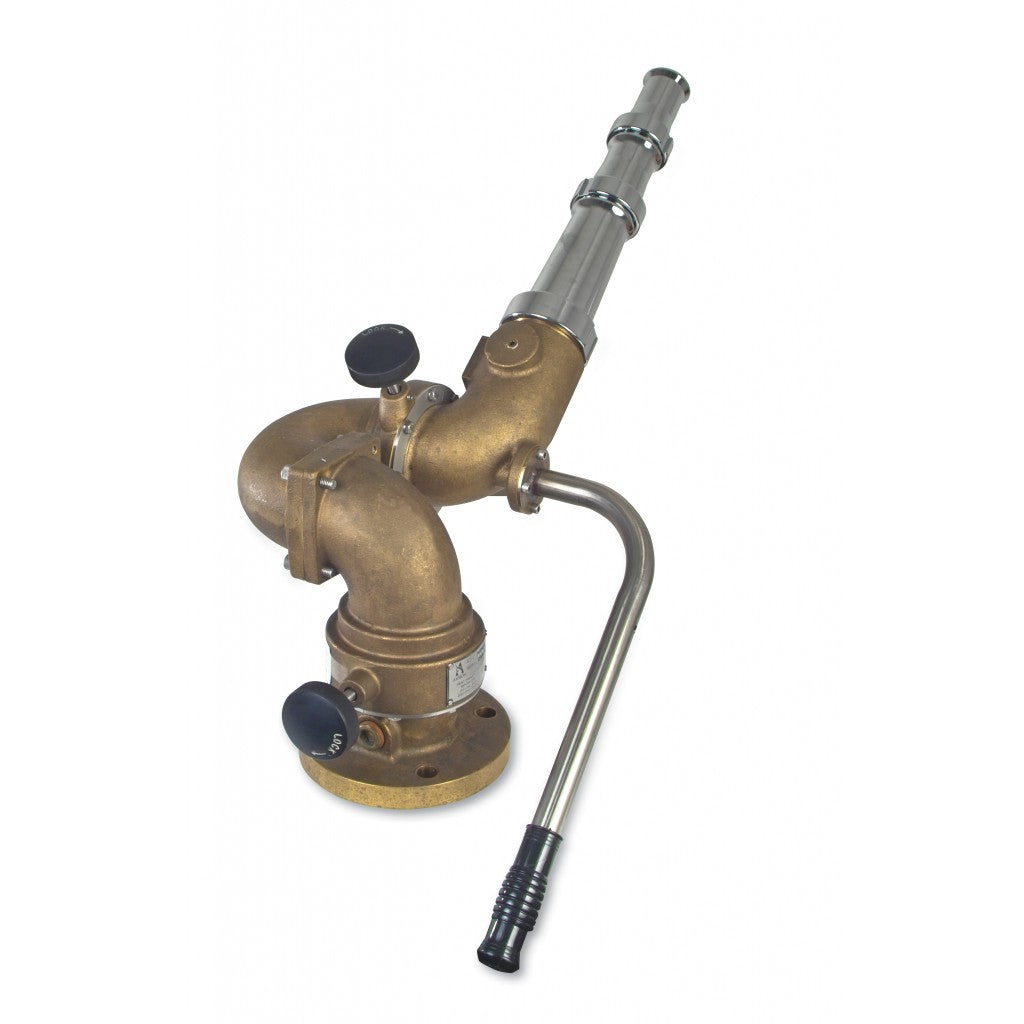

Omega SD Monitor 4" flange x 2.5" NH outlet, "As Pictured", 3524, 2498*

The Omega SD Severe Duty brass monitors utilize a unique ball bearing free joint design ideal for high usage applications.

Product_Sheet_3524

Features

Omega SD Severe-Duty Monitor

• Ideal for high usage applications - Mining - Tank Cleaning - Equipment Wash Down
• New longer tiller bar that can be mounted in 30 degree increments for increased control
• Extensive duty-cycle use
• Brass & stainless steel construction
• Cast in turning vanes
• Unique severe-duty joint design - Maximum Flow: 1250 gpm (4800 lpm) - Maximum Pressure: 200 psi (14 bar)
• Articulation: 360° Horizontal -90° to +90° Vertical - Friction Loss 12 psi @ 1000 gpm

Applications/Solutions

• Mining
