• Radiant Lux Max, 32,000 LUMENS
1 1

Fire Research

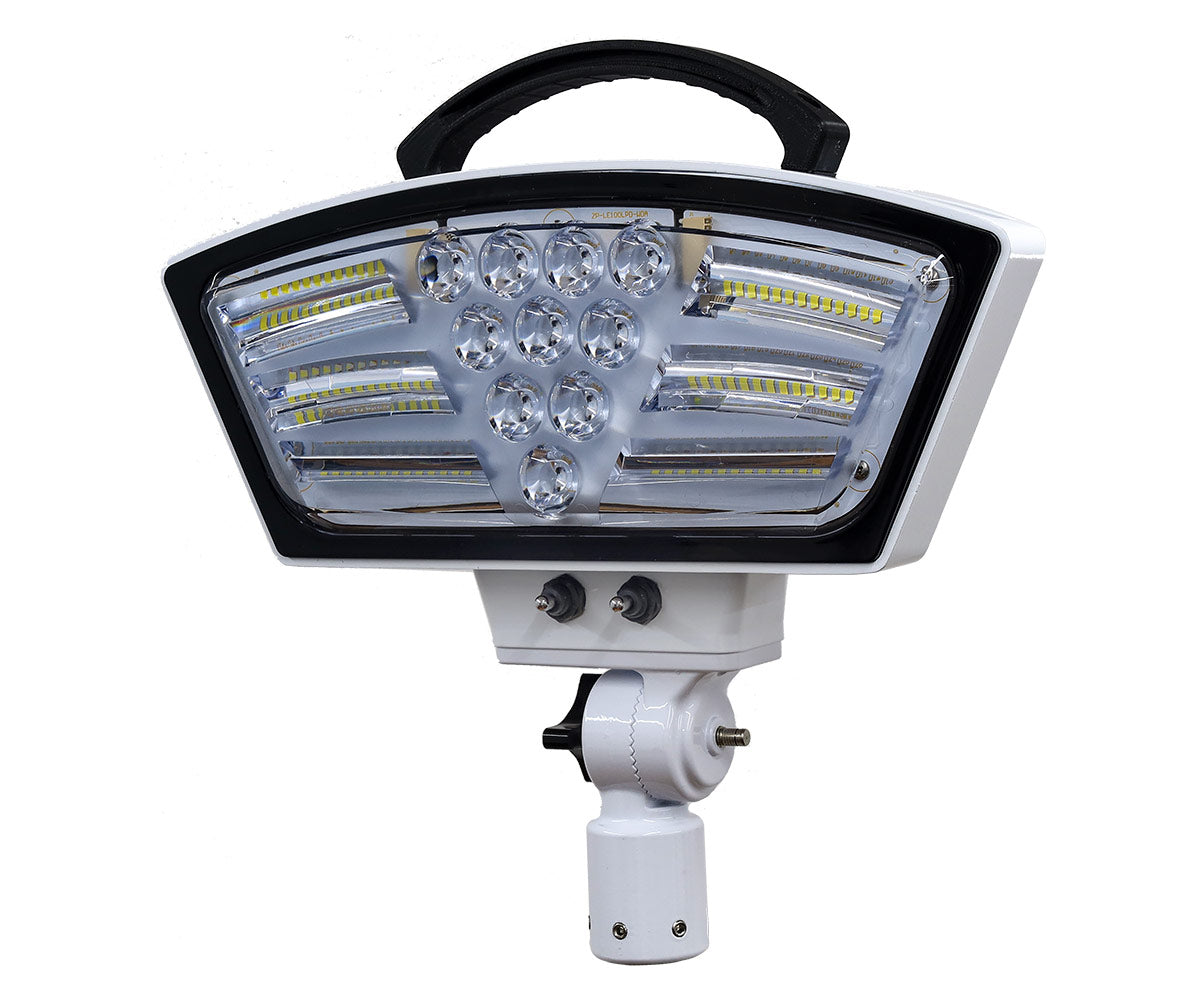

Radiant Lux Max, 32,000 LUMENS

Radiant Lux Max, 32,000 LUMENS

$2,885.62 USD
$2,885.62 USD
Sale Sold out
Extension Pole Style
Voltage needed

32,000 LUMENS OF BRIGHT LIGHT

Spec Sheet2023 FRC_Radiant_Max-Lux_

Radiant MAX LED lampheads output an impressive 32,000 lumens of super bright white light in a variety of models.

The Radiant MAX LED lamphead generates a uniform flood and spot combination light pattern. This light pattern provides enhanced work area visibility as well as illuminates objects at a farther distance

Radiant MAX series LED lampheads can be ordered without a mount. An adjustable mounting arm allows the lamphead to pivot up and down. The arm will have a pole adapter for installing the lamphead onto a lighting fixture. The three wires for power extend out the bottom of the mounting arm.

Radiant MAX series LED lampheads are available with all FRC pole, top and fixed mounting configurations.

Features

New optic design utilizing a spot and flood combination to deliver light most effectively

Mounting options include FRC poles, tripod, and fixed mounts

Available in both 12/24V DC and 120/240V AC

New robust arm and swivel

Standard switch box with increased functionality:

  • On/off switch
  • Control brightness
  • Control power consumption
  • Individually control:
    • Spot only for penetrating light
    • Flood only for ground illumination
    • Flood and spot for best overall scene coverage
  • Instant on at full intensity

Specifications

Dimensions 13.75" (349.25 mm) wide x 3.75 (95.25 mm) deep x 7.5 (190.5 mm) high
Weight
  • AC - with arm & swivel 8.9 lbs (4 kg)
  • DC - with arm & swivel 7.9 lbs (3.6 kg)
Lumens 32,000
Color Temperature 6500 Kelvin (Daylight)
Voltage 120/240VAC and 12/24VDC
LED Distribution 10 Spot and 78 Flood
Power 220W
Environment Protection IP68
Max. Operating Ambient Temperature 115° F (45° C) without any deration of light output.

Radiant Max 100% flood, 0% spot

Radiant Max 0% flood, 100% spot

Radiant Max flood + spot mix (default mode)

TWISTLOCK

TELESCOPIC POLES

FEATURES

  • All FRC telescopic poles are made of anodized aluminum for maintenance free performance and longer service life.

  • All extension poles rotate 360°

  • All extension poles have the exclusive TwistLock mechanism to secure the pole in position.
  • All standard extension poles have a four foot retractable cord extending from the bottom for direct wiring.
  • All outer tubes have a grooved surface
  • All pole mounted lampheads have a pivot in the mounting arm with a knurled knob to adjust the angle of elevation.

PATENTED SAFETY TWISTLOCK

  • Easy to use and can be operated in either direction.
  • It can not jam or be over tightened.
  • There is no protruding handle to snag gear or straps on.
  • Knurled surface for a firm grip.
  • The locking mechanism has no metal to metal contact. This spares the anodized aluminum poles from unnecessary wear and tear.

SIDE MOUNT BRACKETS

Supplied as Pair

Side Mount Bracket Dimensions

All Dimensions in Inches

GROOVED GRAB HANDLE

  • FRC’s exclusive GRAB-HANDLE is a standard feature on all 530, 540 and 542 telescopic poles.

  • It provides a secure grip when
  • wearing heavy gloves.
  • The grab handle qualifies as an NFPA compliant handrail.

Technical Specifications

TWIST-LOCK TOP MOUNT POLES

TWIST-LOCK SIDE MOUNT POLES

PORTABLE BASE

Model KR-700

  • Grab-and-run versability

  • Cast aluminum portable base

  • Only available on AC light fixtures

View full details
