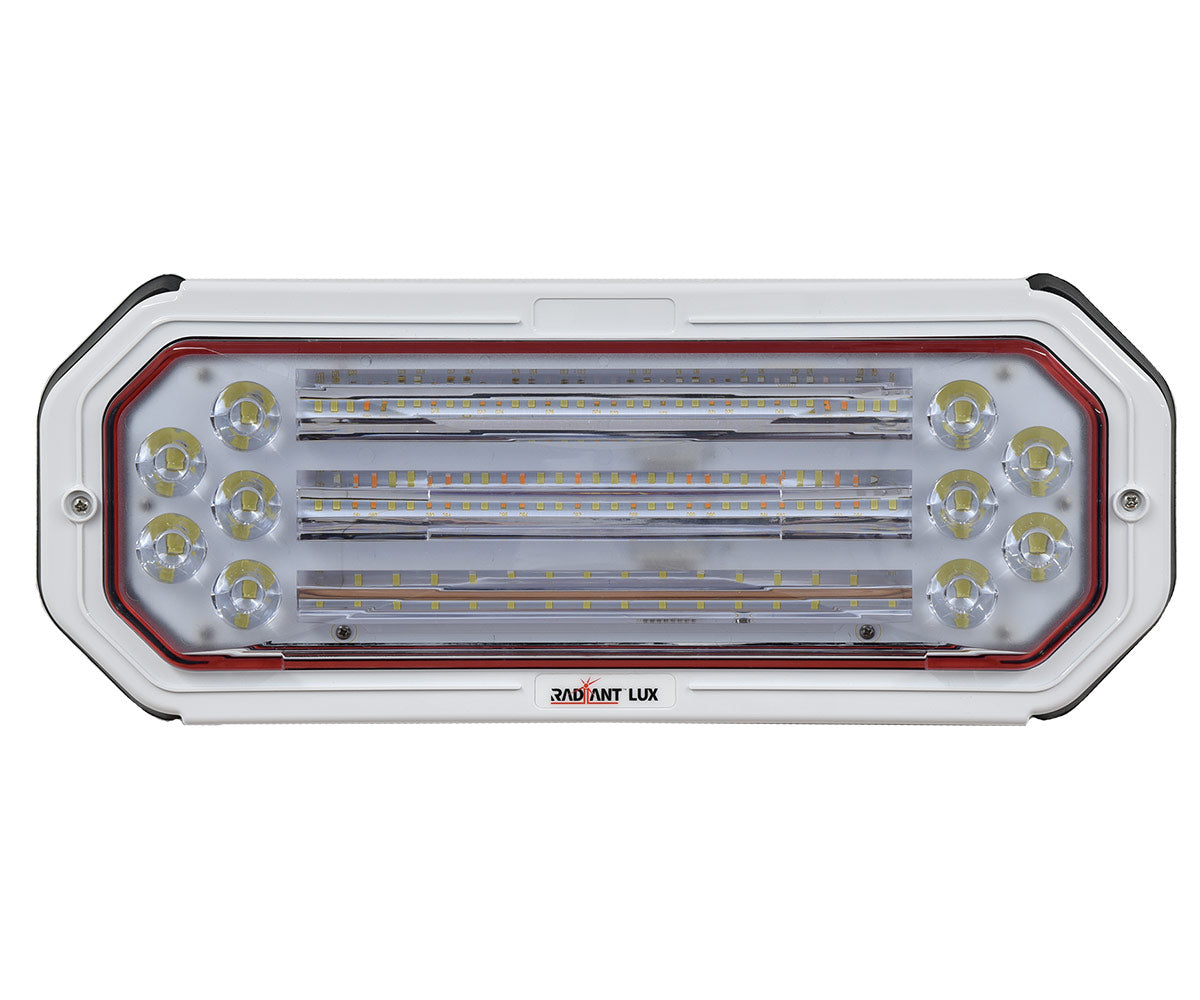

The Radiant LUX LED Surface Mount light delivers an ultra bright 22,000 lumens making it the brightest surface mount light on the market. Radiant LUX utilizes the highest technological components and engineered optic design to direct light from each ultra-bright LED more precisely and efficiently. This places the light more evenly and where you need it increasing Scene safety with less power.
Radiant LUX can deliver full light intensity and run for hours with no light degradation thanks to it's all-new power supply and revolutionary heat sink designs. Controllable with traditional switching methods or optional CANbus for enhanced operations.
Features
Sleek rugged design available with a black, chrome, or white bezel
Standard switch control or an optional CANbus for increased functionality
CANbus control:
- Dimmable to tune brightness or control power consumption
- Spot and flood sections can be controlled individually
- Isolate light sections and control for specific applications:
- Spot only for penetrating light
- Flood only for ground lighting
- Both for maximum illumination
- Functions mix and match
Specifications
| Dimensions |
|
| Weight |
|
| Lumens | 22,000 |
| Color Temperature | 6500 Kelvin (Daylight) |
| LED Distribution | 10 Spot LEDs and 56 Flood LEDs |
| Voltage | 12/24V DC (10A Max./5A Max.) or 120/240V AC (1.0A Max/0.5A Max.) |
| Power | 150W |
| Environment Protection | IP68 |
| Max. Operating Ambient Temperature | 115° F (45°C) without any deration of light output. |
| Controller | Available with or without CANBUS |
FRC's Innovative Asymmetrical Pattern
Engineered to illuminate work area while providing extreme pattern reach
