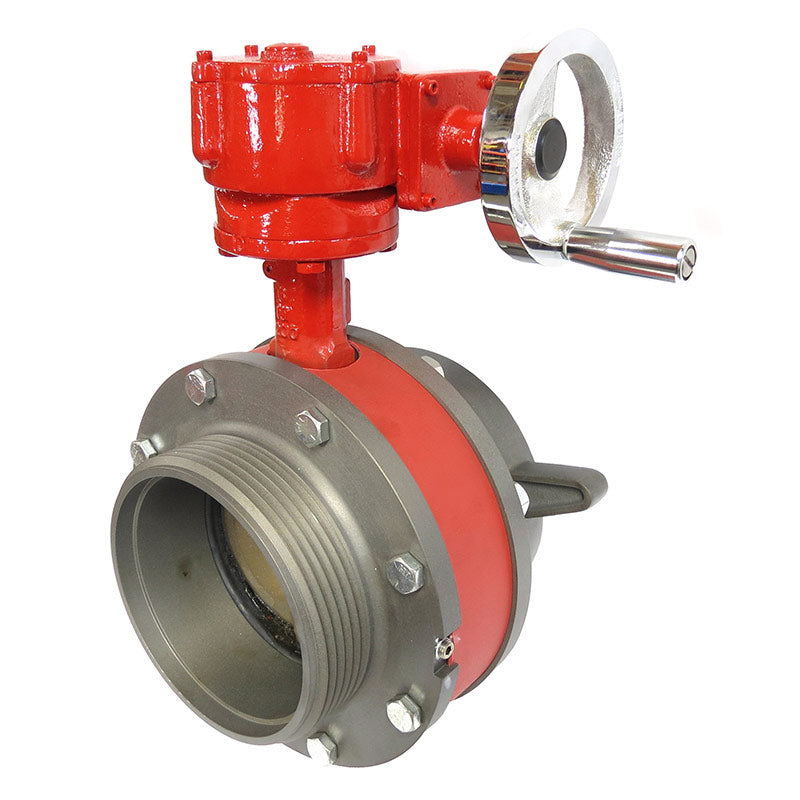

Suction Intake Valves 5" and 6",2850 and 2860***

Intake 2860

Elkhart Brass offers a special cast iron, butterfly valve with hard coated aluminum end caps for use as a suction intake in apparatus applications.

• Aluminum/bronze disc

  Reinforced EPDM seat (bi-directional)

  Two-piece stainless steel stem

  Rated to 200 psi (13 BAR)

  Finished in red urethane enamel with polished chrome handwheel and hard anodized end caps

  Gear operated version complies with NFPA 1900

  Model 2850

  • 5″ Waterway size
  • Gear operation style standard, Lever/Trigger optional
  • Optional strainer available on some male adapters
  • Optional air bleeder valve on male adapters

  Available Adapters / End Caps:

  • 5″ Rigid NPT female
  • 6″ Rigid NPT female
  • 4.5″ Rigid NHT female
  • 5″ Rigid NHT female
  • 4″ Storz
  • 5″ Storz
  • 4″ NHT female swivel inlet (long handle or rocker lug)
  • 4.5″ NHT female swivel inlet (long handle or rocker lug)
  • 5″ NHT female swivel inlet (long handle or rocker lug)
  • 4″ NHT male
  • 4.5″ NHT male
  • 5″ NHT male

  Model 2860

  • 6″ Waterway size
  • Gear operation style standard, Lever/Trigger optional
  • Optional strainer available on some male adapters
  • Optional air bleeder valve on male adapters

  Available Adapters / End Caps:

  • 6″ Rigid NPT female
  • 6″ Rigid NHT female
  • 5″ NHT female swivel inlet (long handle or rocker lug)
  • 6″ NHT female swivel inlet (long handle or rocker lug)
  • 5″ NHT male
  • 6″ NHT male
